CONNECTING THE D-RGB LED STRIP

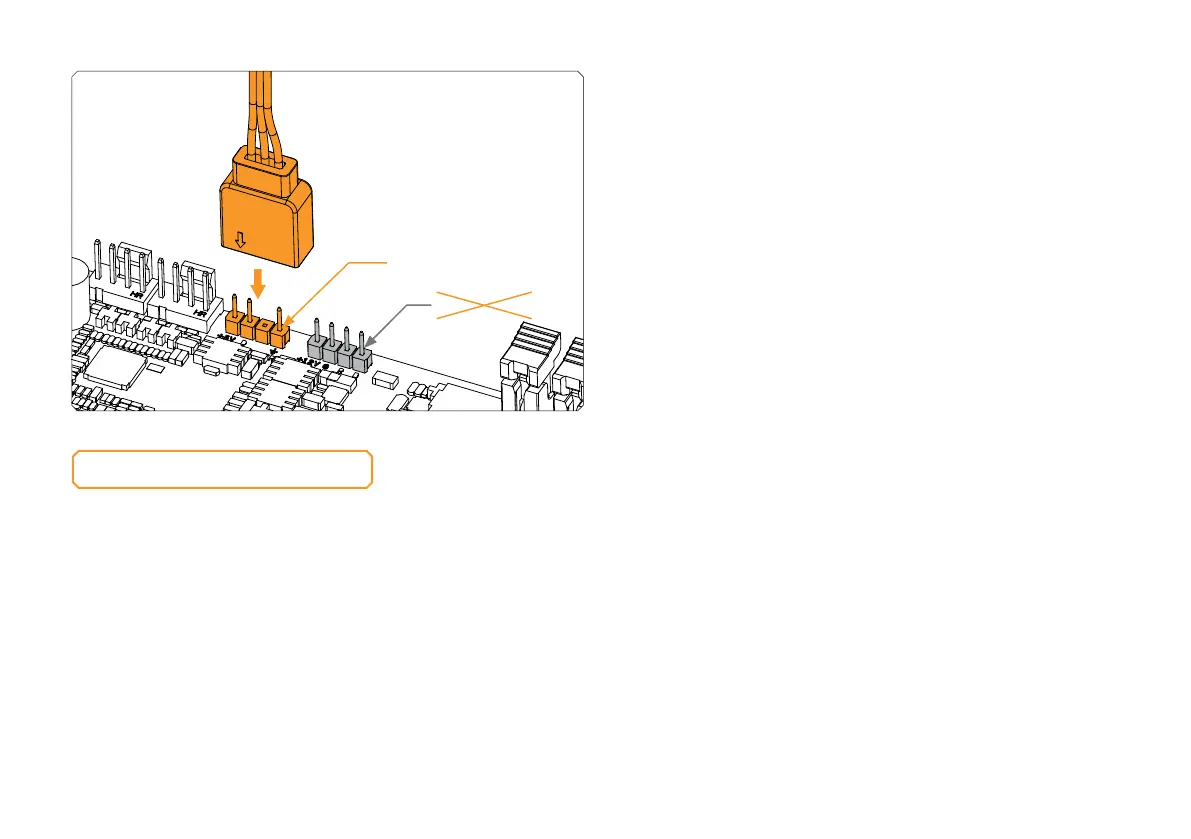

Plug the 3-pin connector from the Monoblock’s D-RGB LED light to
the D-RGB Header on the motherboard. The LEDs will work if the pin
layout on the header is as follows: +5V, Data, Empty, Ground.
D-RGB Header
RGB Header
To make sure the installation of EK components was successful, we
recommend you perform a 24-hour leak test.
When your loop is complete and filled with coolant, connect the
pump to a PSU outside of your system. Do not connect power to
any of the other components. Turn on the PSU and let the pump
run continuously.
Inspect all parts of the loop, and in case the coolant leaks, fix the
issue and repeat the testing process. Ensure that all hardware is dry
before the system is powered on, to prevent any damage.
TESTING THE LOOP
