ekwb Vector2 - Preparing the Water Block for Installation

- 8 -

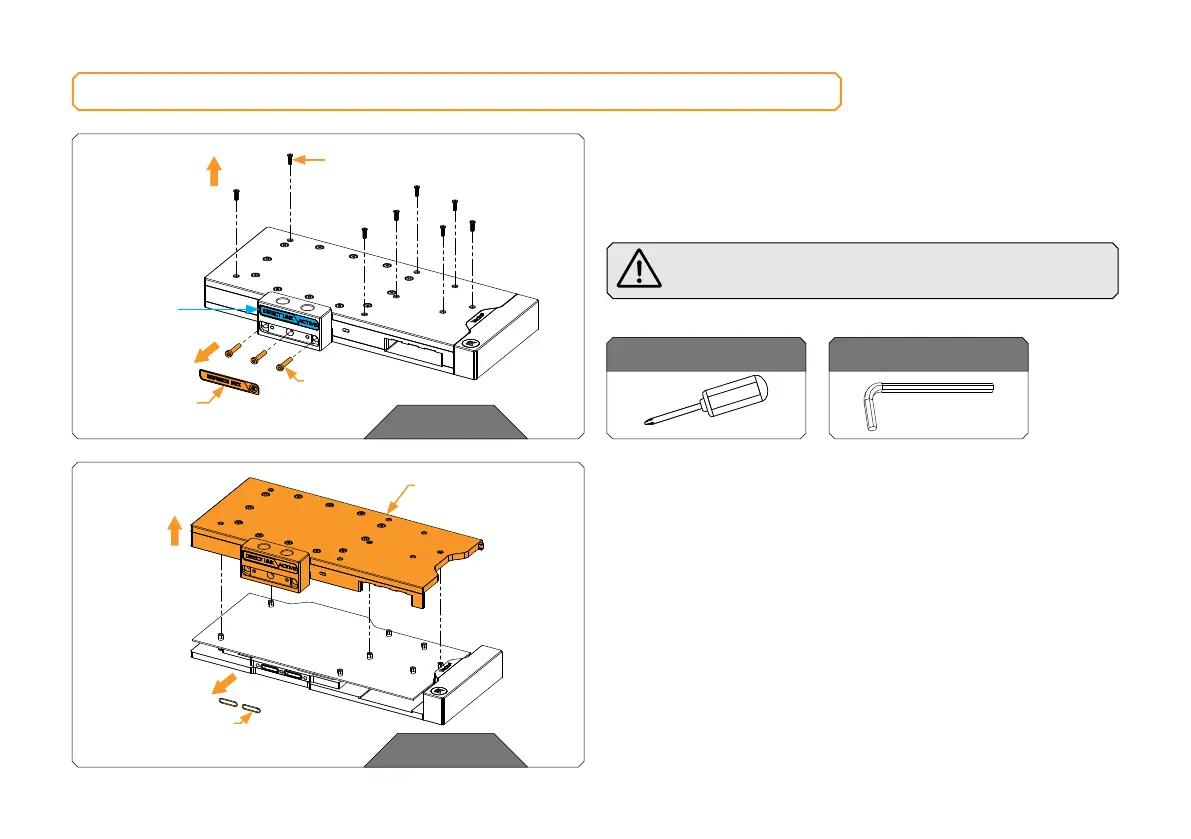

PREPARING THE WATER BLOCK FOR INSTALLATION
STEP 1
First, remove the terminal badge which is attached to the
terminal with two magnets. Under the badge, unscrew three (3)
screws M4 x 20 DIN7984. Additional eight (8) screws M3 x 10 AX1
need to be removed (as shown in the image).
DO NOT REMOVE THE UPPER TERMINAL BADGE!
STEP 1
STEP 2
Carefully remove the complete active backplate with the terminal.
Additional two (2) O-rings 14 x 1 EPDM50 need to be removed.
STEP 2
For this step, you will need:
Phillips Head Screwdriver
UPPER
TERMINAL
BADGE
TERMINAL
BADGE
TERMINAL
O-RING 14 x 1 mm
M4 x 20 DIN7984
SCREW
M3 x 10 AX1
SCREW
DO NOT
REMOVE
THE UPPER
TERMINAL
BADGE!
Allen Key 2.5mm
ACTIVE
BACK PL ATE
