ekwb Vector2 - Attaching the Active Backplate

- 13 -
Thermal Pad - 120 x 16 x 1.0 mm
F1
Thermal Pad - 120 x 16 x 2.0 mm
F2
STEP 1
3090:
3080/ 3080Ti:
ATTACHING THE ACTIVE BACKPLATE
STEP 1

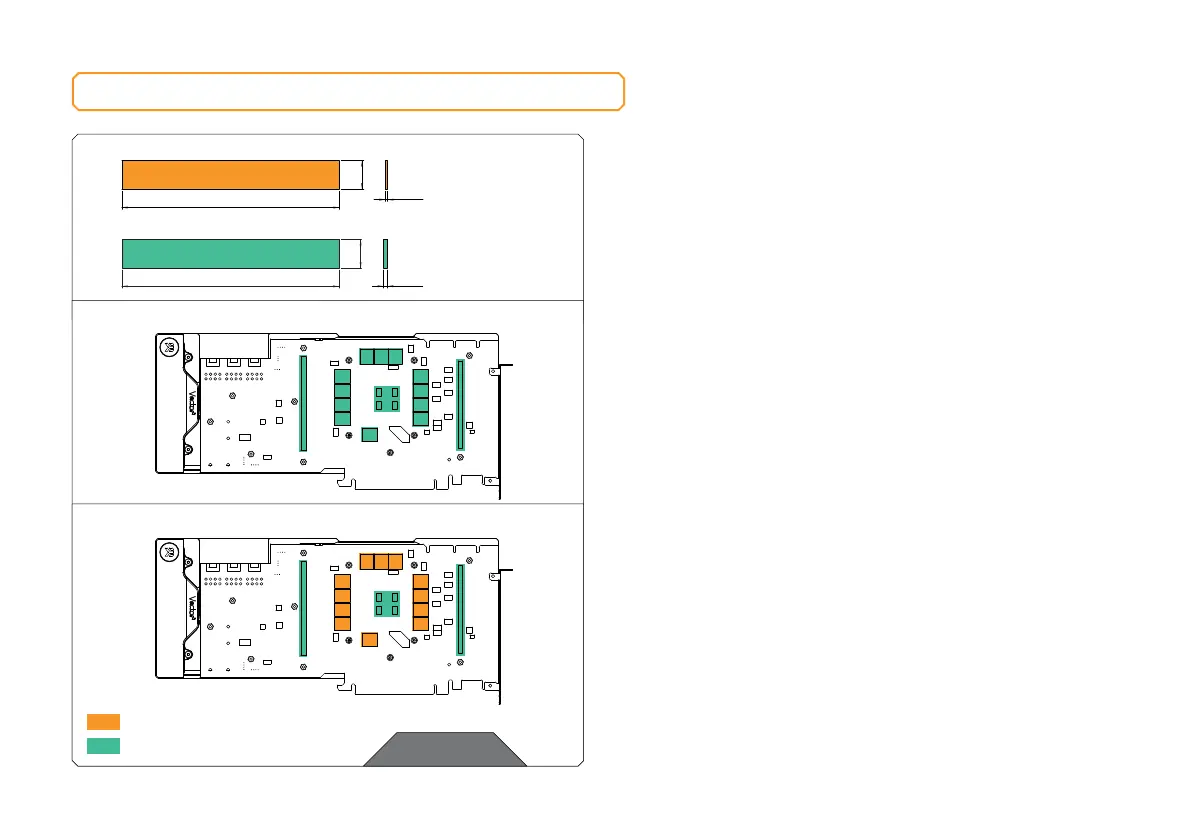

After attaching the water block, a few more thermal pads need to be
placed on the backside of the GPU PCB. Once cut to size, thermal
pads should be placed on the PCB, as illustrated. EK made sure to
provide you with more than an adequate quantity of thermal pads to
complete this Step.
Replacement thermal pads:
Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732
Thermal Pad F 2.0 mm – (120 x 16 mm) EAN: 3830046996756
Thermal Pad F – 1.0 mm (120 x 16 mm)
120 mm
16 mm
1 mm
Thermal Pad F – 2.0 mm (120 x 16 mm)
2 mm
120 mm
16 mm
F2
F1
F2
F1
F2
F1
F2
F1
F2
F2
F2
F2
F2
F2
