elco Minifill-E - Internal Components and Short Parts List; Internal Components

16

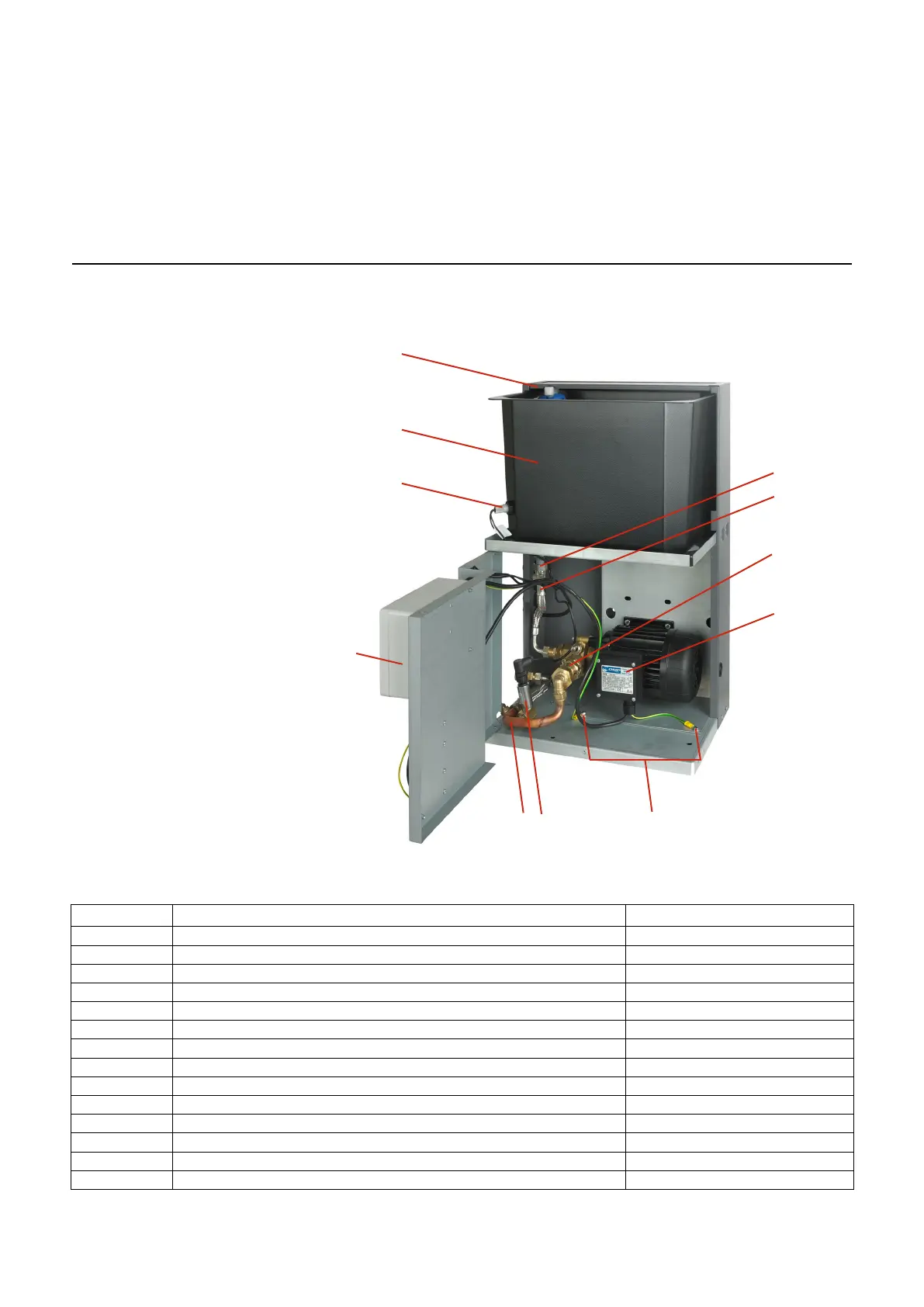

14.0 Internal Components & Short Parts List
Internal Components & Short Parts List
Note: The pump assembly (item 4) is
mounted onto a removable tray.
To remove the assembly, disconnect
all of the water connections, remove
the two M10 bolts, slightly lift the front
of the pump tray and slide the tray
forward, this will dis-engage the three
location posts at the top of the tray.
The tray and pump assembly can then
be removed from the appliance.
10
9
8
7
2
11
3
5 & 6
2x M10 Bolts4 1
Item No. Description Part No
1 Pressure transducer Z870012422
2 Pump assembly complete (incl fittings) Z870005665
3 Pump inlet isolation valve & flexible pipe assembly Z870020995
4 Drain valve Z870020990
5 Pump outlet isolation valve & flexible pipe assembly Z870020991
6 Outlet pipe assembly Z870016132
7 Control Panel (complete) Z870008316
- Main control pcb Z870006913
- LCD display pcbs Z870006914
8 Water level switch Z870011722
9 Water tank Z870073261
10 Ball float valve Z870020988
11 Pump non-return valve cartridge Z870071455
- Casing cover Z870058689
