elco Minifill-E - Technical Data and Dimensions; Dimensions

5
3.0 Technical Data & Dimensions
Technical Data & Dimensions
278
Mains water
inlet ½“ BSP
Overflow plastic pipe
32mm dia. bore
Wall fixing
bracket
Cable entry
- alarms
Cable entry
- mains
Outlet 15mm
compression
Side View (Left Hand side) Front View
70
382
151 80
6.6dia
75
40
40
150
180
210
240
486
557
600
125

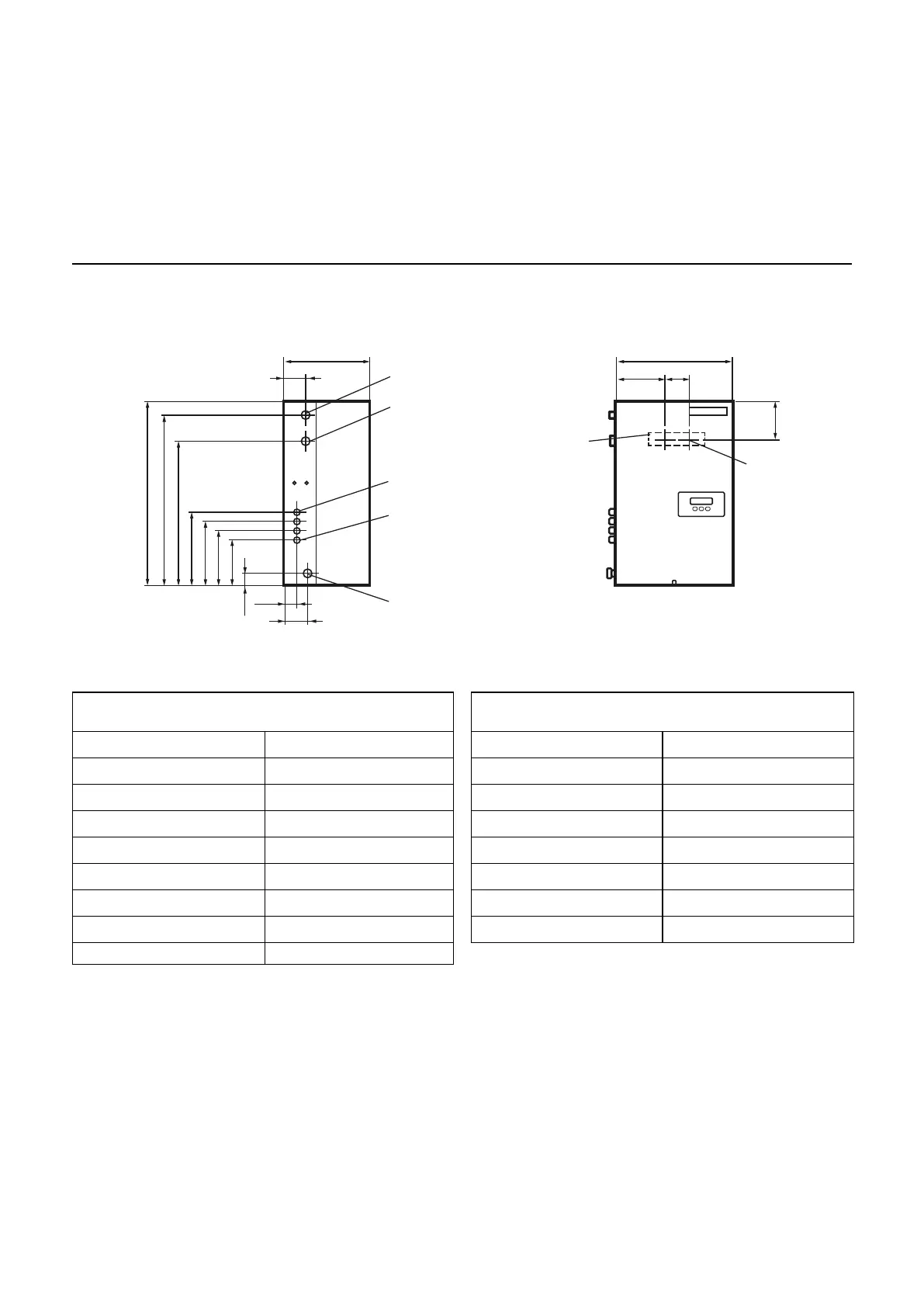

Figure 3 - Dimensions
Technical Data
Cold Fill Pressure Min 0.8 bar / Max 3.0 bar
Minimum MCW supply
8 l/min
Power supply (230V 50Hz)
10.0 Amps
Start current
9.0 Amps
Run current
2.8 Amps
Air gap type
AF
Break tank capacity
7.6 litres
Weight - empty
22.0 kg
Weight - full
30.0 kg
Connections
MCW inlet 1/2” BSP Male
Waste water overflow 32mm plastic
System Water outlet 15mm comp
Mains electrical gland 1*10mm
Electrical cable glands 3*10mm
Noise level @1m 58 dBA
Temperature rating 4-65°C
Housing classification IP65
