Elcometer 136 User Manual

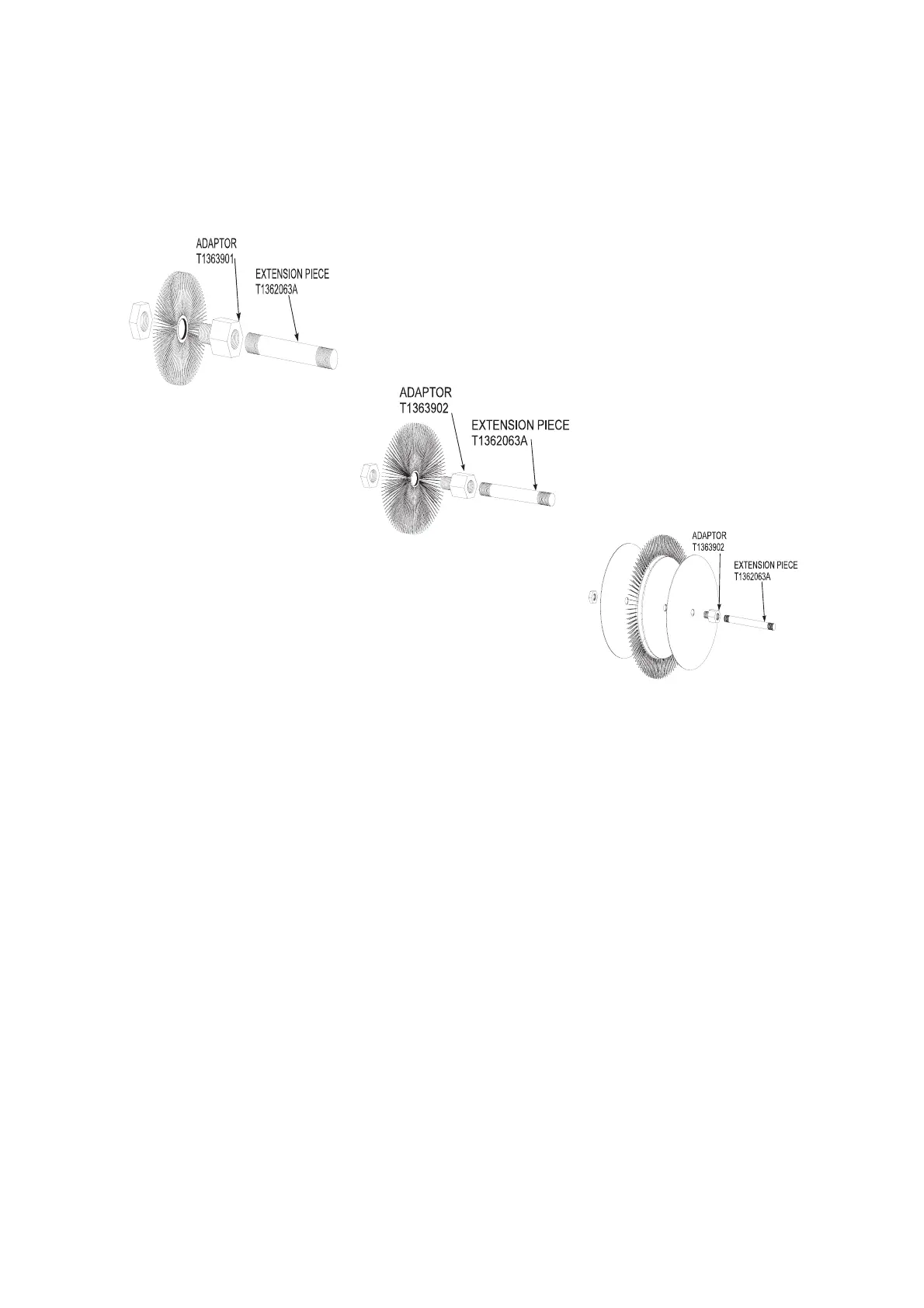

9.2 Circular Brush Probes.
Circular brush probes are used to test internal pipe surfaces.
They are available in 12 sizes and include an adaptor and a
250mm extension piece as standard.
Pipe Diameter Fig. Assy. Part Spare Brush Note
mm (ins) Numbers Part Numbers
38(1.5) 1 T1363907A T1363766 A
51(2.0) 1 T1363907B T1363767 A
64(2.5) 2 T1363907C T1363768 B
76(3.0) 2 T1363907D T1363769 B
89(3.5) 2 T1363907E T1363770 B
102(4.0) 2 T1363907F T1363771 B
114(4.5) 2 T1363907G T1363772 B
127(5.0) 2 T1363907H T1363773 B
152(6.0) 2 T1363907I T1363774 B
203(8.0) 3 T1363907J T1363775 C
254(10.0) 3 T1363907K T1363776 C
305(12.0) 3 T1363907L T1363777 C
Note: For larger diameters use a right angle brush probe.
20
