15 APPENDIX 2: ELCOMASTER COLLECT DESIGN
5 Select the relevant connection
method.

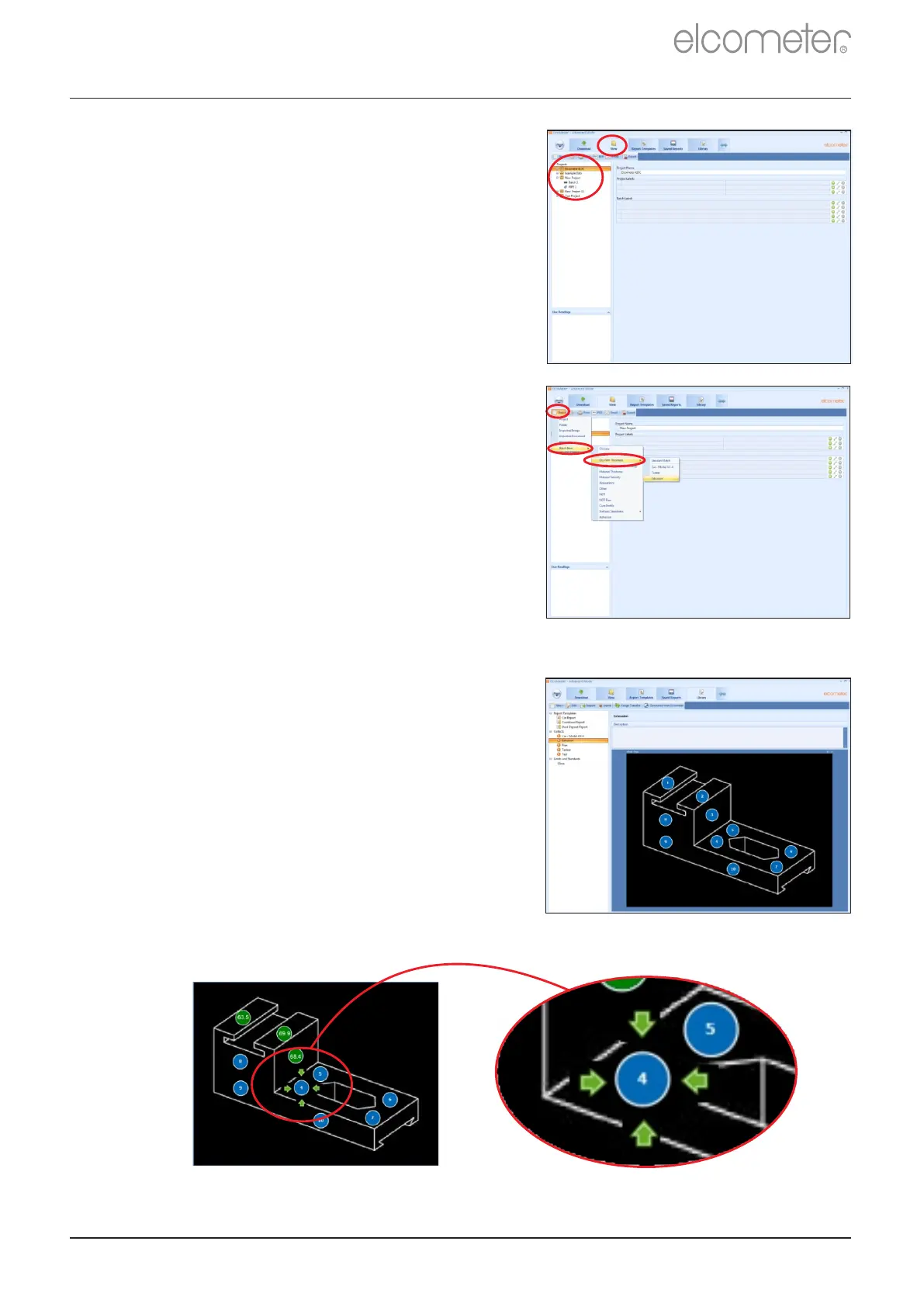

1 Click on the ‘View’ tab and select a
folder or project.
2 Click on ‘New’à’Batch Item’à’Dry
Film Thickness’ and select the
required Collect Design. A new
batch will be created. Unlike
standard batches it will have an
additional tab with the same name
as the Collect Design, click on this
to show your design.
3 To begin collection, click on
‘Connect Gauge’ in the ‘Live
Readings’ window.
To use a ‘Collect Design’:
†
4 Select a gauge from the list .
®
ElcoMaster will link the selected
gauge and, when ready, display the
gauge information within the Live
Readings window.
Once connected, green arrows will
flash around the first ‘reading’ circle to
taken, the ‘reading’ circle will change to
measure. When a measurement is
‡
show the measured value , and the
reading.
green arrows will move to the next
‡
The ‘reading circle’ will be green if the measurement is within set limits or no limits have been set and red,
if outside set limits.
† ®
The gauge must be connected to ElcoMaster before it will appear in the list.
