The ‘Collect Design’ function in
®
ElcoMaster allows users to set up a
collection template to guide Inspectors
where, and in which order, readings
should be taken.
Ÿ Adds the required image to collect readings against;
Ÿ Can request a prompt to begin the next set of readings or begin
automatically;
Ÿ Choose to create a new batch for each set of readings or create a
single batch with multiple readings.
®

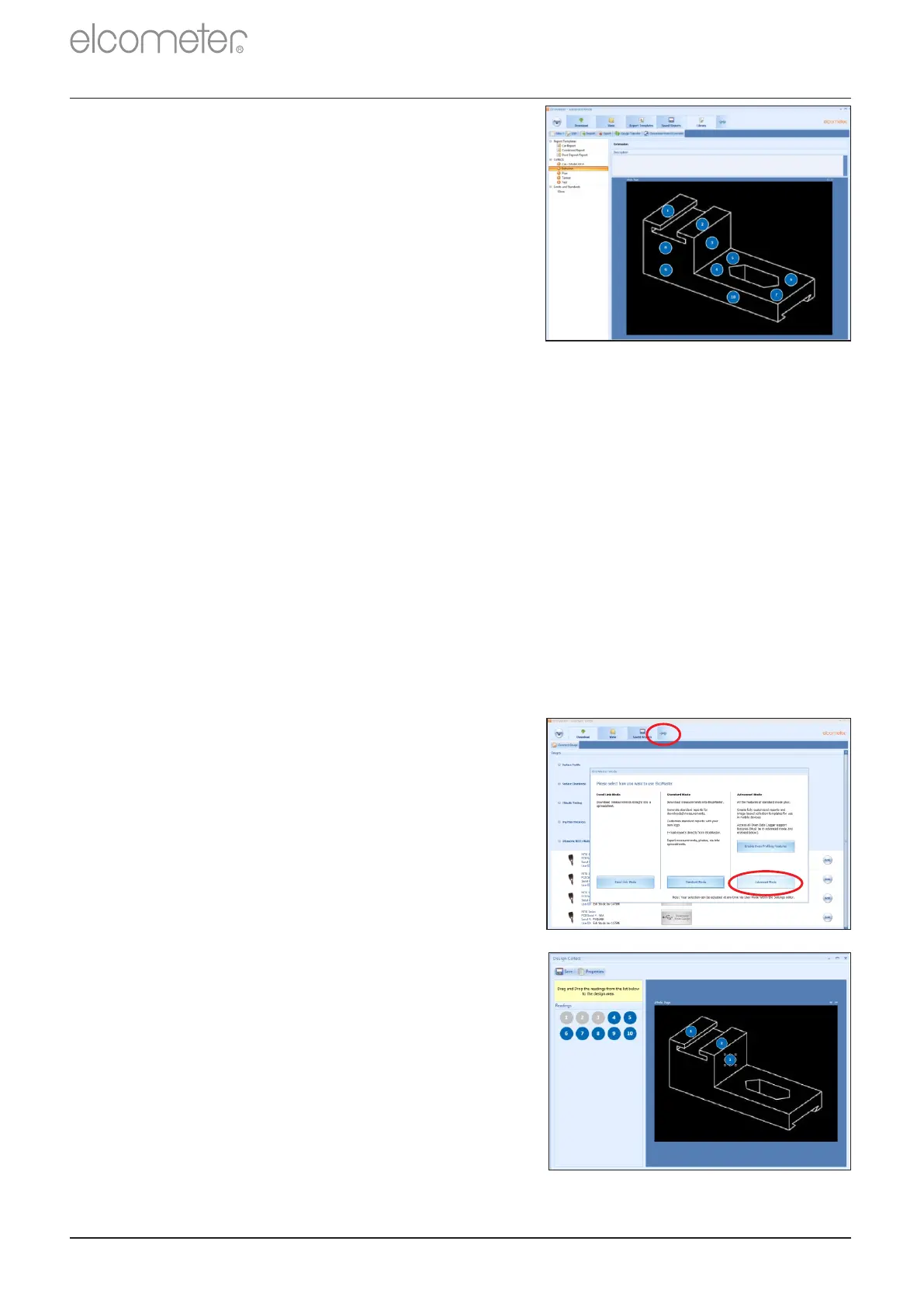

1 Switch ElcoMaster to ‘Advanced
Mode’ by clicking the expand arrow
and selecting ‘Advanced Mode’.
To set up a new ‘Collect Design’:
2 Click on ‘Library’à’New’à’Collect
Design’.
3 Follow the on-screen prompts and
click ‘ Finish’ to begin the design.
Ÿ Enters any relevant limits;
4 To indicate on the image where
each reading is to be taken and in
which order, simply click and hold
each 'reading' circle in turn, drag
onto the image and adjust the size
accordingly.
This image can be used as a collection
®
guide in ElcoMaster on a PC or can be
transferred to a mobile device using the
®
ElcoMaster Mobile App.
When creating a new ‘Collect Design’ the user:
Ÿ Specifies the number of readings to be taken;
5 When complete click ‘Save’ and
click the 'x' button in the top right to
close the design window.
®
15 APPENDIX 2: ELCOMASTER COLLECT DESIGN
