Side Cross Section View
Overhead Cross Section View
Nut
1/4-Inch Flat Bar
With Tapped Holes
Threaded Rod
Washer
Nut
Scoreboard Back
Scoreboard
Face
Aluminum Frame
Extrusion
1/4-Inch Flat Bar
With Tapped Holes
4-Inch
Steel Post
Steel Angle
Bracket
4-Inch Steel Post
Washer
Steel Angle
Bracket
Threaded Rod
Scoreboard
Back
Extrusion Lip

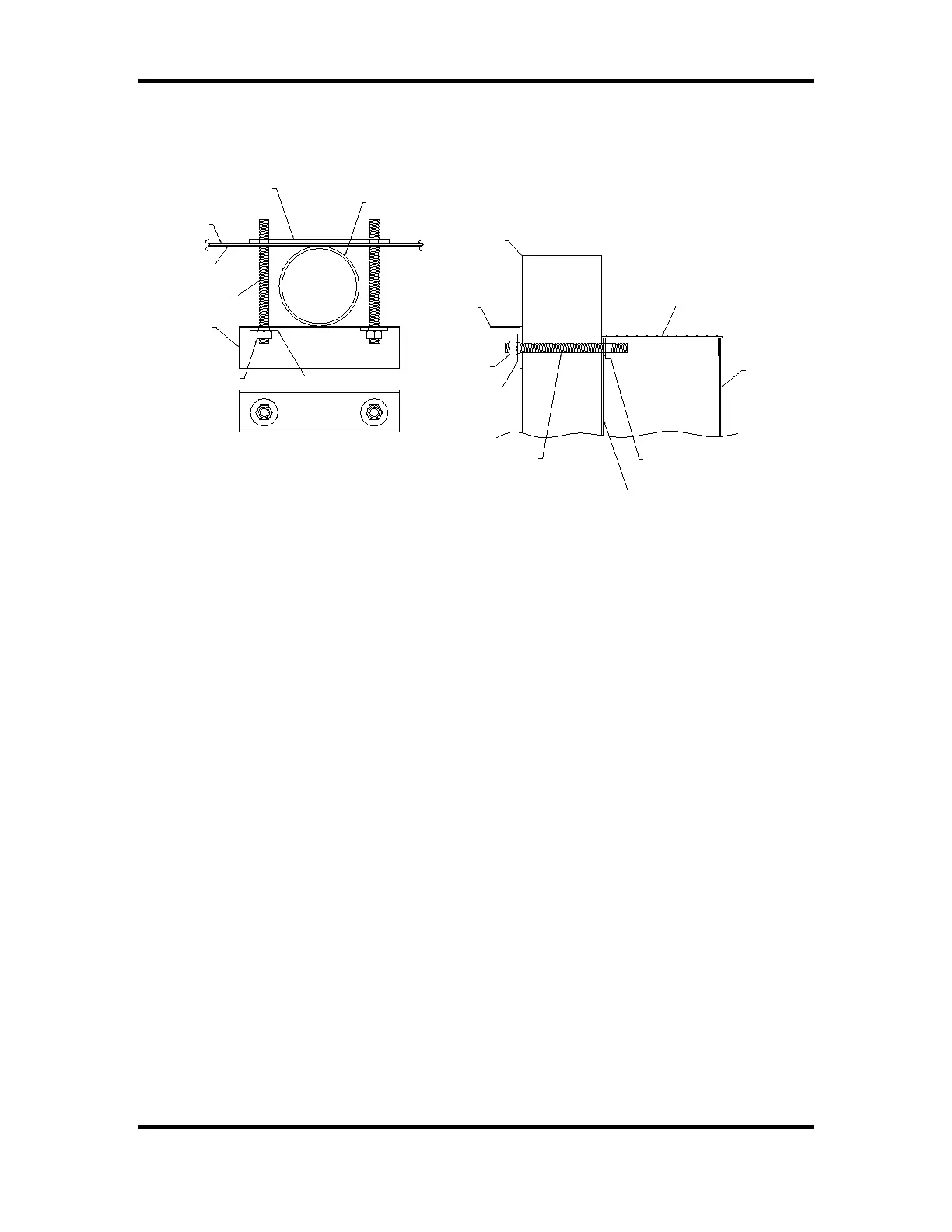

Figure 5 Standard Mounting Method
The following steps describe how to mount the scoreboard on the posts:
1. Place the scoreboard cabinet against the posts on the ground. Make sure the mounting
points are aligned with the posts.
2. Screw the threaded rods into the tapped holes in the scoreboard.
3. Place a steel angle bracket over the threaded rods at mounting point #1.
4. Place a washer over each threaded rod.
5. Screw the nuts onto the threaded rods so that the bracket is loosely held in place.
6. Repeat steps 3 - 6 at the other mounting points.
7. Raise the scoreboard into place and tighten the nuts to clamp the scoreboard in place
on the posts.
Note: Be sure to leave enough space on the posts above the scoreboard for the optional
top sponsor panel, if purchased.
