1360 Page 7
Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096
Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com
5/8" X 8' COPPER
CLAD GROUND ROD
5/8" BRASS TEAR
DROP CONNECTOR
#6 BARE COPPER
GROUND WIRE
POWER
DISCONNECT
POWER CABLE
IN 3/4" CONDUIT
10'
CONTROL CABLE
IN 3/4" CONDUIT
TO POWER SOURCE
TO CONTROL LOCATION
5'
10'
7'

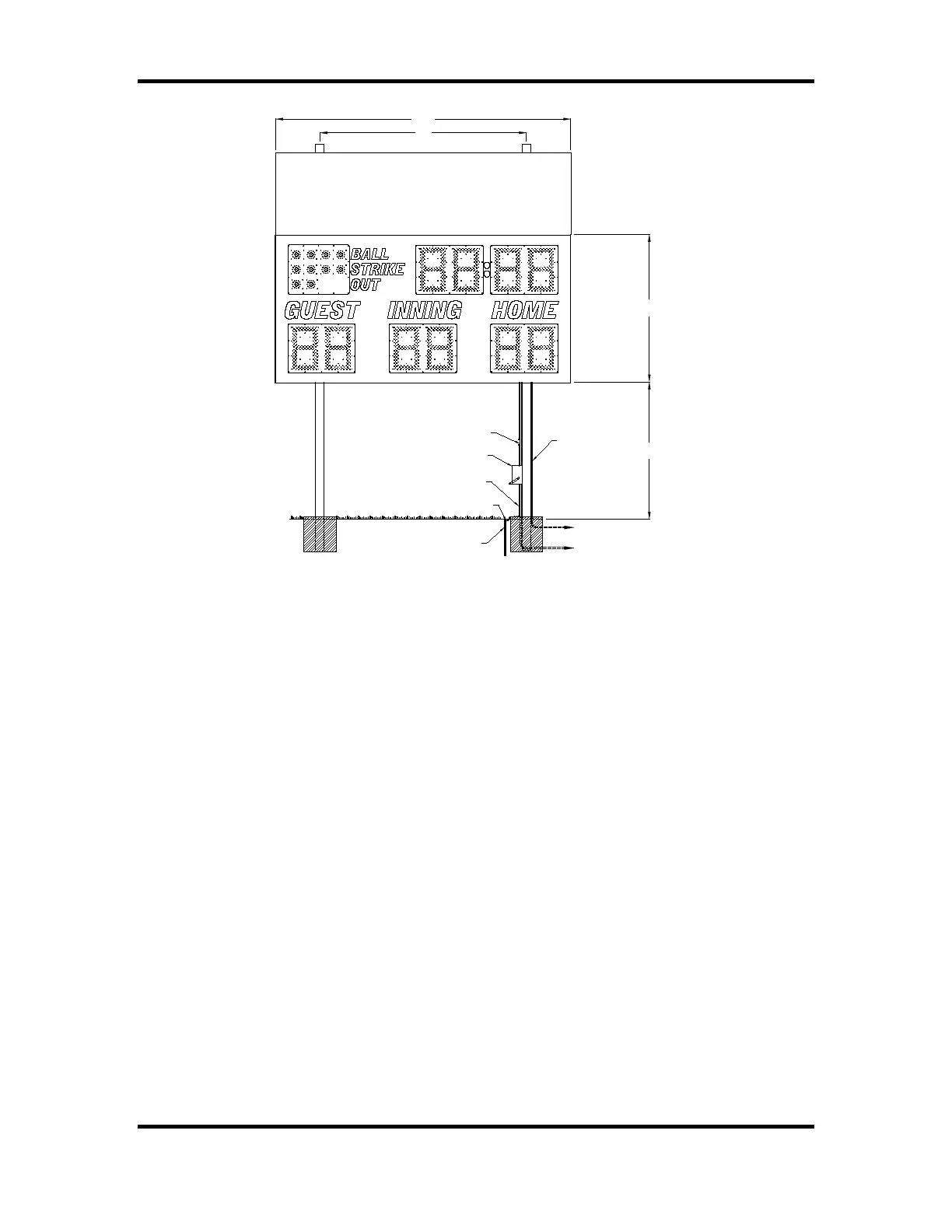

Figure 3 1360 with Top Sponsor Panel Post Spacing
Mounting The Scoreboard
The scoreboard is attached to the posts at four points. Figure 4 shows the location of the
mounting points on the rear of the scoreboard.
