POWER
DISCONNECT
POWER CABLE
IN 3/4" CONDUIT
5/8" BRASS TEAR
DROP CONNECTOR
#6 BARE COPPER
GROUND WIRE
5/8" X 8' COPPER
CLAD GROUND ROD
TO POWER SOURCE
TO CONTROL LOCATION
10'
CONTROL CABLE
IN 3/4" CONDUIT
5'
11'

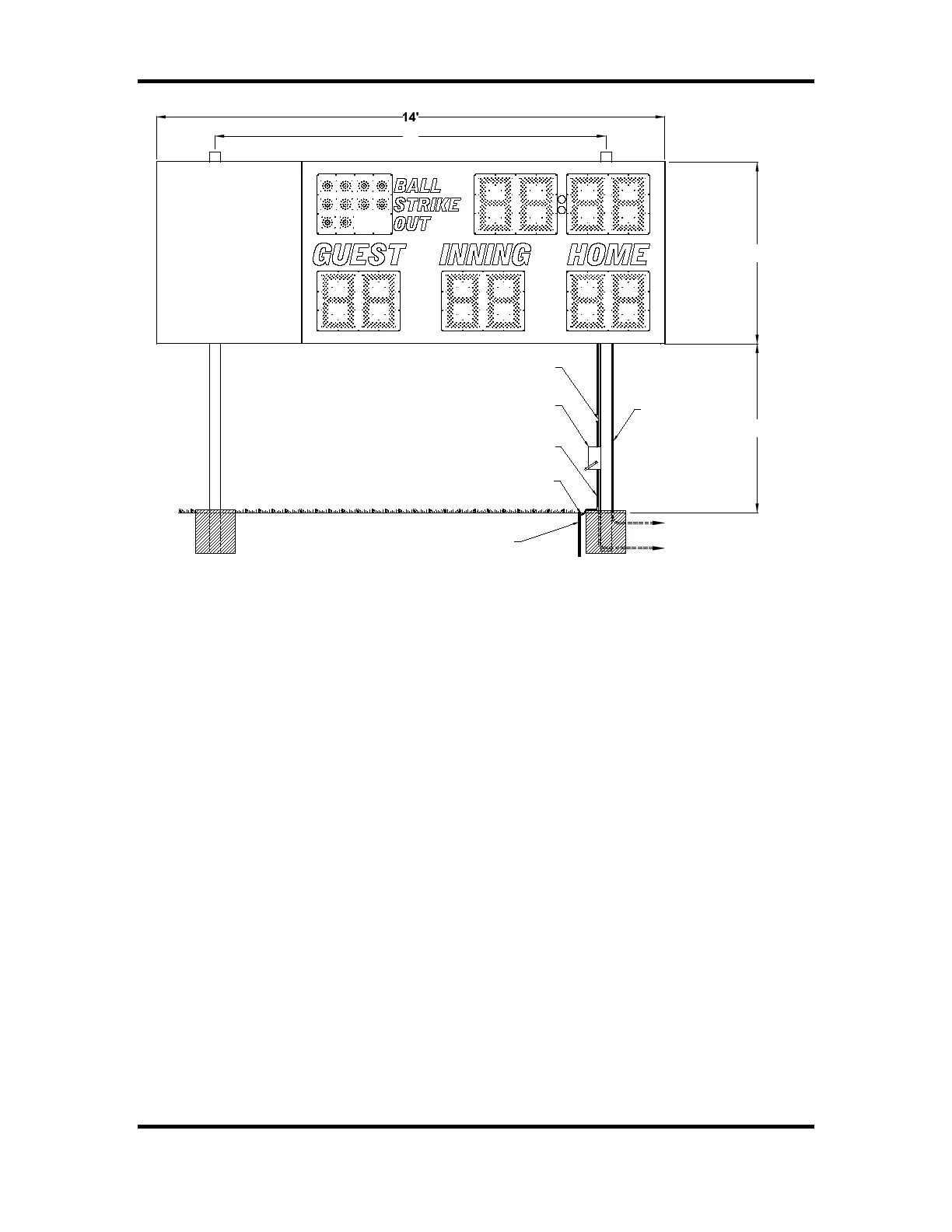

Figure 2 1360 with Side Sponsor Panel Post Spacing
Figure 3 shows the spacing of the posts for a 1360 scoreboard with an optional top
sponsor panel. This panel is a separate unit that mounts on the same posts as the
scoreboard.
