7'
5'
TO CONTROL LOCATION
TO POWER SOURCE
CONTROL CABLE
IN 3/4" CONDUIT
10'
POWER CABLE
IN 3/4" CONDUIT
POWER
DISCONNECT
#6 BARE COPPER
GROUND WIRE
5/8" BRASS TEAR
DROP CONNECTOR
5/8" X 8' COPPER
CLAD GROUND ROD

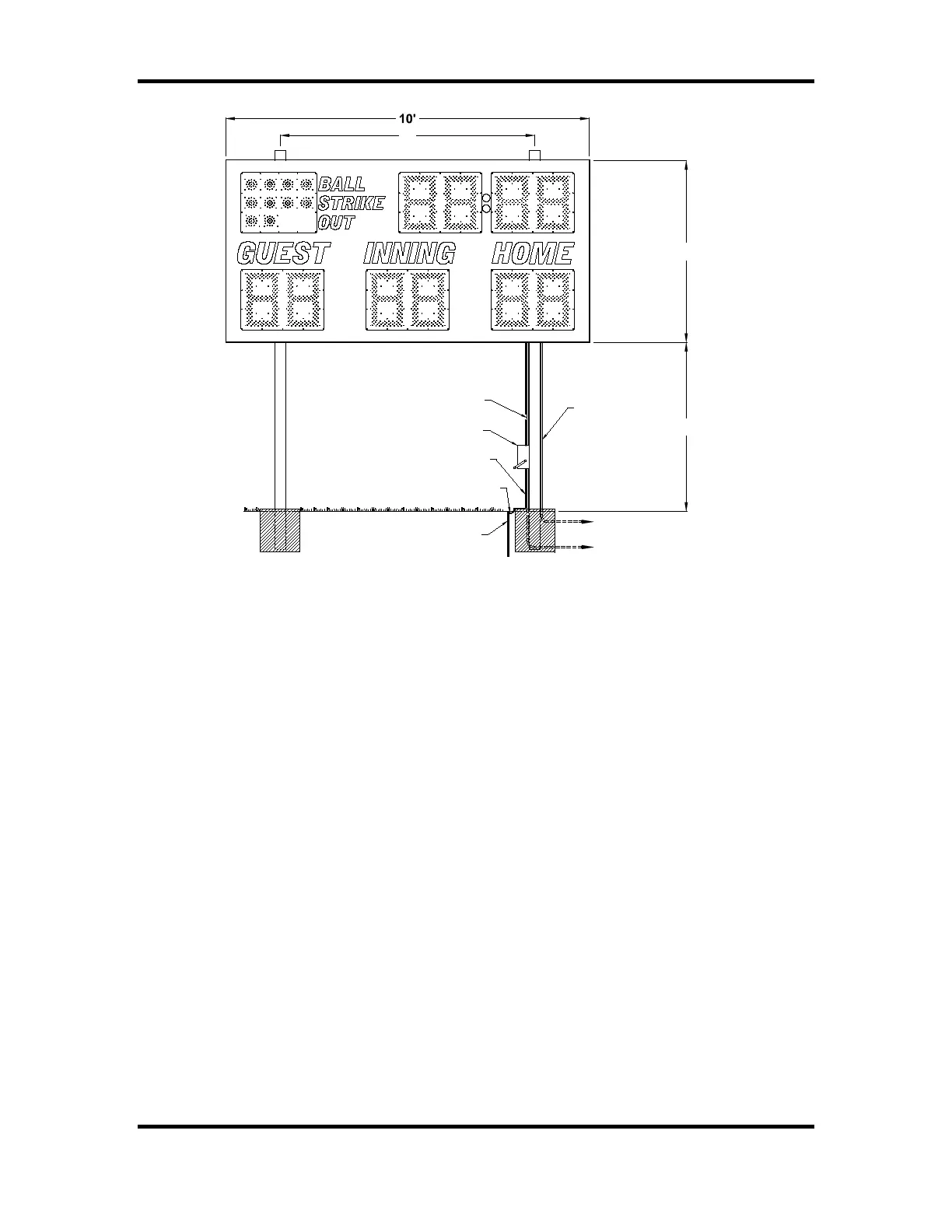

Figure 1 1360 Post Spacing
Figure 2 shows the spacing of the posts for a 1360 scoreboard with an optional side
sponsor panel. The sponsor panel is built into the scoreboard cabinet.
