Recommended Configurations

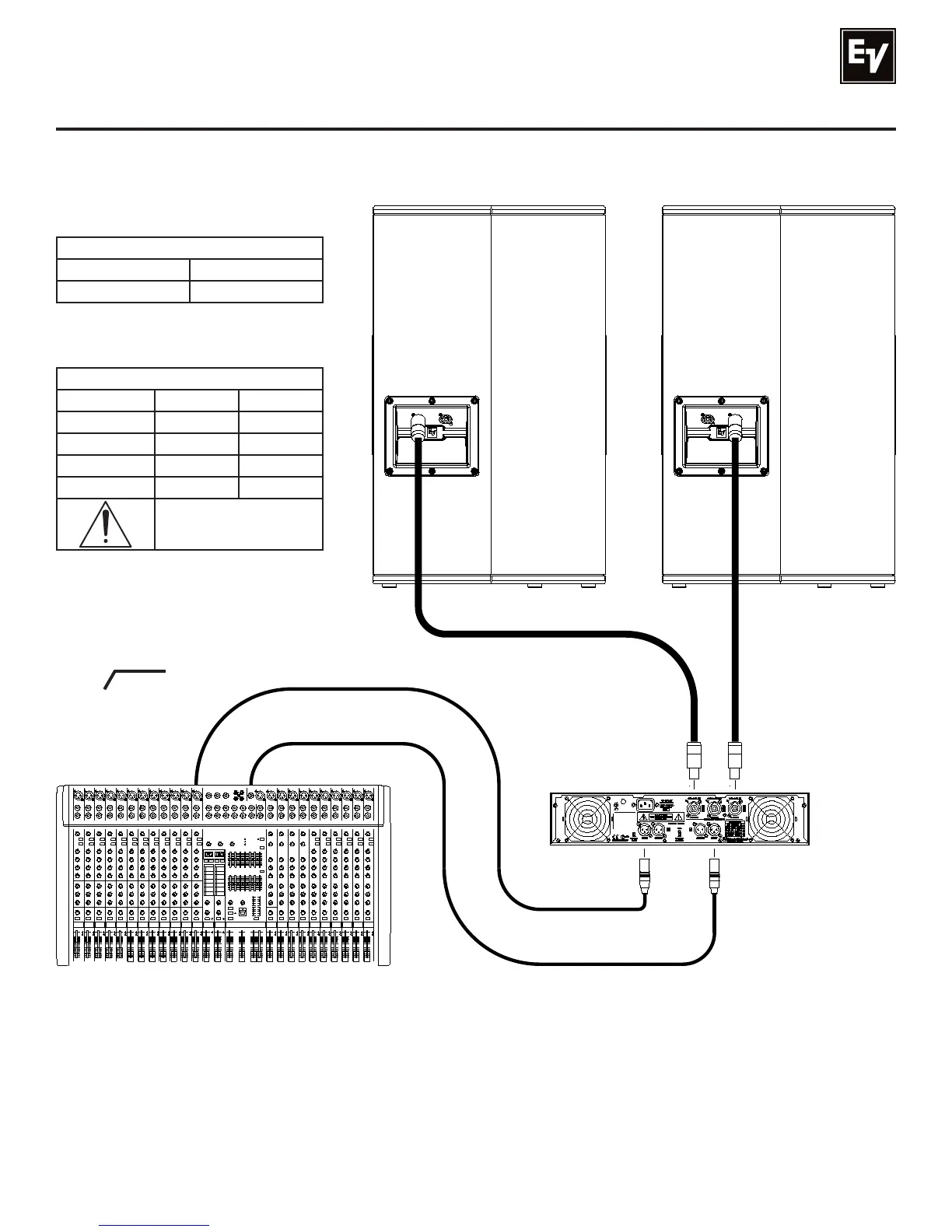

Basic Stereo System using ELX112’s or ELX115’s
Mixer
Q66
Amplier
Output A
ELX112
or
ELX115
Output B
Input A
Input B
45 Hz
Amplifier Load (per Output Channel)
# of Speakers Nominal Minimum
1 8 Ohms 7 Ohms
2 4 Ohms 3.5 Ohms
3 2.7 Ohms 2.3 Ohms
4 2 Ohms 1.8 Ohms
Caution: Do not exceed the
maximum load rating of
the amplifier.
low pass
filter (from
mixer or
processor)
ELX112
or
ELX115
NL4 Pin Configuration
Pins 1+ and 1- Used
Pins 2+ and 2- Not Used
