2 | ELX200-18SP 18" powered subwoofer
Grille:
18 AWG steel with powdercoat
Color:
Black
Dimensions (H x W x D):
600 mm x 507 mm x 574 mm
(23.7 in x 20.0 in x 22.6 in)
Net weight:
29.0 kg (64 lb)
Shipping weight:
33.1 kg (73.0 lb)
Power consumption:
100 - 240 V~, 50 - 60 Hz, 1.8
A
3
1Full space measurement using music DSP preset.
2Maximum SPL is measured at 1 m using broadband
pink noise at maximum output.
3Current rating is 1/8 power.

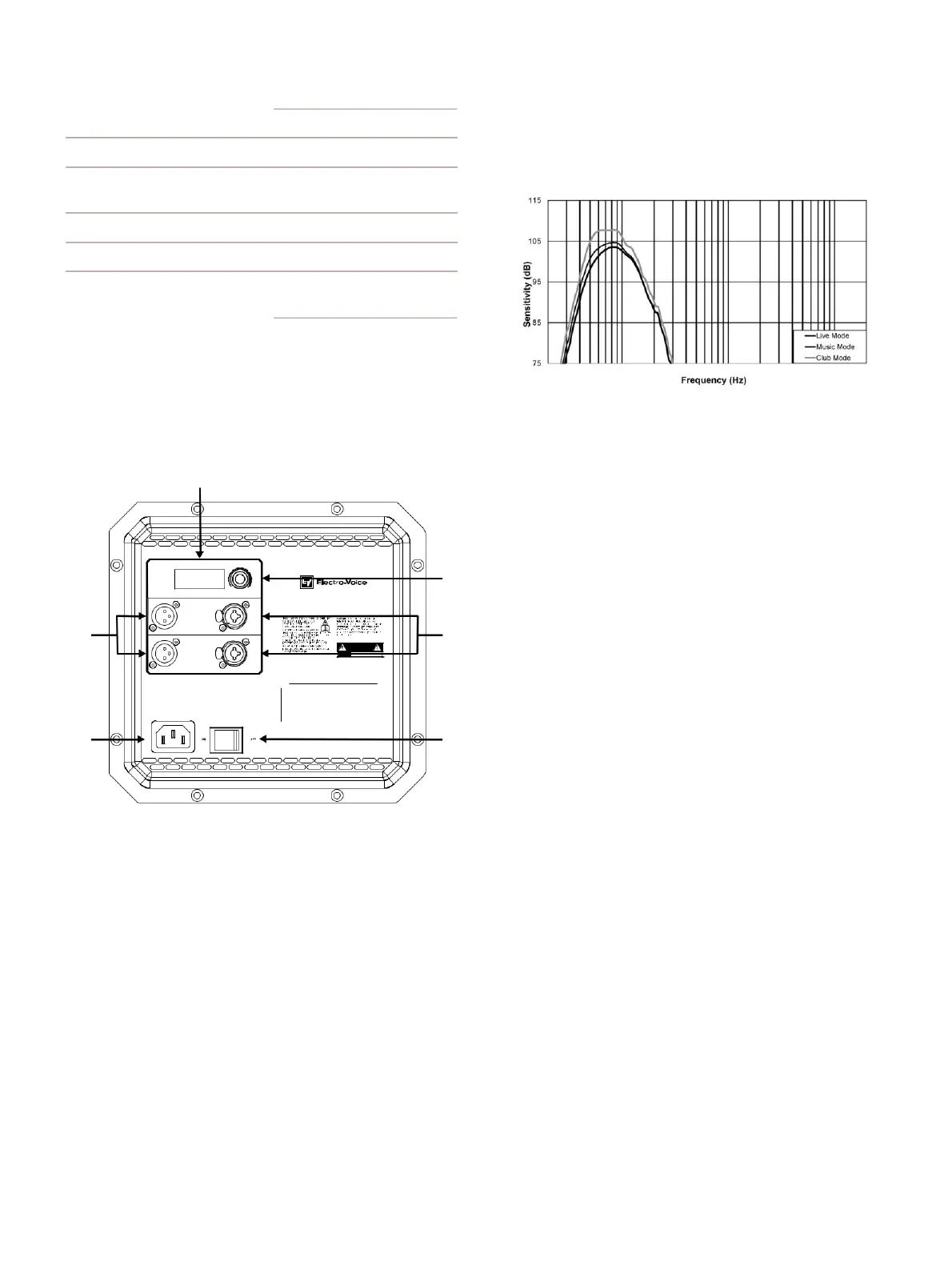

System overview
Subwoofer amplifier panel:
1
Q UICKS MA R T DSP | MONITOR
PUSH FOR DSP
M A S T E R
2
V O L
ELX200
1 O U T P U T
1 I N P U T
6
WARNING: TO R E D UC E R I S K OF SHO CK , DO N OT
3
EX PO SE T H IS A P PL IA NC E T O R A IN O R M O I ST URE .
2 O U T P U T
2 I N P U T
CAUT IO N
AVIS
RI S Q U E D E C H O C E L E C TR IQ U E NE
PAS OUVRIR
5
MAI NS I N
4
1. LCD – DSP control and monitoring interface.
2. MASTER VOL – Adjusts the sound level.
DSP – Scroll through the menu and select the
available choices. Push the MASTER VOL knob to
enter the DSP menu.
3. INPUT – Balanced input for the connection of signal
sources like mixing consoles, instruments, or
microphones. Connections can be established using ¼
inch TRS or XLR connectors.
4. POWER – AC switch for switching the power ON or
OFF. The LCD screen lights up when the power is
turned ON, after approximately 3 seconds.
5. MAINS IN – AC connection is established via an IEC-
connector.
6. OUTPUT – XLR output sends the input signal to another
loudspeaker or subwoofer. INPUT 1 is linked to OUTPUT
1 and INPUT 2 is linked to OUTPUT 2. The MASTER
VOL or DSP control settings do not affect
OUTPUT.
For more information, see ELX200 Powered
Loudspeakers Installation manual (F.01U.326.891).
Frequency response:
