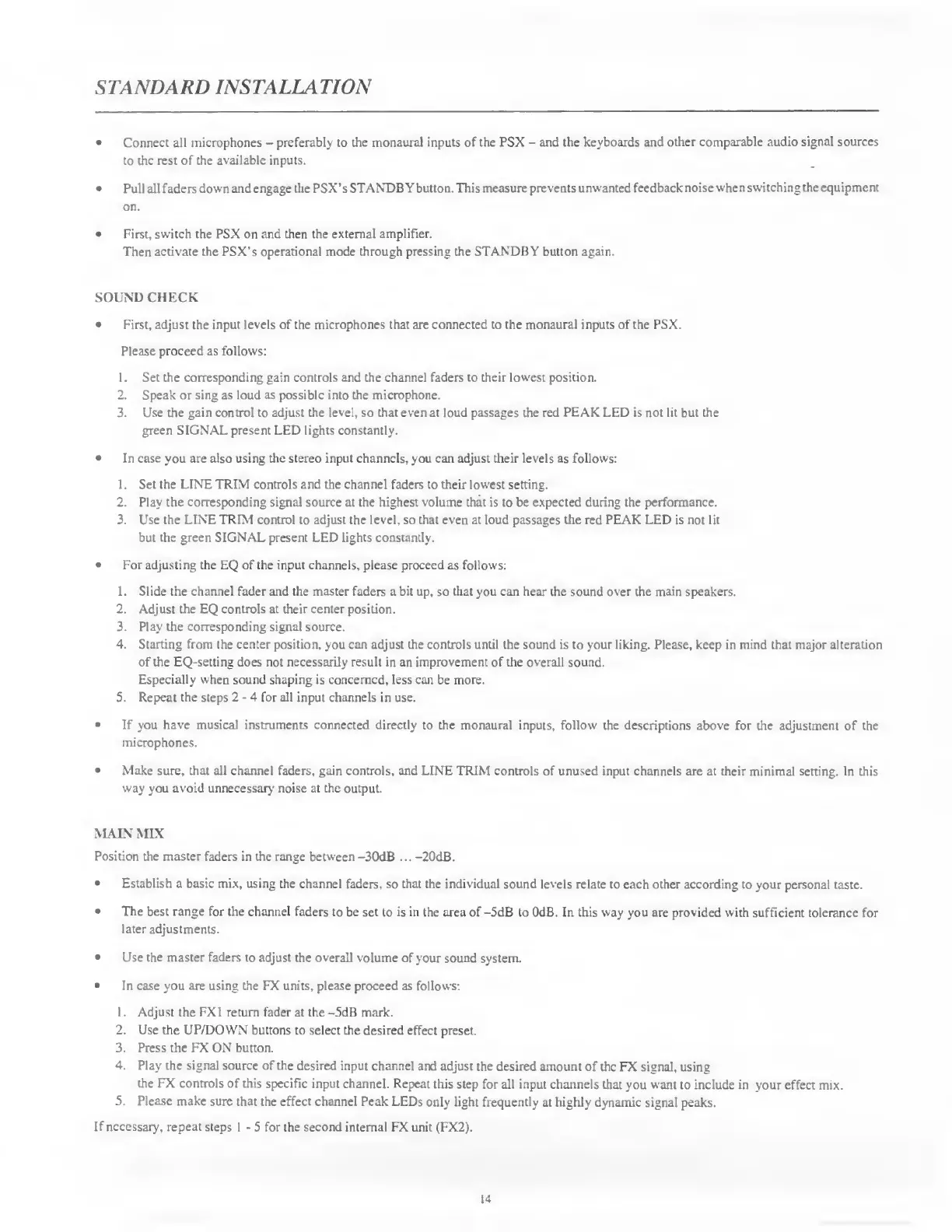

STANDARD
INSTALLATION
•
Connect
all
microphones
-
preferably
to
the
monaural
inputs
of
the
PSX
-
and
the
keyboards
and
other
comparable
audio
signal
sources
to
the
rest
of
the
available
inputs.
•
Pull
all
faders
down
and
engage
the
PSX’s
STANDBY
button.
This
measure
prevents
unwanted
feedback
noise
when
s
witching
the
equipment
on.
•
First,
switch
the
PSX
on
and
then
the
external
amplifier.
Then
activate
the
PSX’s
operational
mode
through
pressing
the
STANDBY
button
again.
SOUND
CHECK
•
First,
adjust
the
input
levels
of
the
microphones
that
are
connected
to
the
monaural
inputs
of
the
PSX.
Please
proceed
as
follows:
1.
Set
the
corresponding
gain
controls
and
the
channel
faders
to
their
lowest
position.
2.
Speak
or
sing
as
loud
as
possible
into
the
microphone.
3.
Use
the
gain
control
to
adjust
the
level,
so
that
even
at
loud
passages
the
red
PEAK
LED
is
not
lit
but
the
green
SIGNAL
present
LED
lights
constantly.
•
In
case
you
are
also
using
the
stereo
input
channels,
you
can
adjust
their
levels
as
follows:
1.
Set
the
LINE
TRIM
controls
and
the
channel
faders
to
their
lowest
setting.
2.
Play
the
corresponding
signal
source
at
the
highest
volume
that
is
to
be
expected
during
the
performance.
3.
Use
the
LINE
TRIM
control
to
adjust
the
level,
so
that
even
at
loud
passages
the
red
PEAK
LED
is
not
lit
but
the
green
SIGNAL
present
LED
lights
constantly.
•
For
adjusting
the
EQ
of
the
input
channels,
please
proceed
as
follows:
1.
Slide
the
channel
fader
and
the
master
faders
a
bit
up,
so
that
you
can
hear
the
sound
over
the
main
speakers.
2.
Adjust
the
EQ
controls
at
their
center
position.
3.
Play
the
corresponding
signal
source.
4.
Starting
from
the
center
position,
you
can
adjust
the
controls
until
the
sound
is
to
your
liking.
Please,
keep
in
mind
that
major
alteration
of
the
EQ-setting
does
not
necessarily
result
in
an
improvement
of
the
overall
sound.
Especially
when
sound
shaping
is
concerned,
less
can
be
more.
5.
Repeat
the
steps 2
-
4
for
all
input
channels
in
use.
•
If
you
have
musical
instruments
connected
directly
to
the
monaural
inputs,
follow
the
descriptions
above
for
the
adjustment
of
the
microphones.
•
Make
sure,
that
all
channel
faders,
gain
controls,
and
LINE
TRIM
controls
of
unused
input
channels
are
at
their
minimal
setting.
In
this
way
you
avoid
unnecessary
noise
at
the
output.
MAES’MIX
Position
the
master
faders
in
the
range
between
-30dB
...
-20dB.
•
Establish
a
basic
mix,
using
the
channel
faders,
so
that
the
individual
sound
levels
relate
to
each
other
according
to
your
personal
taste.
•
The
best
range
for
the
channel
faders
to
be
set
to
is
in
the
area
of
-5dB
to
OdB.
In
this
way
you
are
provided
with
sufficient
tolerance
for
later
adjustments.
•
Use
the
master
faders
to
adjust
the
overall
volume
of
your
sound
system.
•
In
case
you
are
using
the
FX
units,
please
proceed
as
follows:
1.
Adjust
the
FX1
return
fader
at
the
-5dB
mark.
2.
Use
the
UP/DOWN
buttons
to
select
the
desired
effect
preset
3.
Press
the
FX
ON
button.
4.
Play
the
signal
source
of
the
desired
input
channel
and
adjust
the
desired
amount
of
the
FX
signal,
using
the
FX
controls
of
this
specific
input
channel.
Repeat
this
step
for
all
input
channels
that
you
want
to
include
in
your
effect
mix.
5.
Please
make
sure
that
the
effect
channel
Peak
LEDs
only
light
frequently
at
highly
dynamic
signal
peaks.
If
necessary,
repeat
steps
1
-
5
for
the
second
internal
FX
unit
(FX2).
14
