Electrolux 30" - Removing the Large Oven Door Outer Panel

129
Hinge lock

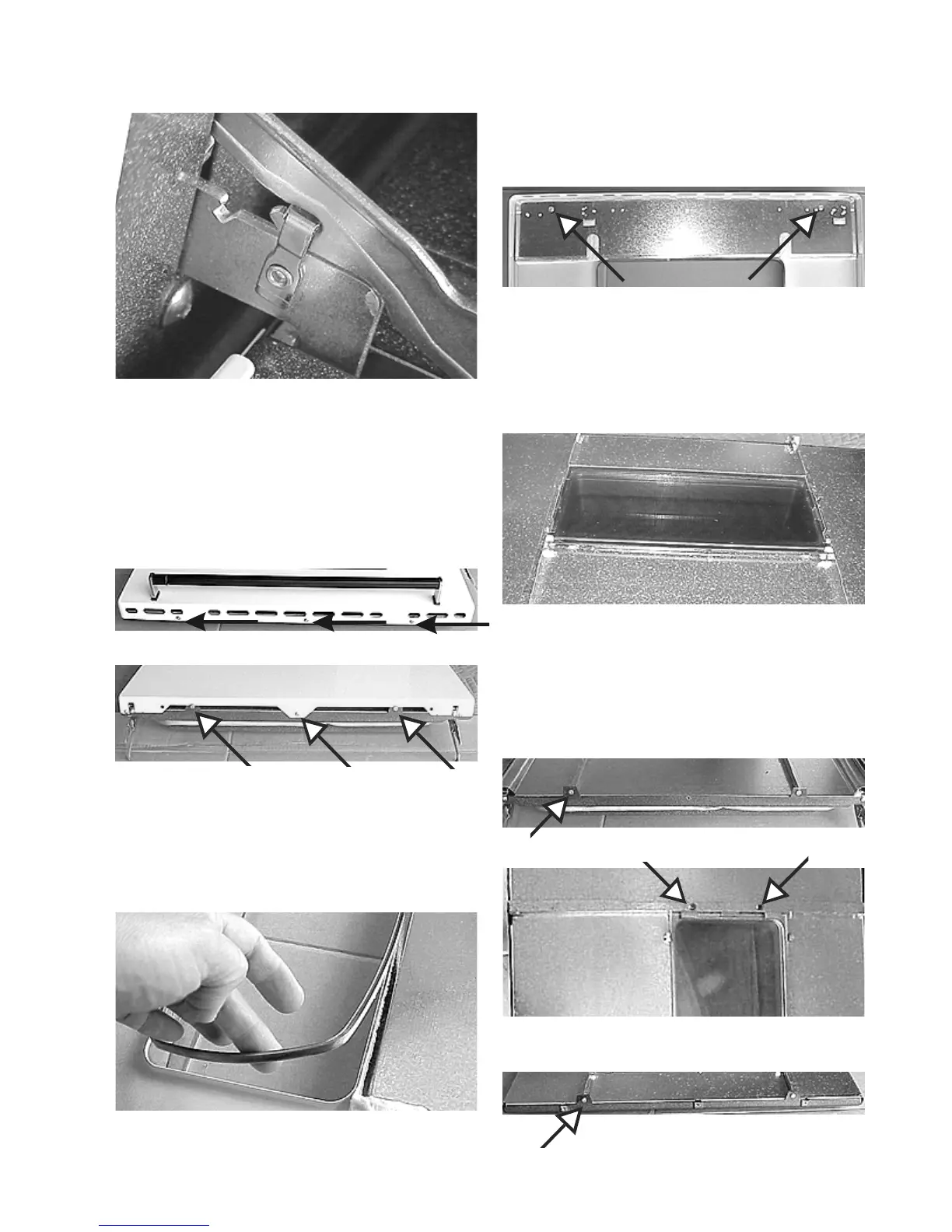

Removing the large oven doors outer panel:
1. Remove the oven door and lay it on something soft
so that the liner does not get scratched.
2. Remove the three screws from the top, three screws
from the bottom and lift the panel off.
Three screws at the top
Three screws at the bottom
Removing the large oven doors outer panel glass
seal:
1. Remove the outer door panel and lift the seal off of
flange for the window opening.
Panel glass seal
Removing the large doors small heat shield and
door handle:
1. Remove the outer door panel and the two screws
holding the shield and handle.
Two screws
Removing the large doors outer glass:
1. Remove the outer door panel and the outer door glass
will lift off.
Lift the glass off
Removing the large doors heat barrier glass:
1. Remove the outer door panel and one of the heat
shield rails by removing four screws. One at the
bottom, two in the middle and one at the top.
One screw at the bottom
Two in the middle
One at the top
