Electrolux 7000 - Removing the Duct and Heat Shield (Gas Dryers); Removing the Manifold Pipe (Gas Dryers)

80

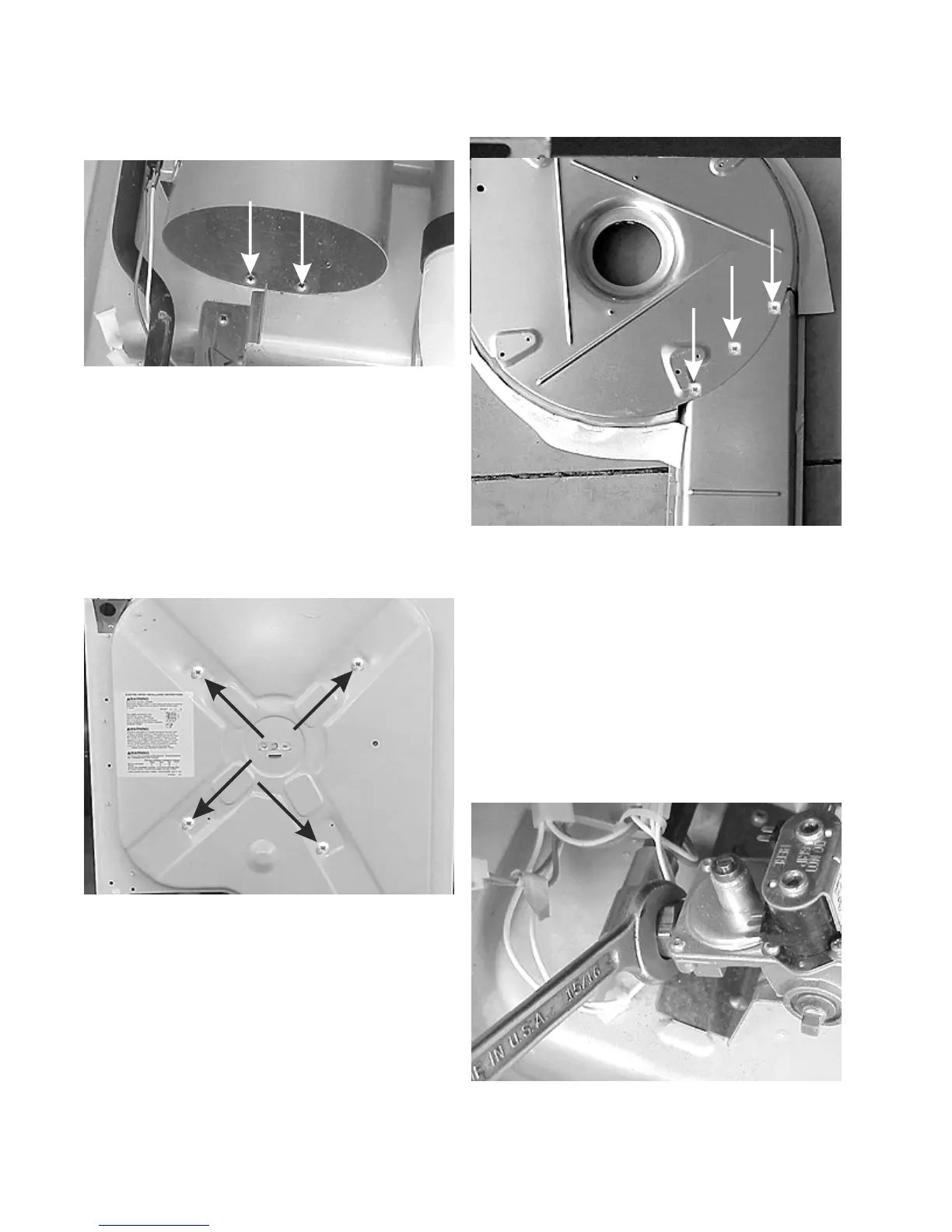

2. Remove the (2) screws holding the combustion
chamber to the base, raise the end and pull the
chamber out of the duct.
.
Removing the duct and heat shield: (Gas
dryers)
1. Disconnect the dryer from electrical supply,
remove the drum.
2. Remove (4) screws holding the heat shield to the
rear panel.
3. Lift the shield and duct out of the dryer and remove
the (3) screws holding duct to the heat shield.
Removing the manifold pipe: (Gas dryers)
1. Disconnect the dryer from electrical supply.
2. Turn the gas supply off and disconnect the gas
supply from the dryer.
3. Remove dryer front panel.
4. Using a 15/16” open end wrench disconnect
manifold pipe from the valve.
