81
3. Remove the vent pipe out the rear of the dryer and
remove the gasket from the vent pipe.
4. When reinstalling, install the gasket on the vent
pipe, install the vent pipe in the dryer and slide half
of the gasket on to the blower housing from the
front of the dryer.

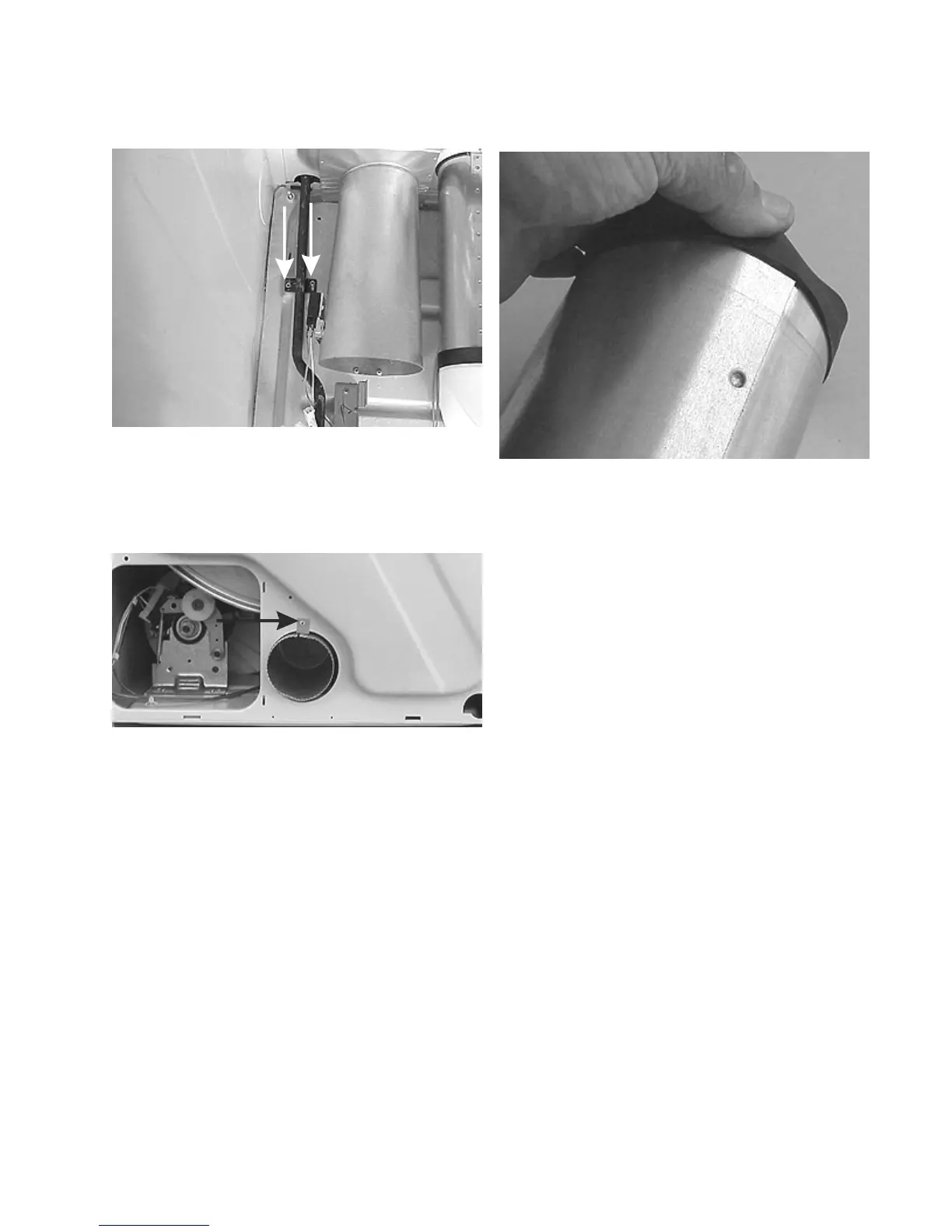

5. Remove the (2) screws holding the manifold pipe
to the base and lift the pipe out.
Removing the vent pipe: (Gas dryers)
1. Remove the (1) screw holding vent to the rear
panel and pull the vent pipe out the back.
Removing the gasket between the vent
pipe and blower housing : (Gas dryers)
1. Disconnect the dryer from electrical supply.
2. Remove front panel and slide the gasket
completely on to the vent pipe.
