- 3 -
Spares Operation - R.Kurzke 02/03 599 516 219 EN
1. Technical specifications
Power supply: 230 V - 50 Hz
Heater element: 1200 W
Power rating: 1280 W
Fuse required: 13 A
Height: 460 mm
Width: 450 mm
Depth: 480 mm
Water pressures: min. 50 KPa (0,5 bar)
max. 1000 kPa (10 bar)
Capacity: 5 settings
2. Installation water drainage

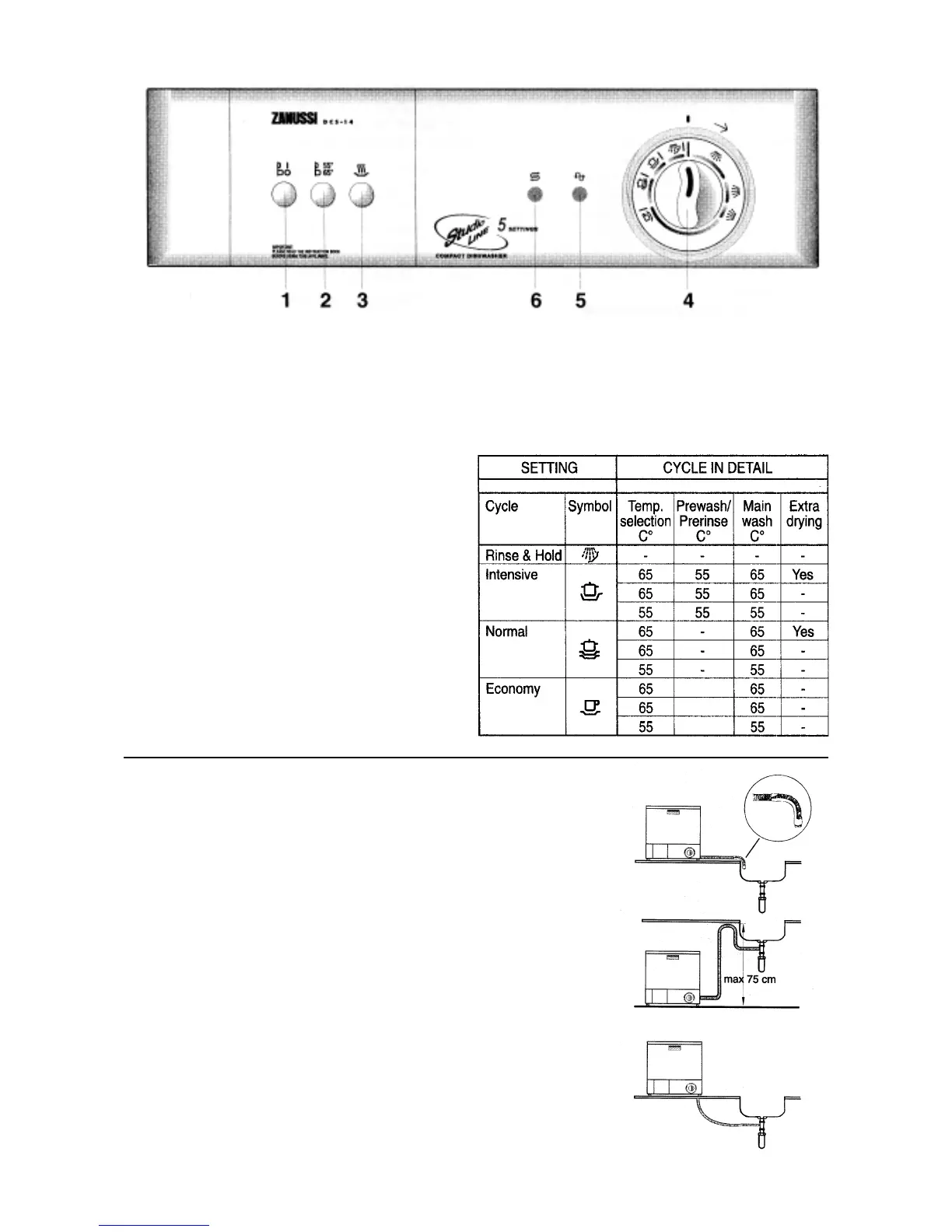

Place the discharge hose over the sink as illustrated.
It may not at any point be higher then 75 cm over the surface
which the dishwasher is standing on. If runs higher, operation of
the dishwasher might be impaired.
It is also important to ensure that the inside diameter of the hose is
not less than 13 mm at any point. If the discharge hose is too long
it can easily be cut to the right length.
Cut the hose to a suitable length, using a sharp knife.
Fit the elbow supplied onto the end of the hose.
1. On/Off-button
2. Temperature selector
3. Extra drying effect
4. Programme selector
5. Indicator lamp
6. Salt indicator lamp
