Electrolux Compact - Component Details (Part 2); Circulation and Drain Pumps; Thermostats and Programmer

- 5 -
Spares Operation - R.Kurzke 02/03 599 516 219 EN

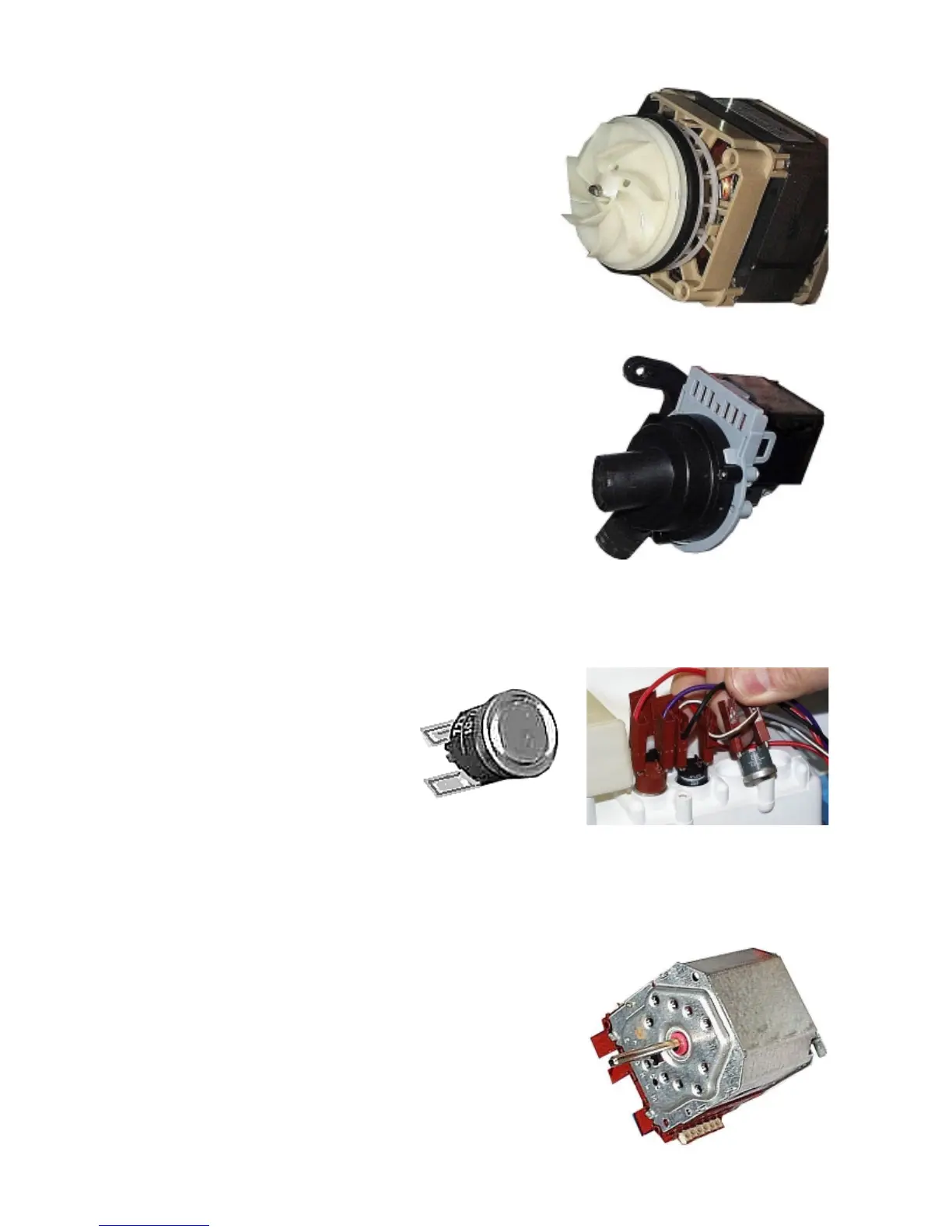

Circulation Pump
The circulation pump is driven by an asynchronous
motor with an starting winding. The starting winding
ist in circuit with a 2,5 µF (Euro) capacitor. (2 µF UK)
Rating: 60/80 W
Main winding resistance 158 Ohm
Starting winding resistance 158 Ohm
Drain Pump
The drain pump is driven by a synchronous motor.
Power output 21/19 W.
Pump rate 10-12 l/min.
Main winding resistance 200 Ohm
Thermostats (normally open)
45°C closes at 41°C
opens at 33°C
55°C closes at 50°C
opens at 42°C
65°C closes at 61°C
opens at 53°C
Overheating protection (normally closed)
opens at 83°C
closes at 0°C
Programmer
ELBI
