- 6
-
Spares
Operation
-
R.Kurzke
02/03
599
516 219
EN

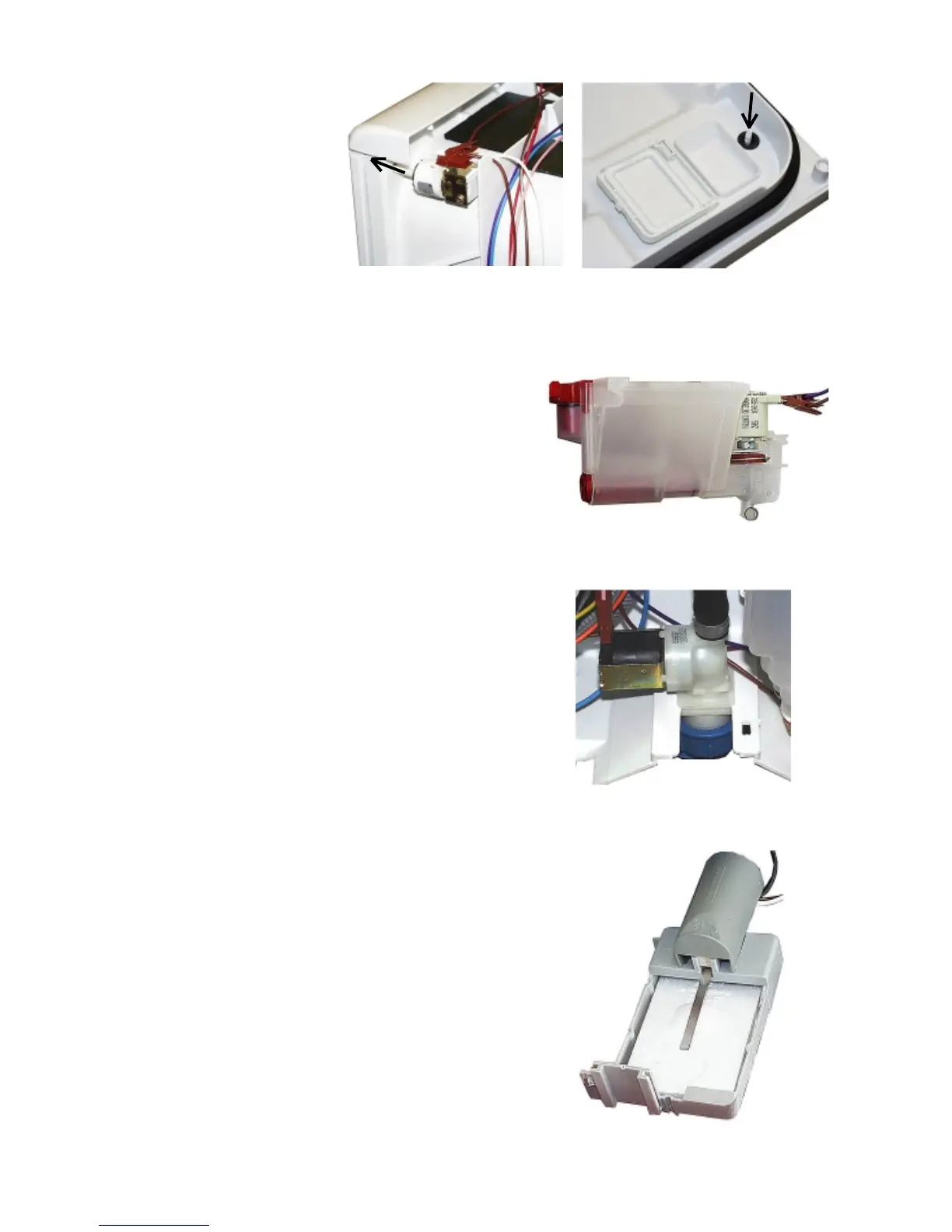

Detergent
dispenser
Coil resistance
3000 Ohm
Rinse aid dispenser
Rinse agency capacity
140 ccm
Solenoid coil resistance
1900 Ohm
Inlet valve
Capacity, max,
4 l/min
Resistance
4800 Ohm
Anti
flood
switch
If the anti flood swich
in the base tray is
activated, all
components are switched
off except the
drain pump
5
7
Table of Contents
Default Chapter
2
Table of Contents
2
1 Technical Specifications
3
2 Installation Water Drainage
3
3 Components
4
Capacitor
4
Pressure Switch
4
Heater Element
4
Circulation Pump
5
Drain Pump
5
NTC Temperature Sensor
5
Programmer
5
Detergent Dispenser
6
Rinse Aid Dispenser
6
Inlet Valve
6
Anti Flood Switch
6
Water Softening System
7
4 Position of Components
8
5 Water Course Scheme
12
6 Water Inlet
13
7 Rinsing System
14
8 Strainer System
15
9 Level Control System
16
Inlet System / Overfilling/Leakage Protection (Old Version)
17
10 Drain System
18
11 Regeneration
19
12 Thermostats
20
13 Temperatur and Safety Systems
21
14 Wirings and Diagrams
22
15 Service Informations
26
Spülraum
26
Housing
27
Panel / Base Plate
28
Components (Lower Region)
28
Door Components
30
Door Switch
31
Rinse Aid Dispenser / Detergent Dispenser Coil
32
Pressure Switch / Anti-Siphon Valve / Level Control Container
33
Level Control
33
Thermostats / Heater Element
34
Programmer / Switch Unit / Float Switch / Inlet Valve
35
Circulation Pump / Drain Pump
36
Softener / Regeneration Valve
37
Leakage Points
38
16 Fault Tracing
40
