- 32 -
Spares Operation - R.Kurzke 02/03 599 516 219 EN

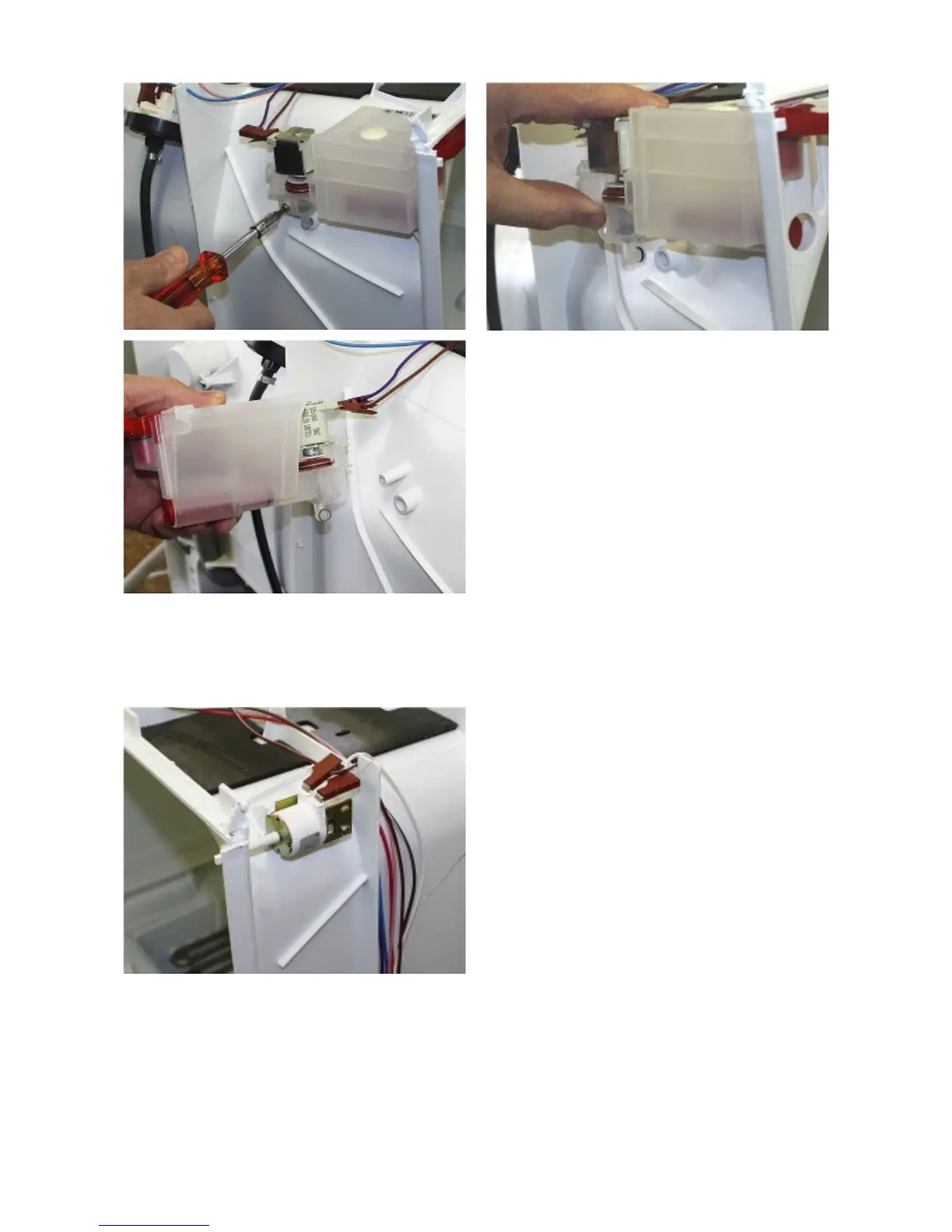

The coil with tappet as support
for the detergent dispenser is
held by two screws.
Remove this
screw to
dismount the
rinse aid
dispenser unit
