Electrolux Compact - Pump Removal; Circulation Pump Removal; Drain Pump Removal

- 36 -
Spares Operation - R.Kurzke 02/03 599 516 219 EN

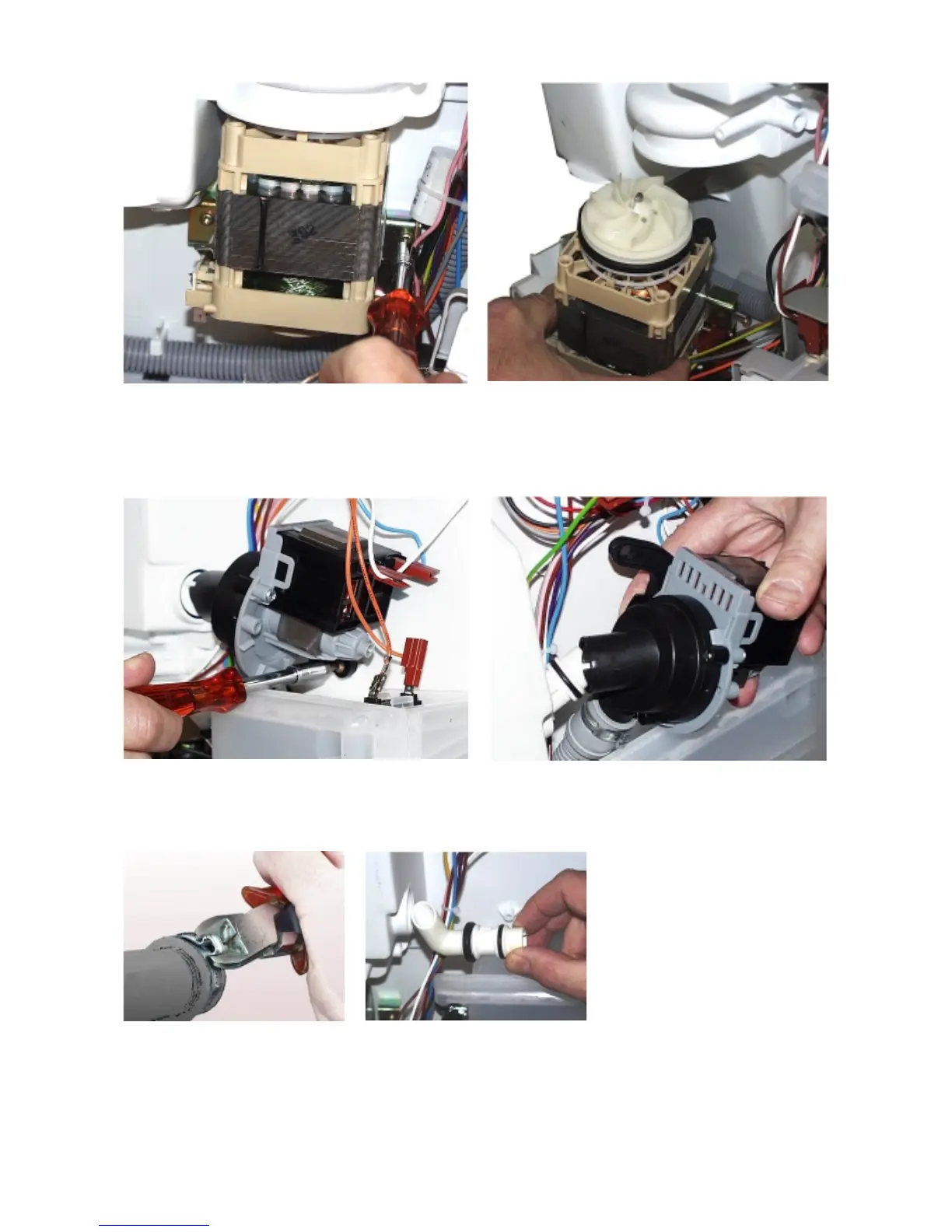

Here you can see how the hose
clamps can be re-tensioned with
wire cutting pliers.
Circulation pump
After loosening the screws of the holder, the circulation pump can be taken out
of the pump chamber.
Drain pump
To dismount the drain pump, the hose clamps are released and the screws removed.
After removing the drain pump
the tubing-bow with seals,
fitted in the pump chamber, is
accessible.
