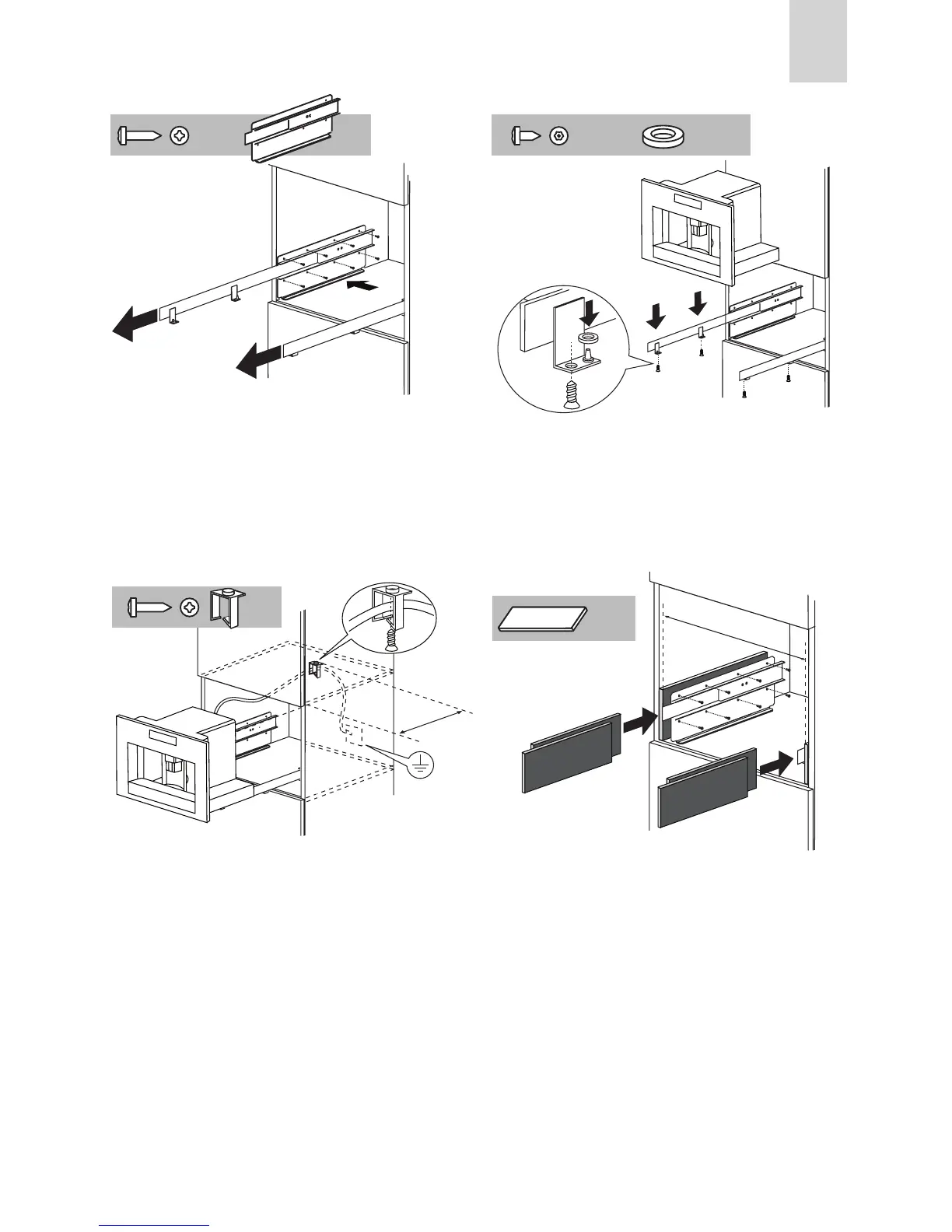

Position the rails on the sides of the cabinet as shown in the
gure.
Fix with the screws, then extract them completely.
If the coee maker is installed over a warmer drawer, use the top
surface of this as a reference to position the rails.
In this case, there will be no surface to rest the rails on.
x 4
x 16
approx. 350 mm
x 1
x 1
x 4x 8
x 2
560 + 1 mm
Fix the power cable with the clip.
The power cable must be long enough to allow the appliance to
be extracted from the cabinet to ll the coee bean container.
The appliance must be earthed in compliance with legi-
slation.
Electrical connections must be performed by a qualied
electrician following the instructions.
x 4
x 16
approx. 350 mm
x 1
x 1
x 4x 8
x 2
560 + 1 mm
Position the appliance on the rails, making sure the pins are
correctly inserted in the housings, then x it with the screws
supplied.
If the height of the appliance requires adjusting, use the spacer
disks provided.
x 4
x 16
approx. 350 mm
x 1
x 1
x 4x 8
x 2
560 + 1 mm
If necessary, correct alignment of the appliance by positioning
the spacers supplied under or at the sides of the support.
