electrolux 15
Mechanical door lock
When the appliance is delivered the door
lock is deactivated.

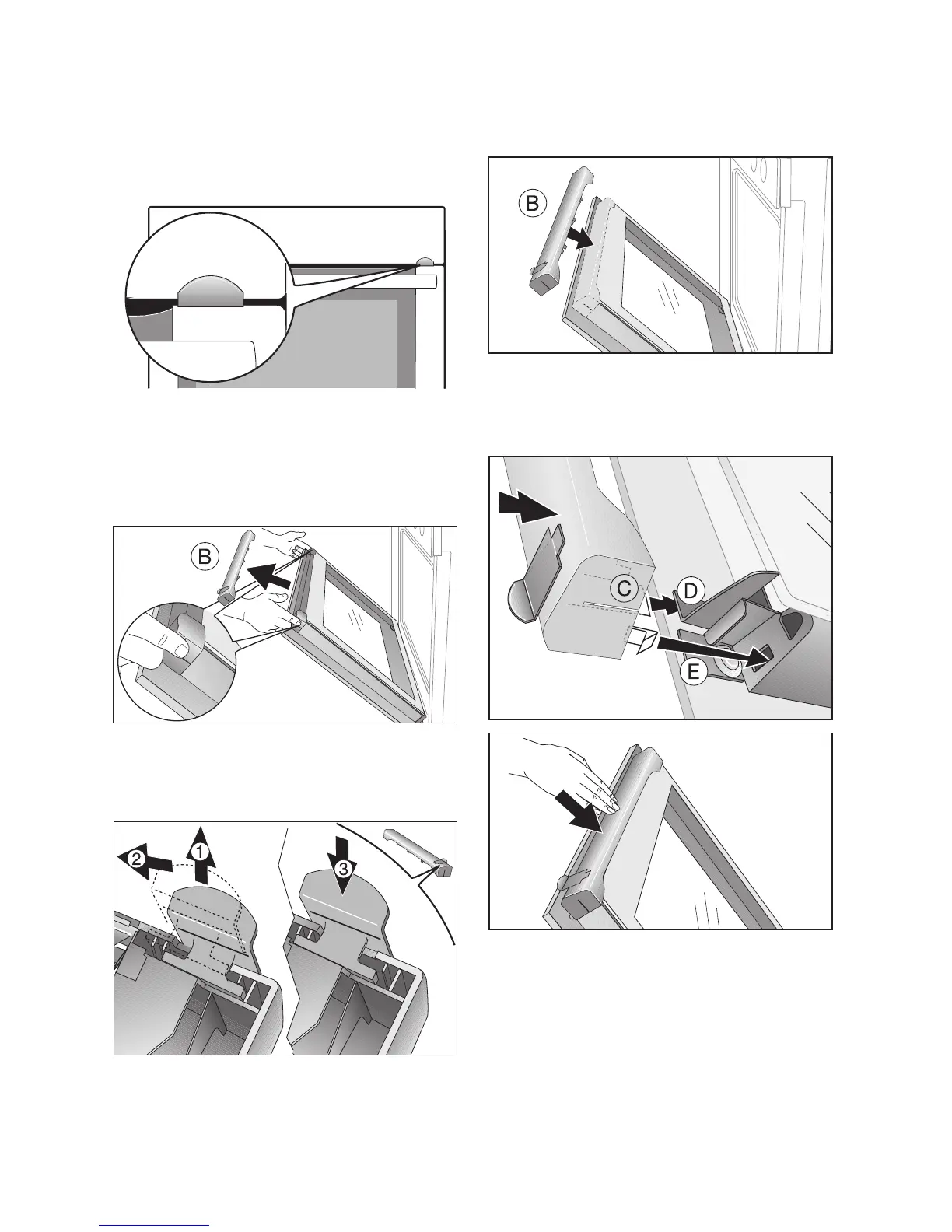

Activating door lock
1. Take hold of the door trim(B) on the up-
per edge of the door at both sides and
press inwards to release the clip seal.
Then remove the door trim by pulling it
upwards.
2. Activate lever:
Remove lever (1) and
move 4mm to the left (2)
and insert (3).
3. Take hold of the door trim (B) at each
side, position it on the inside edge of the
door and plug the door trim (B) into the
upper edge of the door
3 On the open side of the door trim (B)
there is a guide bar (C). This must be
pushed between the outer door panel
and the guide corner (D).
The clip seal (E) must be snapped in.
