electrolux 33

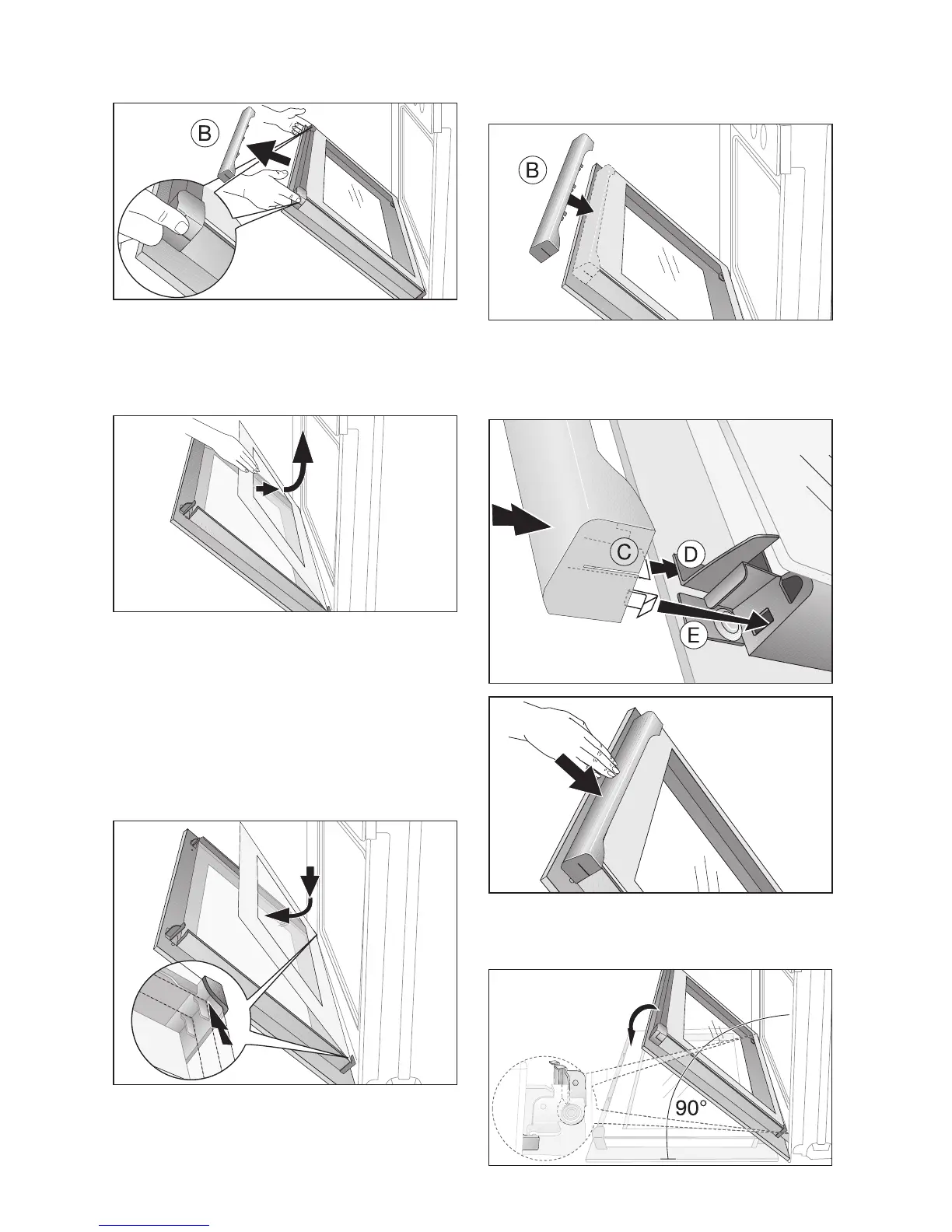

Then remove the door trim by pulling it
upwards.
5. Take hold of the door glass panels on
their upper edge one after the other and
take them out of the guide by pulling
them upwards..
Cleaning the door glass panels
Clean the door glass panels thoroughly with
a solution of water and washing up liquid.
Then dry them carefully
Putting the door glass panels back.
1. From above insert the door glass panels
at an angle into the door profile at the
bottom edge of the door one after the
other and lower them.
3 Insert the smaller panel first, then the
larger panel.
2. Take hold of the door trim (B) at each
side, position it on the inside edge of the
door and plug the door trim (B) into the
upper edge of the door
3 On the open side of the door trim (B)
there is a guide bar (C). This must be
pushed between the outer door panel
and the guide corner (D).
The clip seal (E) must be snapped in.
3. Open the oven door as far as it will go.
