EUROFLEC 16/36

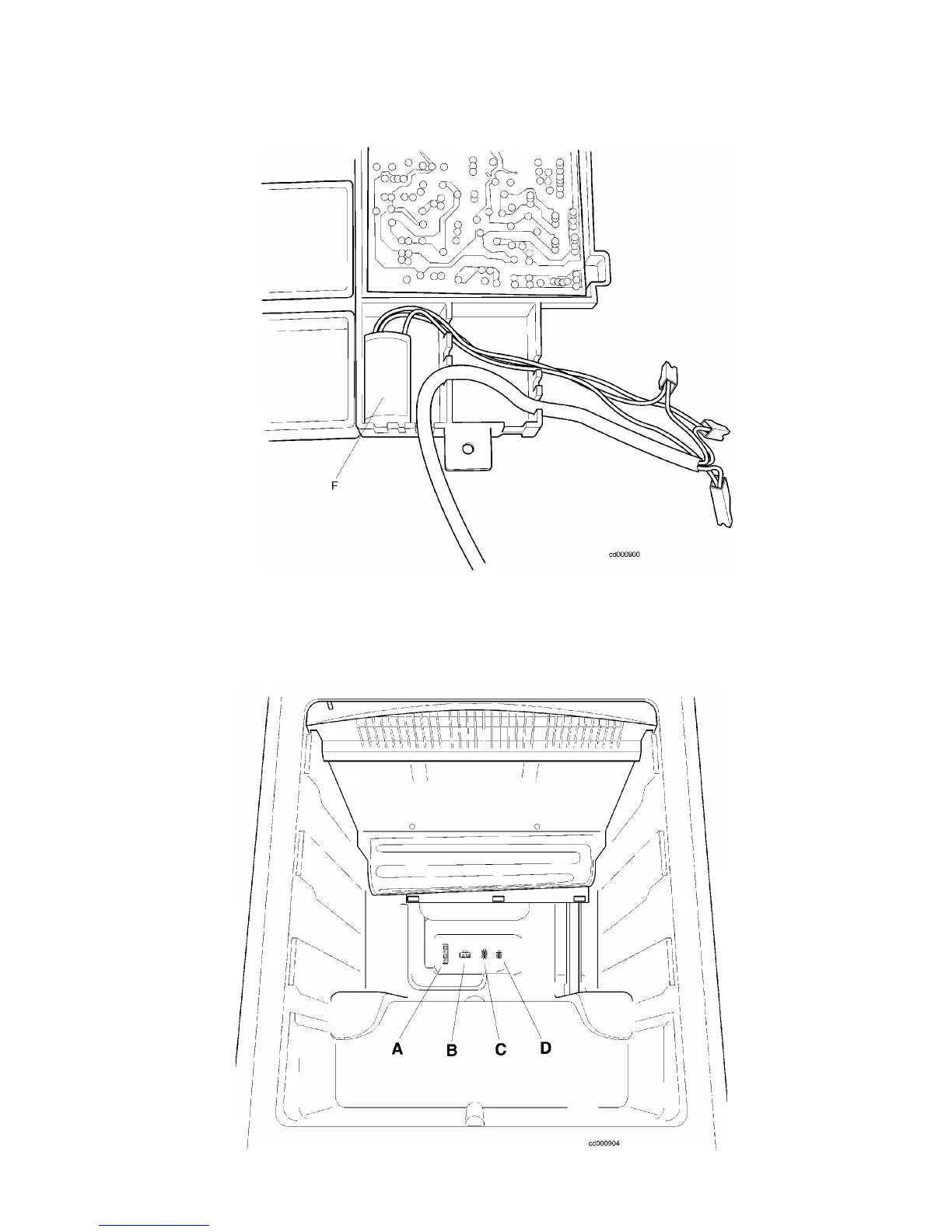

Inside the box, besides the control and power board, there is the interference suppressor (F) connected to
the power supply cable.
In case of replacement or while checking the power supply cable, position the cables inside the box as
shown in the picture below.
4.4. Foamed connectors seat
Inside the freezer compartment, behind the panel of the evaporator battery, there are the foamed connectors
where the NTC sensors (A), the defrosting heaters (B), the evaporator fan (C) and the freezer door switch
(D) must be connected.
