EUROFLEC 33/36

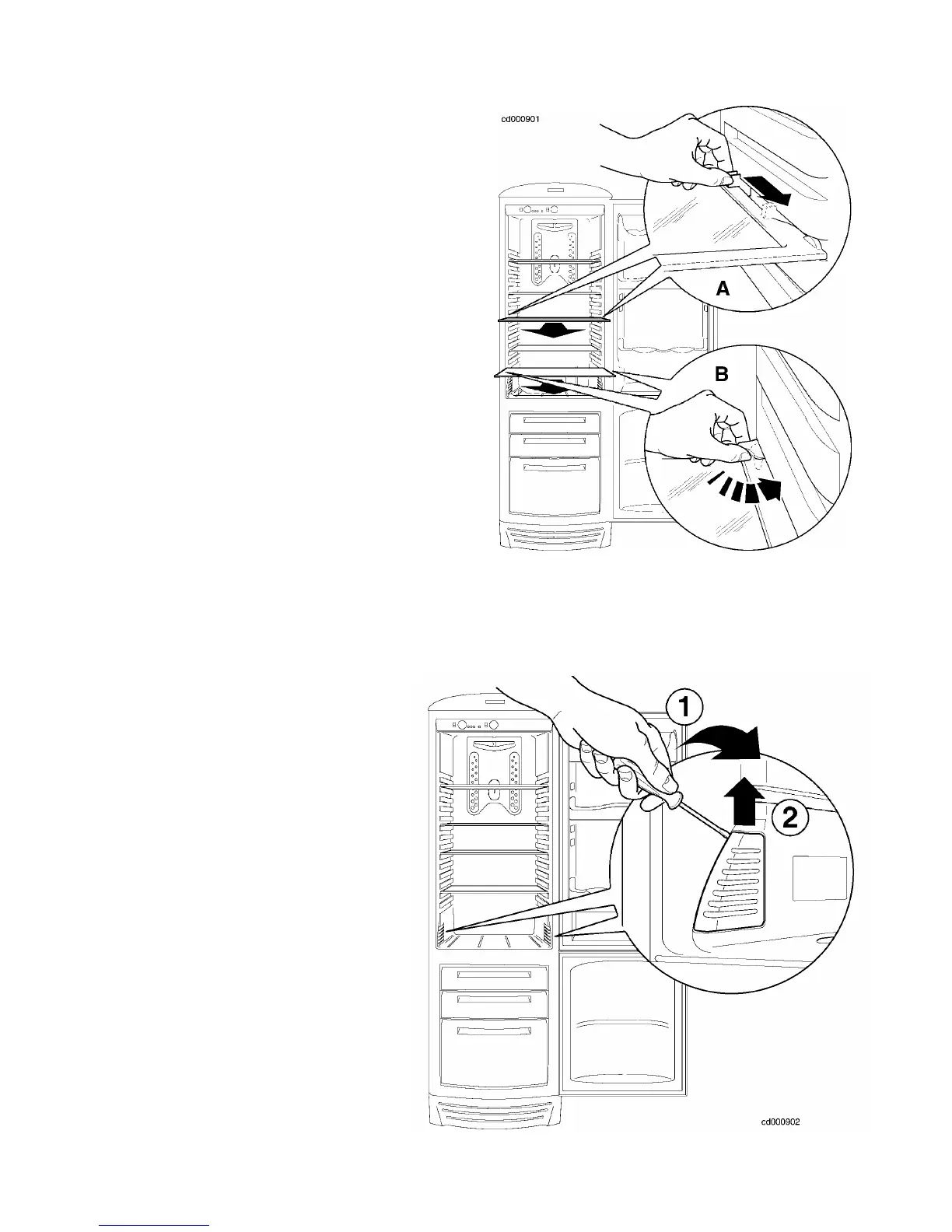

9.4. Glass shelves
The glass shelves are secured to the guides by plastic
tabs. To remove the shelves, it is necessary to move
the tabs as shown in detail A.
Two tabs, too, secure the shelf on the vegetable
drawer. To release and remove the vegetable
drawer and glass shelf, it is necessary to rotate the
tabs as shown in detail B.
9.5. Air inlets
The air inlets through which air returns to the freezer
compartment are pressure-fitted. To remove them,
simply lever off using a screwdriver.
