Electrolux EUROFLEC - Diagrams; Functional diagram

EUROFLEC 9/36
3. Diagrams

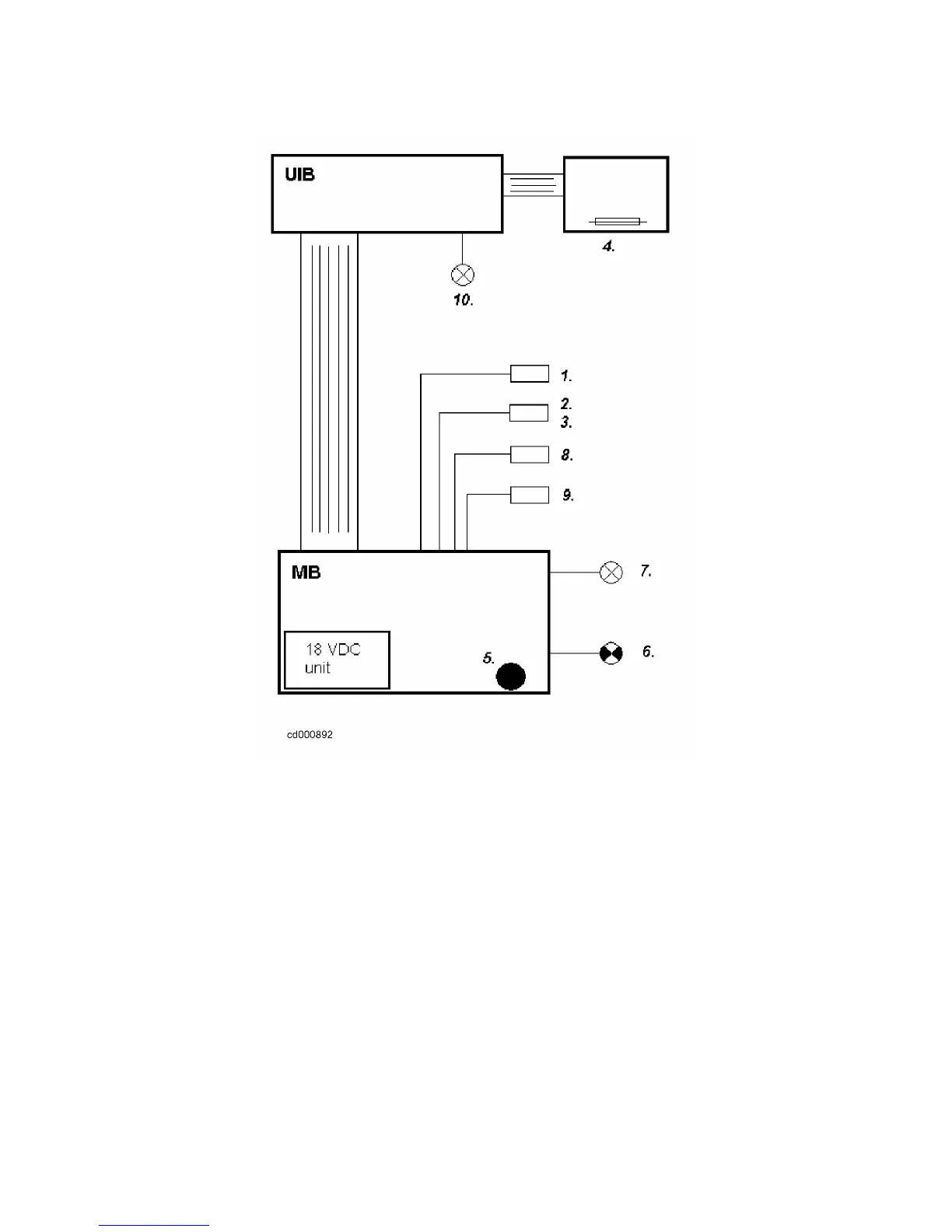

3.1 Functional diagram
The control system of the EUROFLEC consists of a UIB user interface board and a MB control and power
board with the following inputs and outputs:
INPUTS:
1. Freezer door switch;
2. NTC sensor on evaporator;
3. NTC sensor in air;
4. Refrigerator door switch (reed element with foam-embedded magnet in door);
OUTPUTS:
5. buzzer;
6. compressor;
7. condenser fan;
8. evaporator fan;
9. defrosting heaters;
10. refrigerator compartment light;
