10.5 Drain pump
15 Drain pump
16 Thermal protector
20 PCB

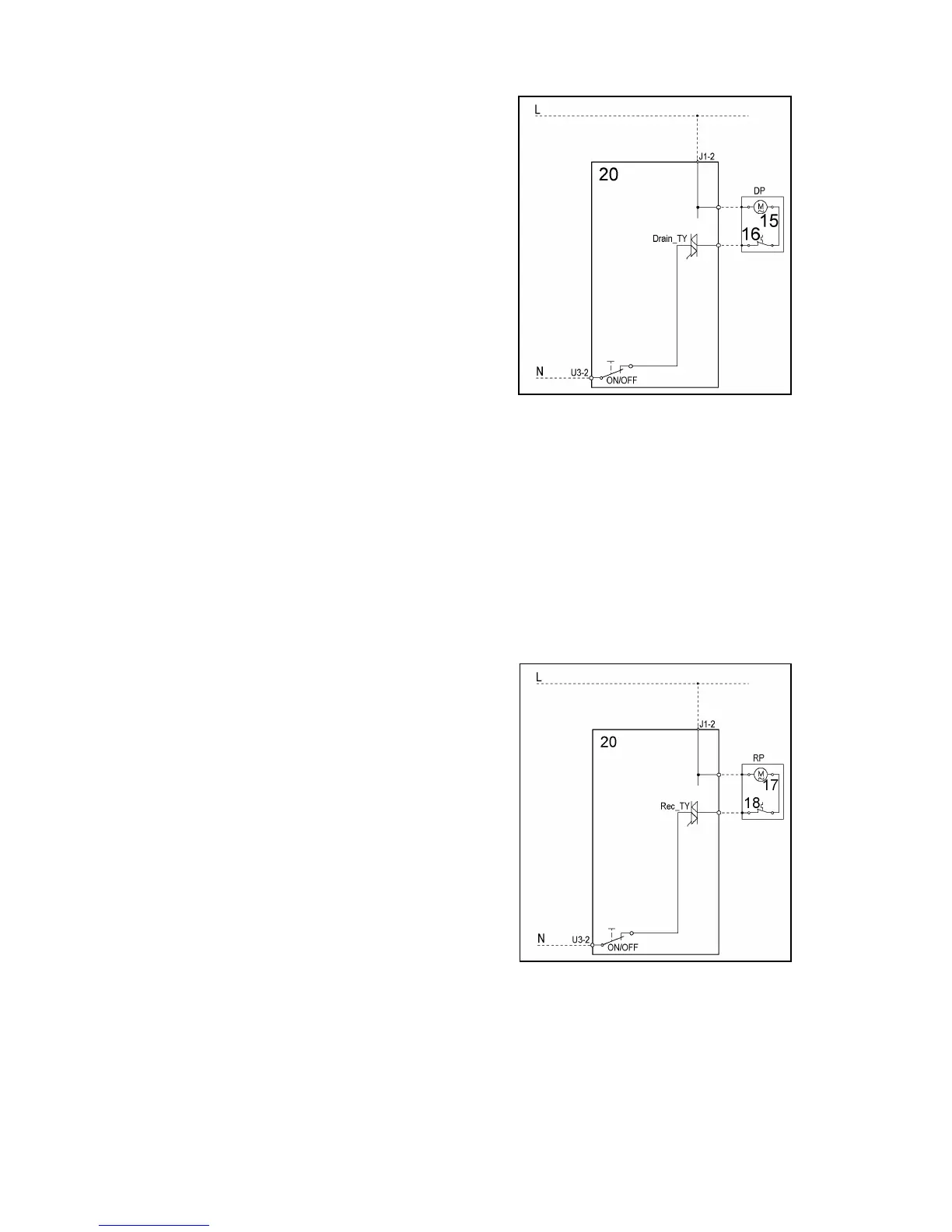

The PCB powers the drain pump via a triac as follows:
- until the electronic pressure switch closes on empty, after which the pump is actioned for a brief
period or passes to the subsequent phase;
- for a pre-determined period (and eventually an alarm appears).
10.6 Recirculation pump (if featured)
On jetsystem models, the main board powers the recirculation pump through a triac.
17 Drain pump
18 Thermal protector
20 PCB
