11 ACCESSIBILITY
11.1 To the electronic control system
11.1.1 Work top

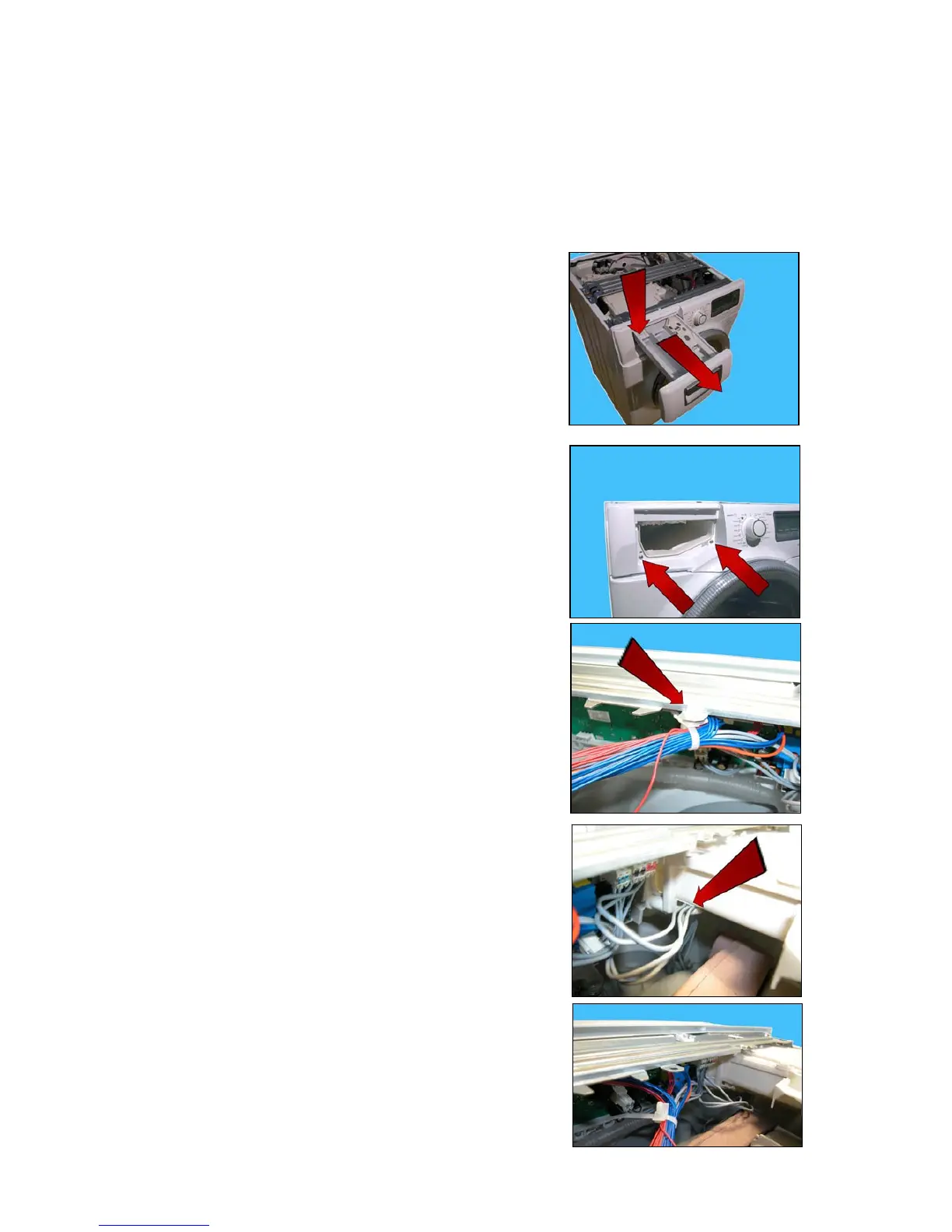

a. Remove the two rear screws, push the top panel towards the rear and release from the cabinet.
11.1.2 Control panel
b. Press the drawer lock.
c. Extract.
d. Remove the screw which secures the control panel to the dispenser.
e. Remove the clamp which secures the wiring to the board casing.
f. Release the wiring from the clamp under the dispenser.
After releasing the wiring from the fixing hooks.
d
f
e
b
c
