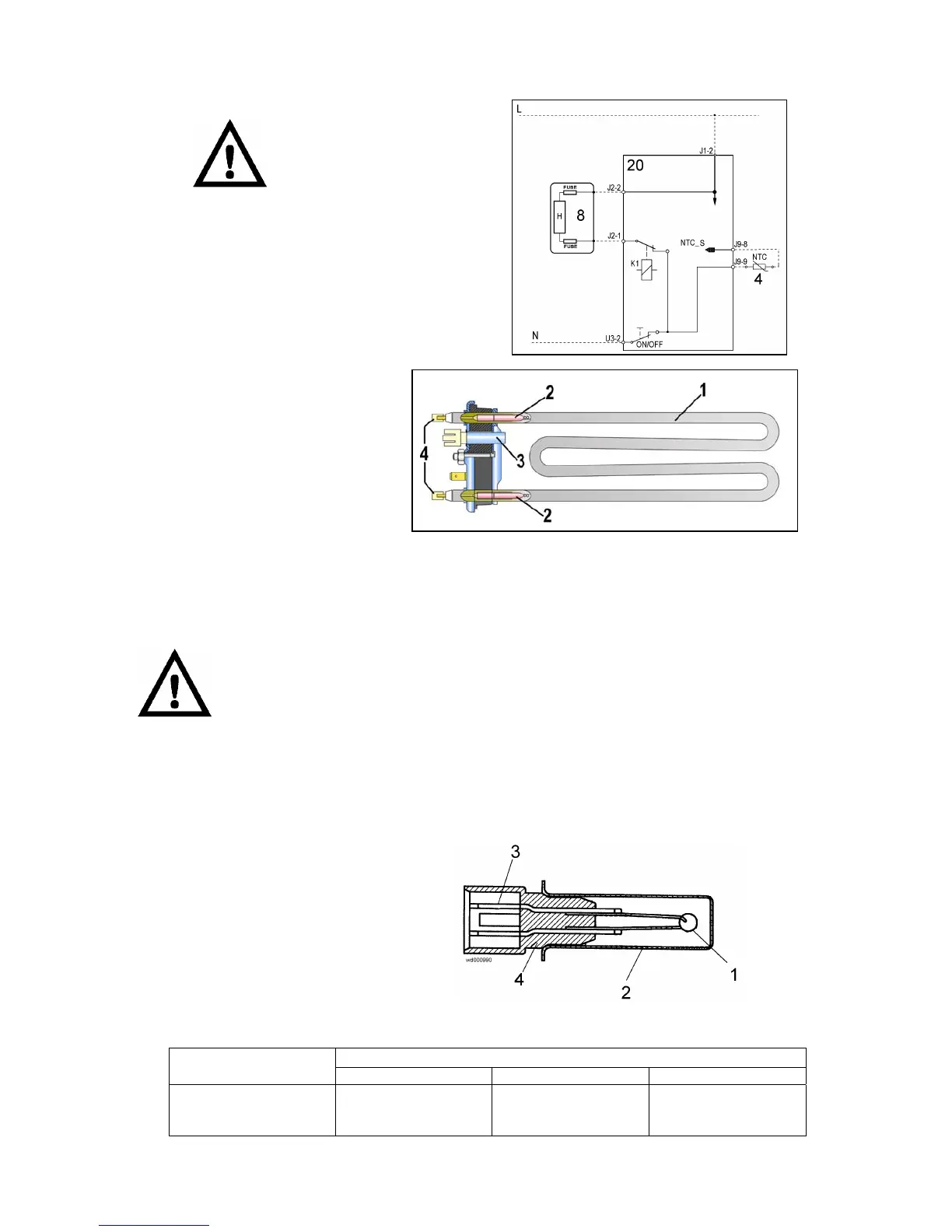

10.7 Heating
2 NTC temperature sensor
13 Heating element (with thermal fuses)
14 PCB
K1 Relay
1. Tubular casing
2. Thermal fuses
3. NTC Sensor
4. Connectors
The heating element is powered by a relay (K1) of the electronic board and is provided with two thermal fuses,
which interrupt if the temperature degree exceeds the values by which they are calibrated.
WARNING
In case of replacement of the heater, replace it with one with the same characteristics in
order not to compromise the safety of the appliance.
10.8 Temperature sensor
The temperature is controlled by the PCB by means of a NTC temperature sensor incorporated in the heating
element.
1. NTC resistor
2. Metallic capsule
3. Terminals
4. Plastic casing
RESISTANCE (Ω)
TEMPERATURE
(ºC)
Nominal value Maximum value Minimum value
20
60
80
6050
1250
640
6335
1278
620
5765
1222
660
