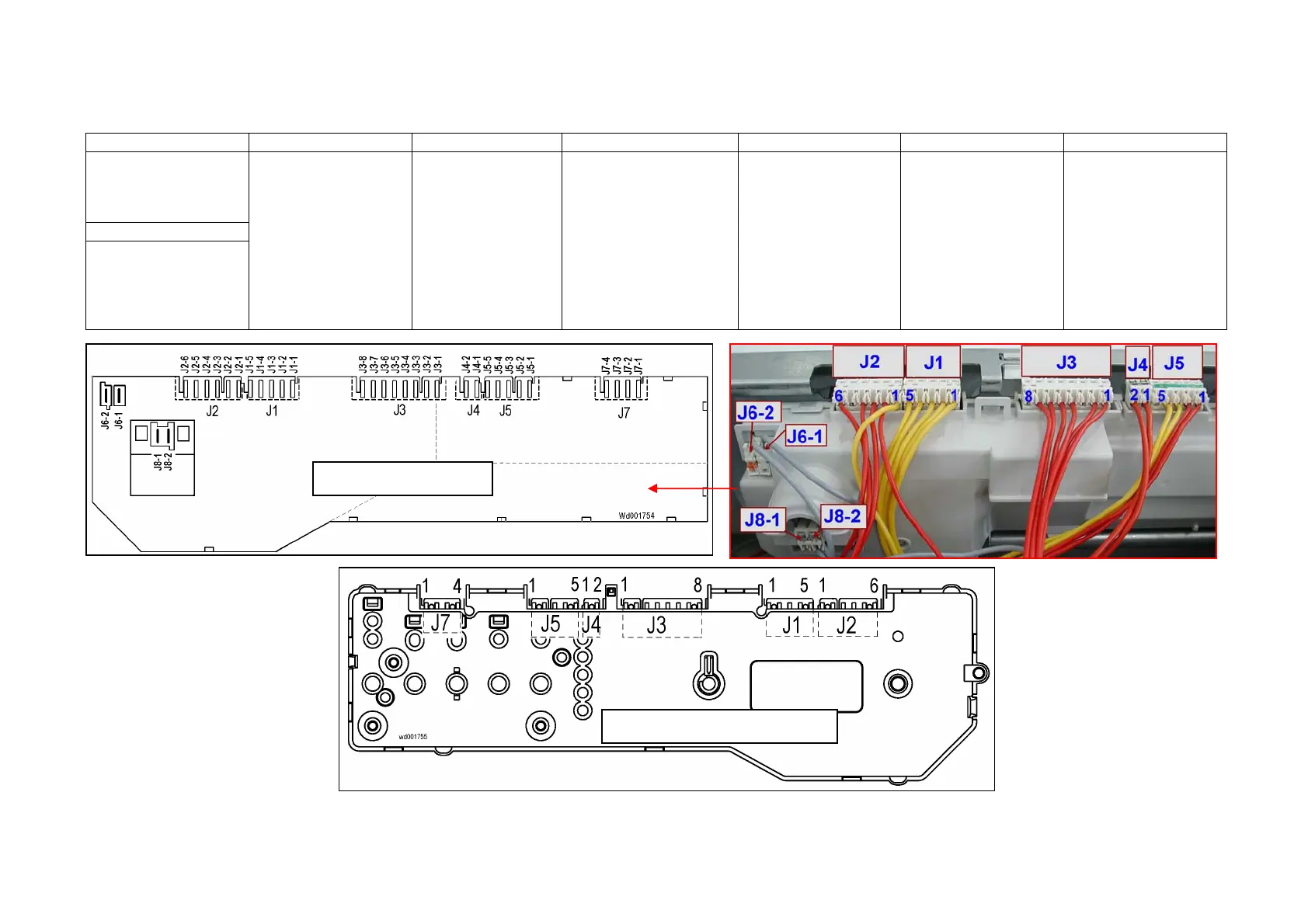

1.9 Connectors on circuit board EWM1000
J6 J2 J1 J3 J4 J5 J7
J6-1: Heating element
(relay)
J6-2: Door safety
interlock (line)
J8
J8-1 line
J8-2 line (neutral)
J2-1 Door safety interlock
(line-sensing)
J2-2 1st level(sensing)
J2-3 (Anti-overflow
pressure switch)
J2-4 Door safety interlock
(triac)
J2-5 (Door safety
interlock)
J2-6 (Anti-overflow
pressure switch)
J1-1 Motor (triac)
J1-2 Motor (stator – full
range)
J1-3 Motor (stator - 1/2
range)
J1-4 Motor (rotor)
J1-5 Motor (rotor)
J3-1 Drain pump (line)
J3-2 Solenoids (line)
J3-3 (line)
J3-4 Drain pump (triac)
J3-5 Pre-wash solenoid
(triac)
J3-6 Washing solenoid
(triac)
J3-7 Solenoids (line)
J3-8 (Not used)
J4-1 “Door closed” pilot
lamp
J4-2 “Door closed” pilot
lamp
J5-1 NTC temperature
sensor
J5-2 NTC temperature
sensor
J5-3 Motor (tachymetric
generator)
J5-4 Motor (tachymetric
generator)
J5-5 (DSP drum
positioning system)
Serial interface:
J7-1 ASY_IN
J7-2 ASY_OUT
J7-3 5V
J7-4 GND
Rear view
Front view
