Electrolux EWM3000new - Connectors on Circuit Board EWM1100

ENV06 EWM11xx EWM21xx EWM25xx/35xx
QUICK GUIDE AND APPLIANCES LIST 52/176 599 72 40-80

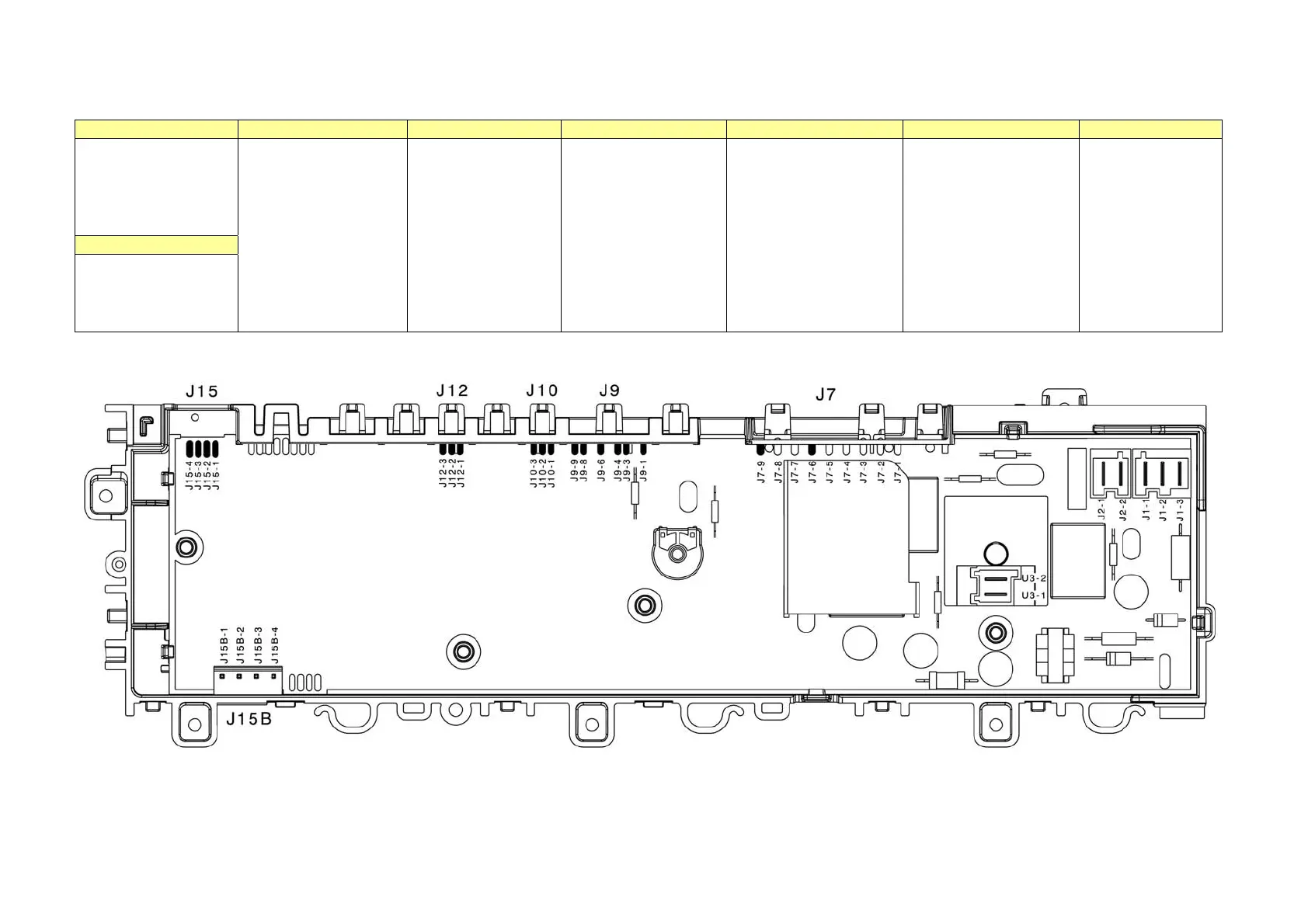

3.7 Connectors on circuit board EWM1100
J15/J15B J12 J10 J9 J7 J2 J1
Serial interface:
J15-1 ASY_IN
J15-2 ASY_OUT
J15-3 +5V
J15-4 GND
U3
U3-1 line
U3-2 line (neutral)
J12-1Drum position
sensor (sensing)
J12-2 not used
J12-3 Drum position
sensor DSP (+5V)
J10-1 Analogic
pressure switch
(+5V)
J10-2 Analogic
pressure switch
(GND)
J10-3 Analogic
pressure switch
(signal)
J9-1 Washing solenoid
(triac)
J9-3 Solenoids (line)
J9-4 Solenoids (line)
J9-6 Pre-wash solenoid
(triac)
J9-8 NTC temperature
sensor
J9-9 NTC temperature
sensor
J7-1 Drain pump (line)
J7-2 Motor (stator - ½ field)
J7-3 Motor (stator full field
J7-4 Motor (rotor)
J7-5 Motor (rotor)
J7-6 Motor (triac)
J7-7 Motor (tachometric
generator)
J7-8 Motor (tachometric
generator)
J7-9 Drain pump (triac)
J2-1 Heating element
(Relay)
J2-2 Heating element
(Line)
J1-1 Door safety
interlock (triac)
J1-2 Door safety
interlock (line-
sensing)
J1-3 Door safety
interlock (Line)
