3. InstALLAtIon InstRUCtIons
3.1 Removing transit bolts
1. Before operating the washer, remove the
transit bolts (4eA) along with the rubber.
• If the bolts are not removed, it may
cause heavy vibration, noise and
malfunction. (Fig.1)
3.2
Location of your washer
• Check location where the washer will be
installed. Make sure you have everything
necessary for correct installation.
• Do not place or store your washer below
0°C (32°F) to avoid any damage from
freezing.
• Do not place or store laundry products
on top of washer at any times.
• Install the washer on the horizontal
solid oor. If the washer is installed
on an unsuitable oor, it could make
considerable noise, vibrate severely
and cause a malfunction. If the washer
is not level, adjust leg up or down for
horizontal installation.
• Ventilation openings must not be
obstructed by carpeting when the
washer is installed on a carpeted oor.
• Leave some space (right & left : 2.5cm,
rear : 10 cm). (Fig.4)
2. Unscrew the 4 bolts with the spanner
supplied. Keep the 4 bolts and spanner
for future use. (Fig.2)
• Whenever the appliance is
transported, the transit bolts must
be retted.
3. Close holes with supplied cap holders.
(Fig.3)
• In case of built-in installation, the
distance between top of the washer and
bottom of upper plate should be at least
3mm.
1 2 3
Approx.
2.5cm
Laundry
Tub
Washer
Drain Hose

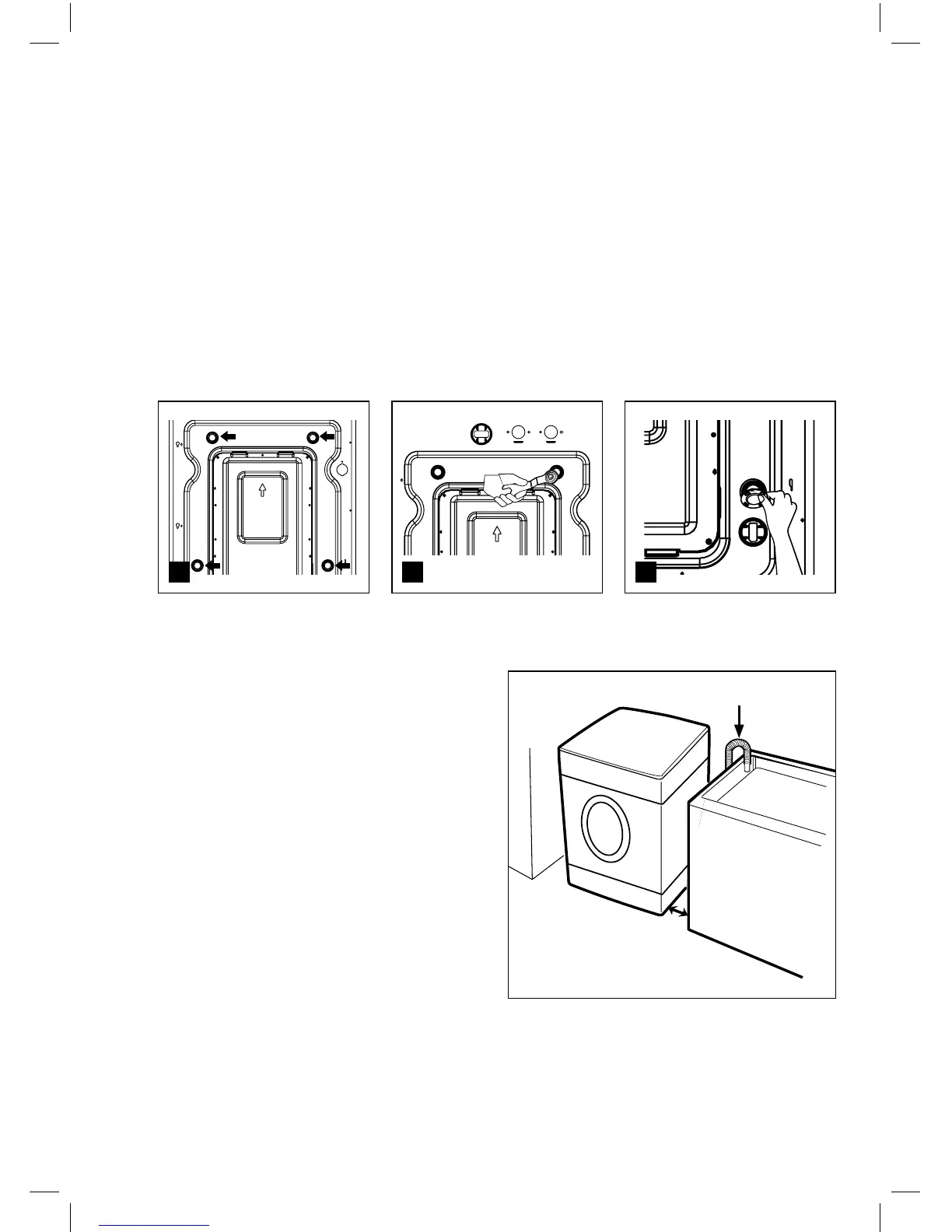

Fig. 1 Fig. 2 Fig. 3
Fig. 4
