3. InstALLAtIon InstRUCtIons (CONT’D)
3.3 Drain system

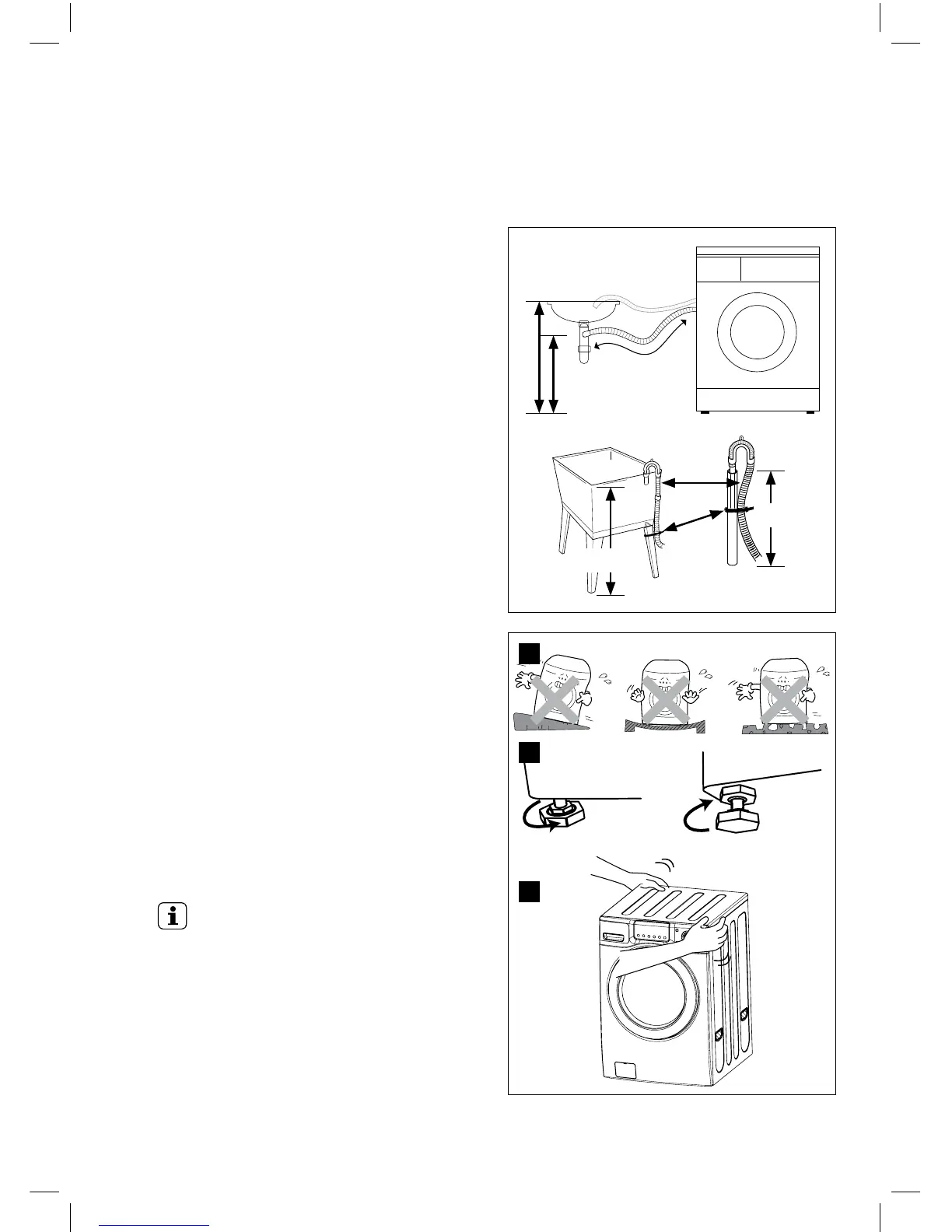

• Never forget to install drain hose before
operating your washer.
• Open the packing box, and there is a
drain hose inside the drum.
• Connect the drain hose to the drain
outlet at the back side of the washer.
• Top of laundry tub must be at least
61 cm high and no higher than
102 cm from bottom of washer. (Fig.5)
3.4
Level adjustment
1. If the washer is installed on an unsuitable
oor, it could make considerable noise,
vibrate and cause a malfunction.
2. Adjust the level of washer using
adjustable legs.
• Please check if there is any gap
between the four adjustable legs and
the oor.
• Turning adjustable legs by the
enclosed spanner, adjust the level of
washer and make it sure that there is
no swaying of washer.
• After the adjustment is nished, turn
the xing nuts up tightly so that the
washer maintains the adjustment.
3. Make it sure that the washer does not
sway when you press down the four
corners of the washer’s top plate. (Fig.6)
NOTE
There should be no swaying of washer and
all the adjustable legs should stick to the
oor closely.
Laundry
Tub
Max. 102cm
ca. 105 cm
Min. 61cm
Hose
Retailner
Tie
Strap
Max. 102cm
Min. 61cm
Max. 102cm
Min. 61cm
Adjustable
Leg
Fix
Nuts
1
2
3
Fig. 5
Fig. 6
