INSTALLATION INSTRUCTIONS | SMART LINE BOILING PAN
28 DOC N° ST0 9183-02 EN | 10-2018

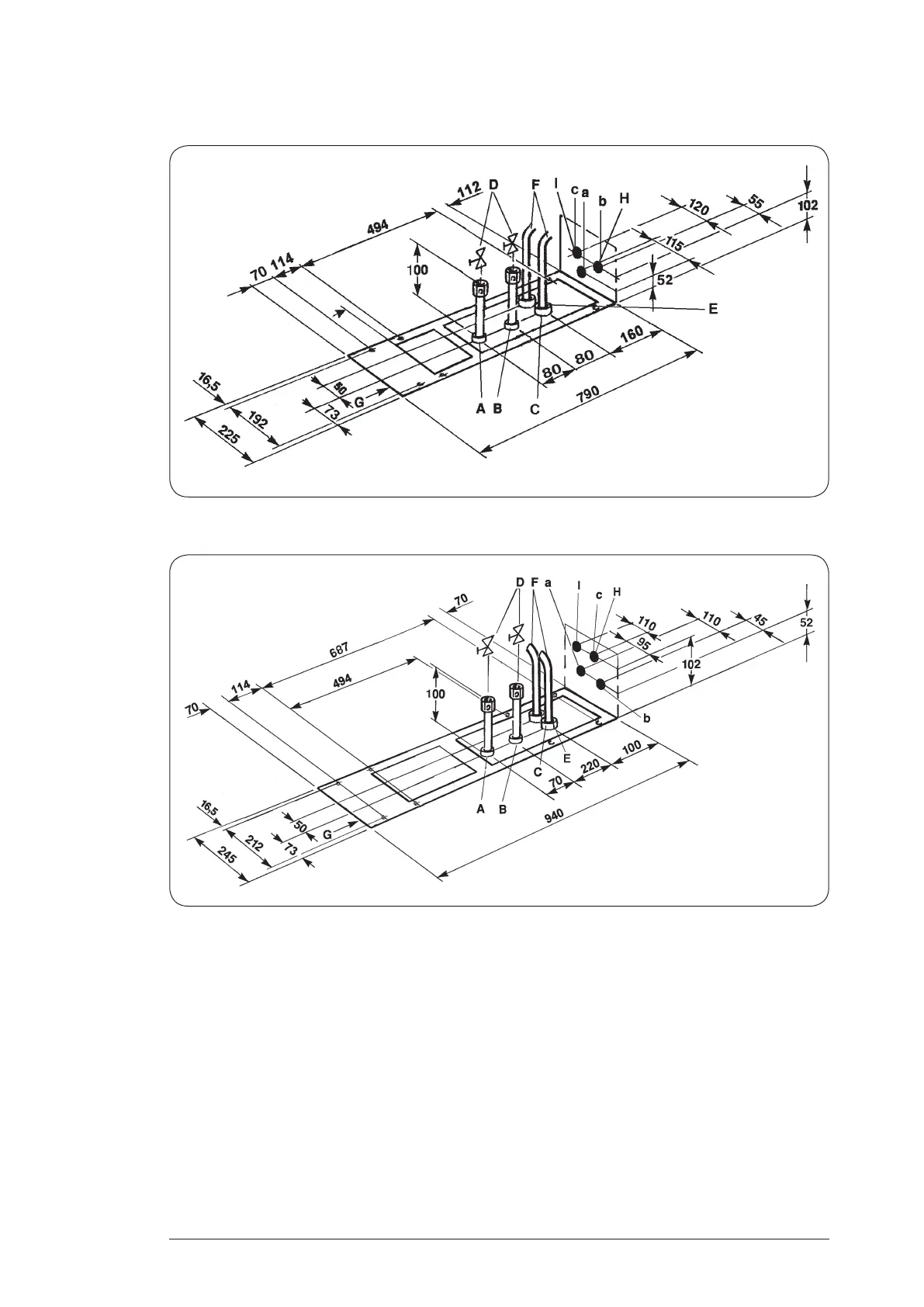

12.6.1 Right column 50L, 80L and 100
12.6.2 Right column 150L, 200L, 300L
Connections:
A Hot water: DN15 (G1/2”) internal thread
B Cold water: DN20 (G3/4”) male thread
C Electrical cable
D Shut-off valves (not supplied)
E Joints between electrical cables and pipes are
sealed
F Min. cable length 0.75 m
G Front edge of frame
H Steam connection, 110-170 kPa (1.1-1.7 bar)
Steam-heated pans: DN20 (G3/4”) Internal thread
I Condensation connection (Steam-heated pans):
DN20 (G3/4”) Internal thread
In case of alternative connection from the rear:
a Hot water: DN15 (G1/2”) internal thread
b Cold water: DN20 (G3/4”) male thread
c Electrical cable
Fig. 16
Fig. 17
