Door switch and lint filter switch
Service
manual
42
1
2
Door switch
Door switch
Description
The door switch A engages the network
voltage directly onto the control unit.
If the door is opened while the program
is running, all power-consuming units are

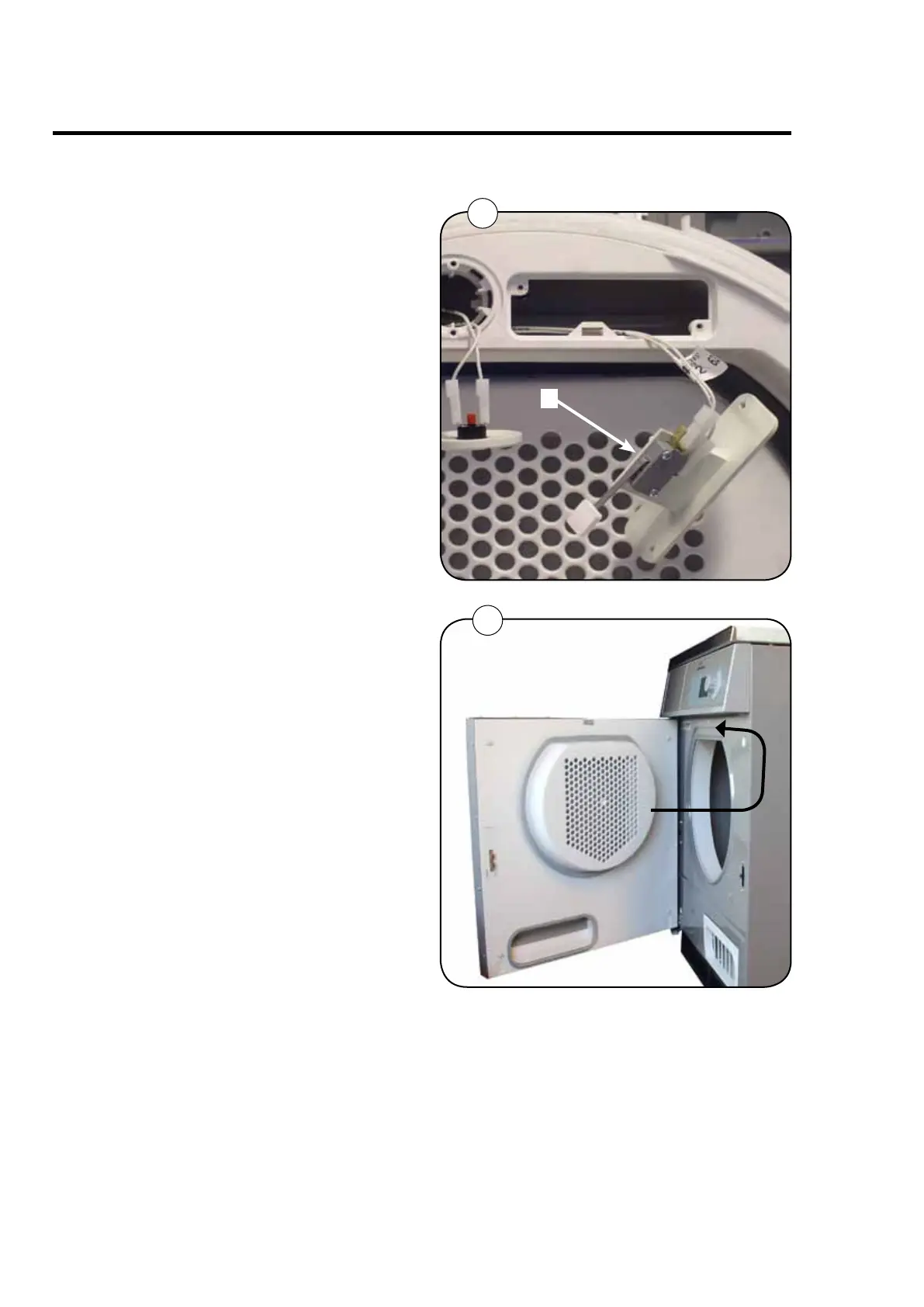

disengaged, fig. 1.
The door switch is located inside the
drum, at the rear of the front cabinet.
Replacement
Access to repairing/replacing the door
switch can be gained most easily through
the tumbler aperture, fig. 2. It is not
necessary to disassemble the tumbler.
Tip! During installation of the door switch
care should be taken not to wind any
wires around the switch.
Check of functions can be done at service
mode.
