Cabinet, door reversal
Service
manual
56

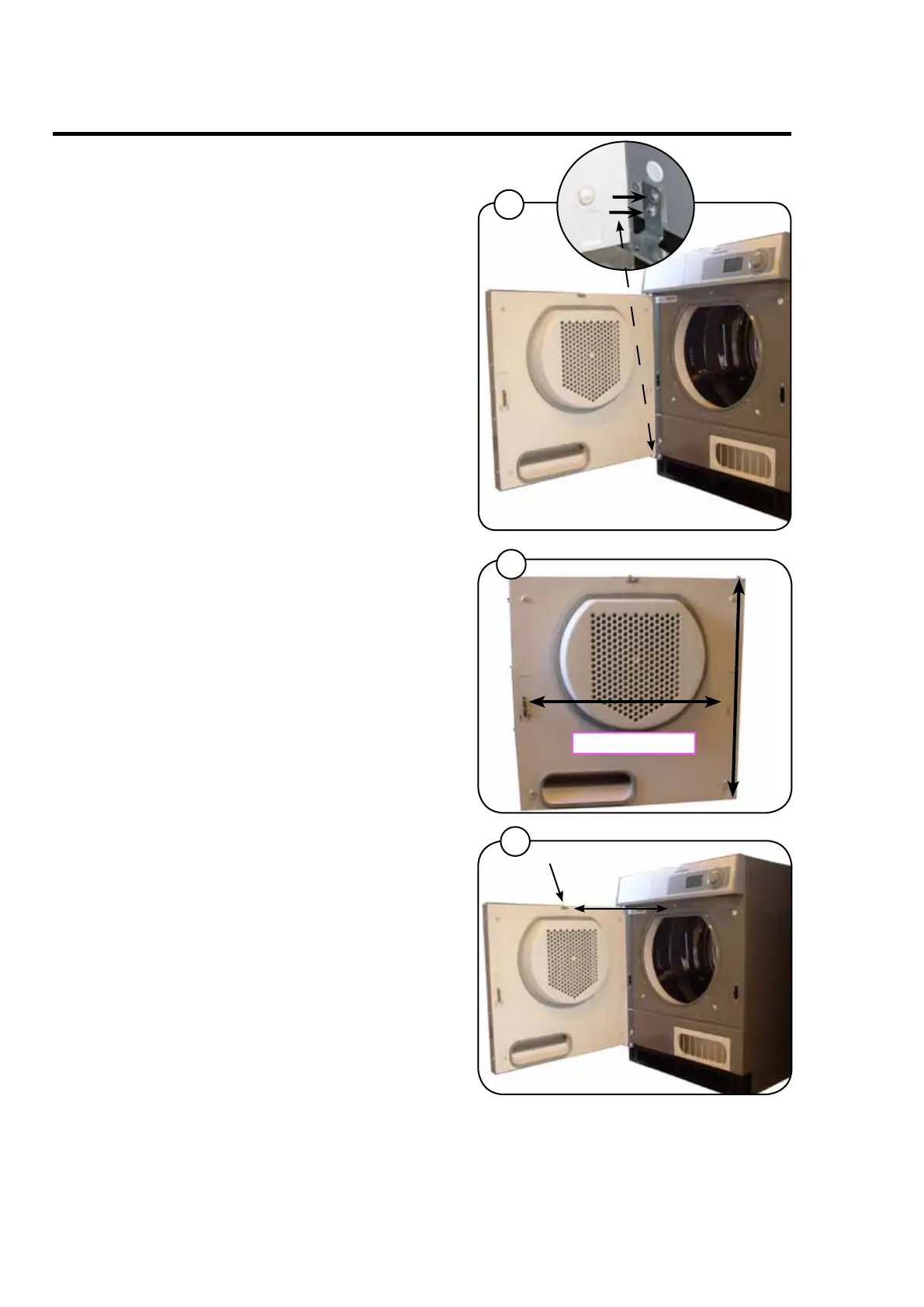

Door reversal
The door reversal illustrated below is on a
lefthinged door.
Reversing the door
• Disconnect the power to the dryer.
On the dryer
• Loosen the hinge mounting and push it down
to allow the door to be lifted off. Unscrew the
hinge mounting, g. 1.
Note! Hold the door securely while loosening
the screws.
• Unscrew the cover screws at the opposite side
and loosely attach the hinge mounting. Screw
in the cover screws where the hinge was
previously mounted.
• Lay the door on a non-abrasive base, g. 2.
• Remove the door handle. (3 Screws).
• Remove all screws (12 pcs.) from the edges.
• Remove the upper and lower pivots.
• Release the locking plates by loosening the
barb with a screwdriver.
• Lift off the back panel. Press the locking plates
out, swap them over and press into position.
• Turn the back panel 180° (half a turn).
• Assemble the door. Tighten the screws along
the edges. Fit the upper and lower pivots.
• Mount the door handle at the top.
• Mount the door on the dryer in the opposite
order as describe above.
Test the door
• Check that the door pin (A) is aligned with the
microswitch aperture, g. 3.
• Reconnect the power to the dryer.
• Check that the tumble dryer stops when the
door is opened.
A
1
2
3
Pivots
Locking plates
