Disassembling the dryer
Service
manual
18

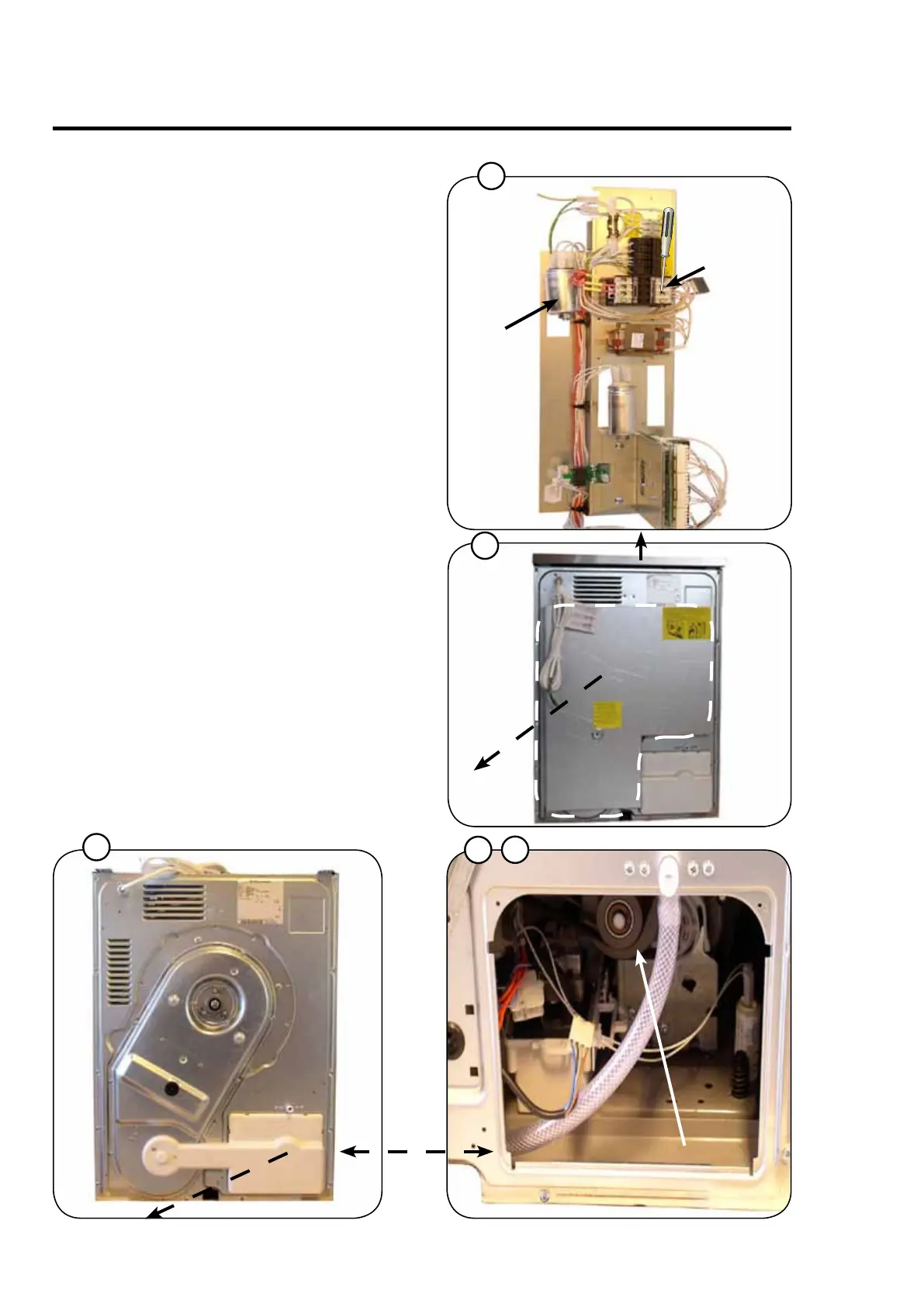

Recommended sequence
1. Disconnect the power supply.
2. Dismount the top plate and the heat shield,
fig. 2.
Warning! After disconnecting the
power, there might still be power on the
suppression capacitor. It can be discharged
by pushing down the heating contactor with
a screwdriver, fig. 1.
3. Dismount the protective screen at the air
vent (Standard tumble dryer). Dismount the
plastic cover (Condensate tumble dryer),
fig. 3.
4. Loosen the drive belt on the drum from the
motor and pull out the hose to the drain,
fig. 4.
1
2
3
3
4
Suppression
capacitor
Heating
contactor
