Disassembling the dryer
Service
manual
19
5
6
Recommended sequence

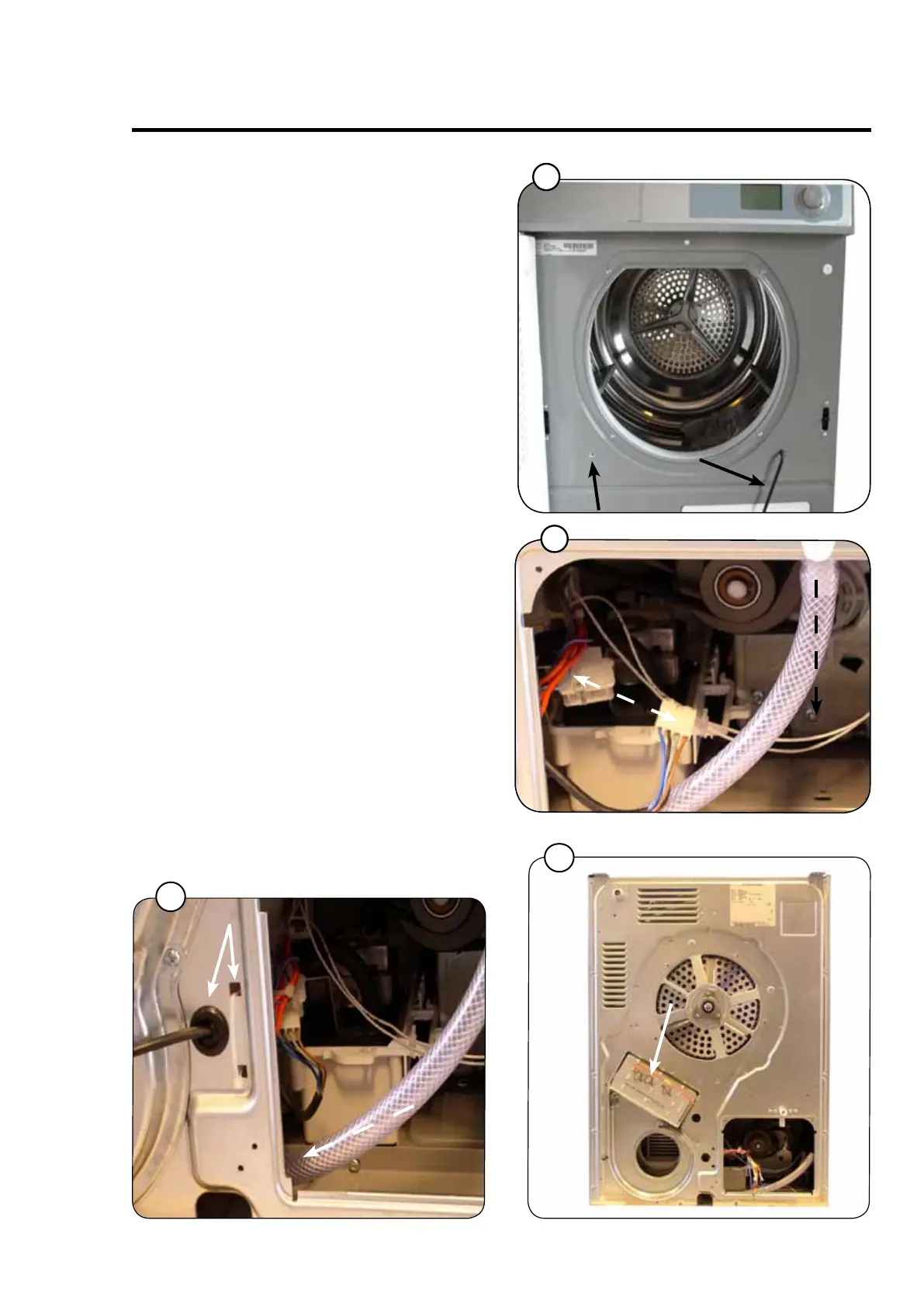

5. Release the bearing rollers: Loosen the
screws and turn the hexagon key 1/2 turn
clockwise, fig. 5.
6. Dismount the discharge branch and the
multi-plug for the fan (Condensate tumble
dryer), fig. 6.
7. Dismount the heat cover and disengaged
the heat element cables.
8. Cut the cable ties. Carefully pull the
cables in through the hole and keep the
platic ring around the cables, fig. 7 + 8.
8
7
