Disassembling the dryer
Service
manual
20
Recommended sequence

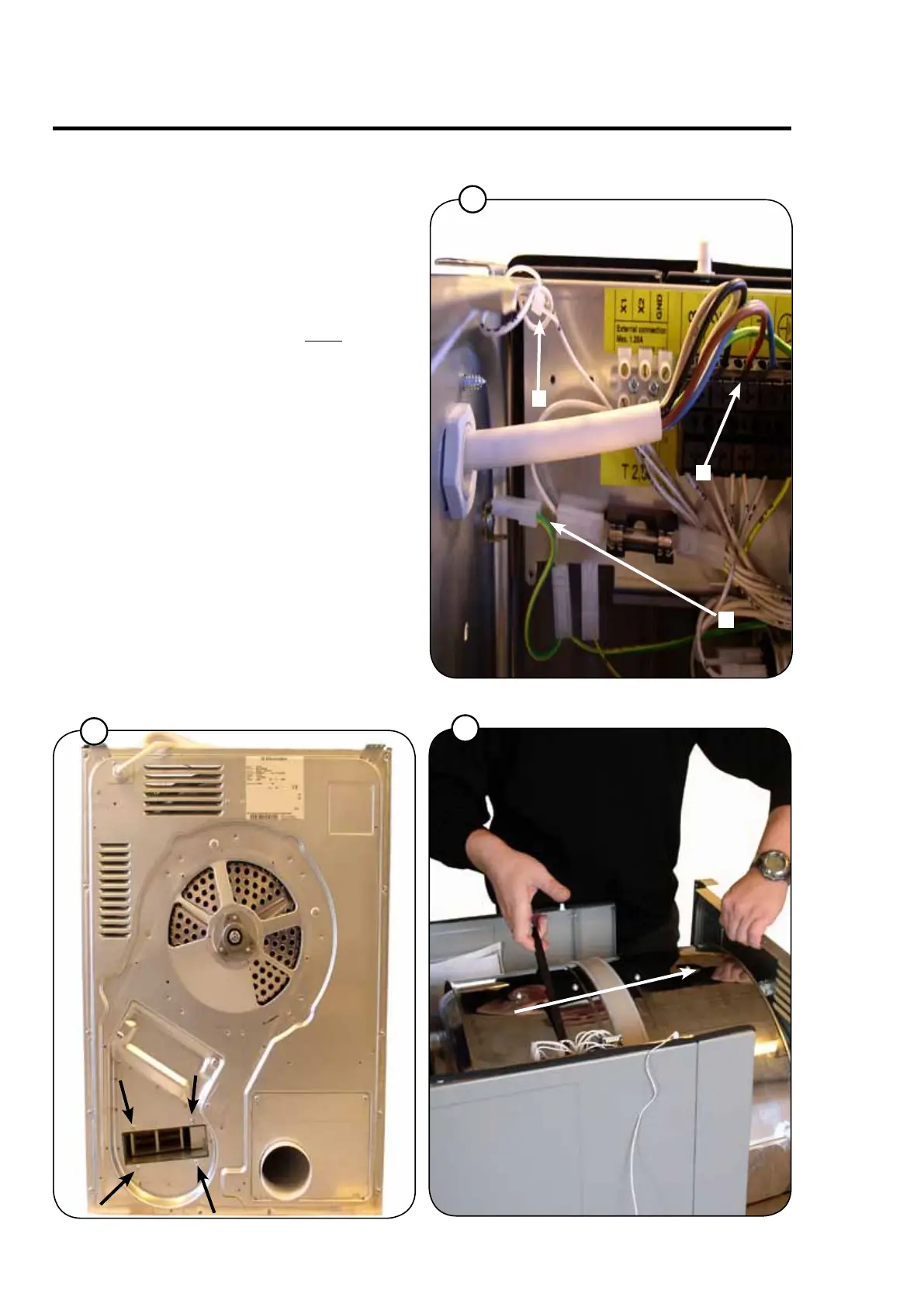

9. Remove the spade-shaped connector for
the earthing conductor (A) and the sliding
contact (B). Remove the cable from the
terminal strip (C), fig. 9.
Note! The earth conductor must be
connected again for safety.
10. Remove the four screws at the heating
element.Remove the back plate, fig. 10.
11. Lift the drum and the back plate jointly out
of the cabinet, fig. 11.
9
A
C
11
B
10
