Heating element
Codensate tumble dryer
Description
On Condensate tumble dryer the heating
element is located at the rear plate behind
the cover for the heat duct.
The elements are engaged by means of
the heat switch, which is actuated by the
electrical controls and the thermostats.
Replacement:
Condensate tumble dryer

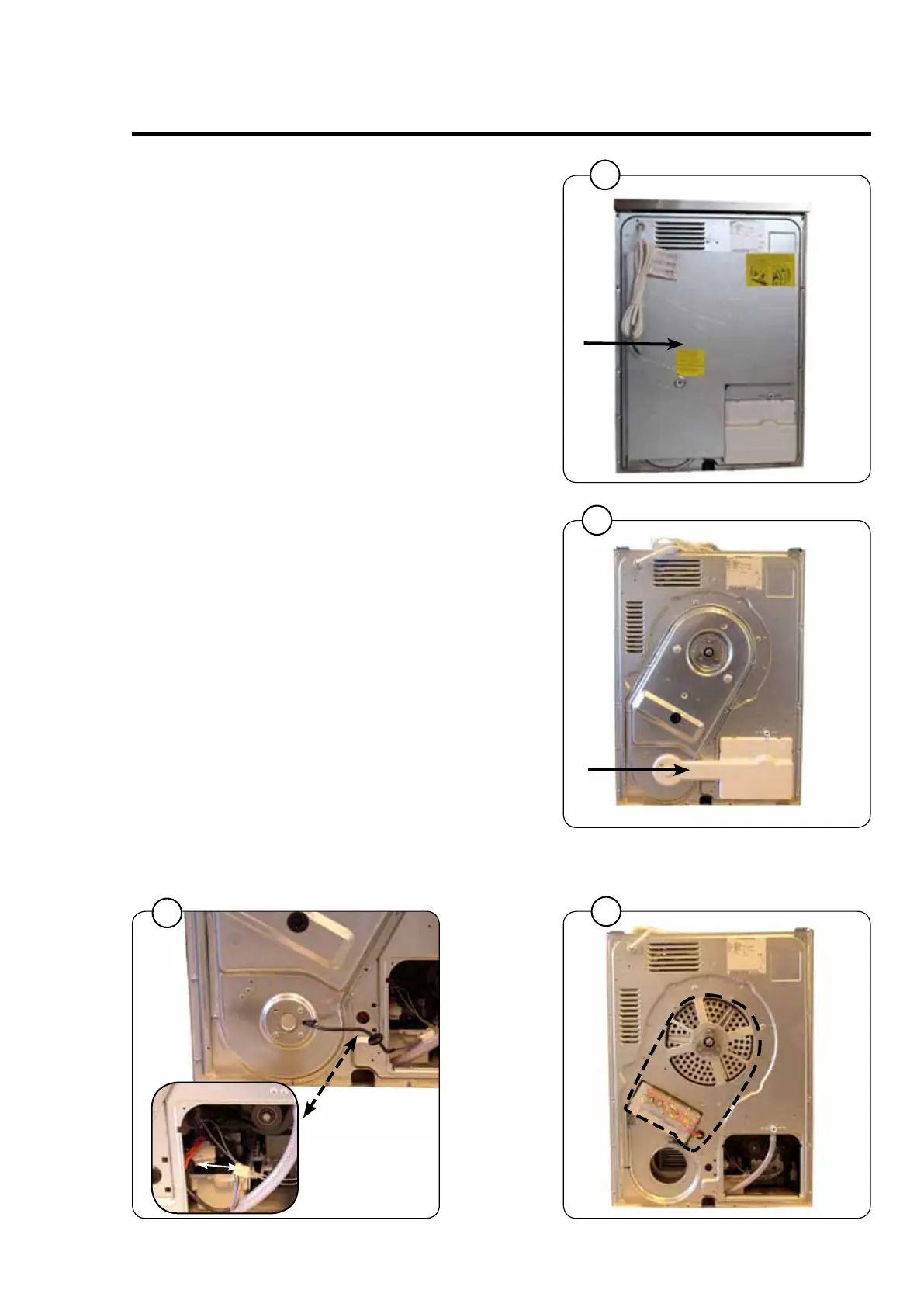

Access to replacing
the heating element is
gained by removing:
1. The heat shield.
2. The plastic screen.
3. The multi-plug.
4. The cover for the heat duct.
There are different types of heating
elements depending on voltage and effect.
To order the correct heating element, see
label on the heating element for voltage and
effect.
