A
RMC
Service
manual
58
1
2

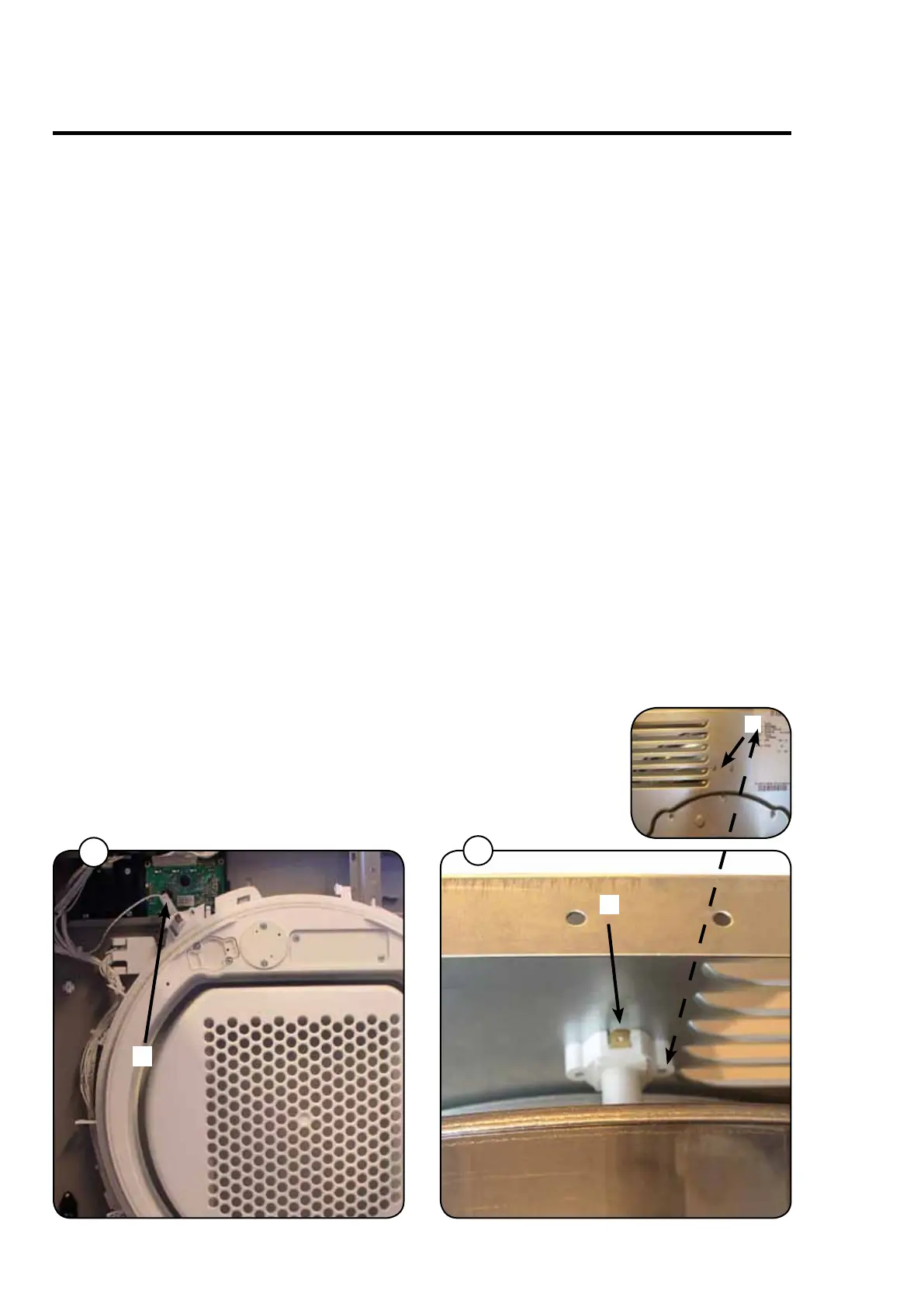

Electrodes for moisture registration
Description
The electrodes A and B (2 carbon brushes) are located just underneath the top plate.
Because of the spring-load feature, the two electrodes are in constant touch with the front and
rear parts of the drum.
Note! If the drum is to be replaced, the sliding spots where the electrodes touch the drum must
be sanded with fine-grained sanding paper to make these spots completely clean and smooth.
Replacement A
• Remove the top plate.
• Remove the spade-shaped connector, fig. 1.
• Open the lock.
• Pull out the electrode (the carbon brush).
Replacement B
• Dismount top plate.
• Dismount back cover, see section "Disassembling the dryer"
.
• Dismount spade-shaped connector, fig. 2.
• Unscrew the two screws (C) at the carbon brush house on the back plate.
• Disengage the carbon brush house, dismount the cover in the house and pull out the carbon.
B
C
A
