3.6
Connector numbers
In the error analyses in section 12 later in this manual connections P1-P23 are
mentioned.
The P-numbers are printed on the print board.
The usage of the connections appears from the wiring diagrams supplied the dryer.

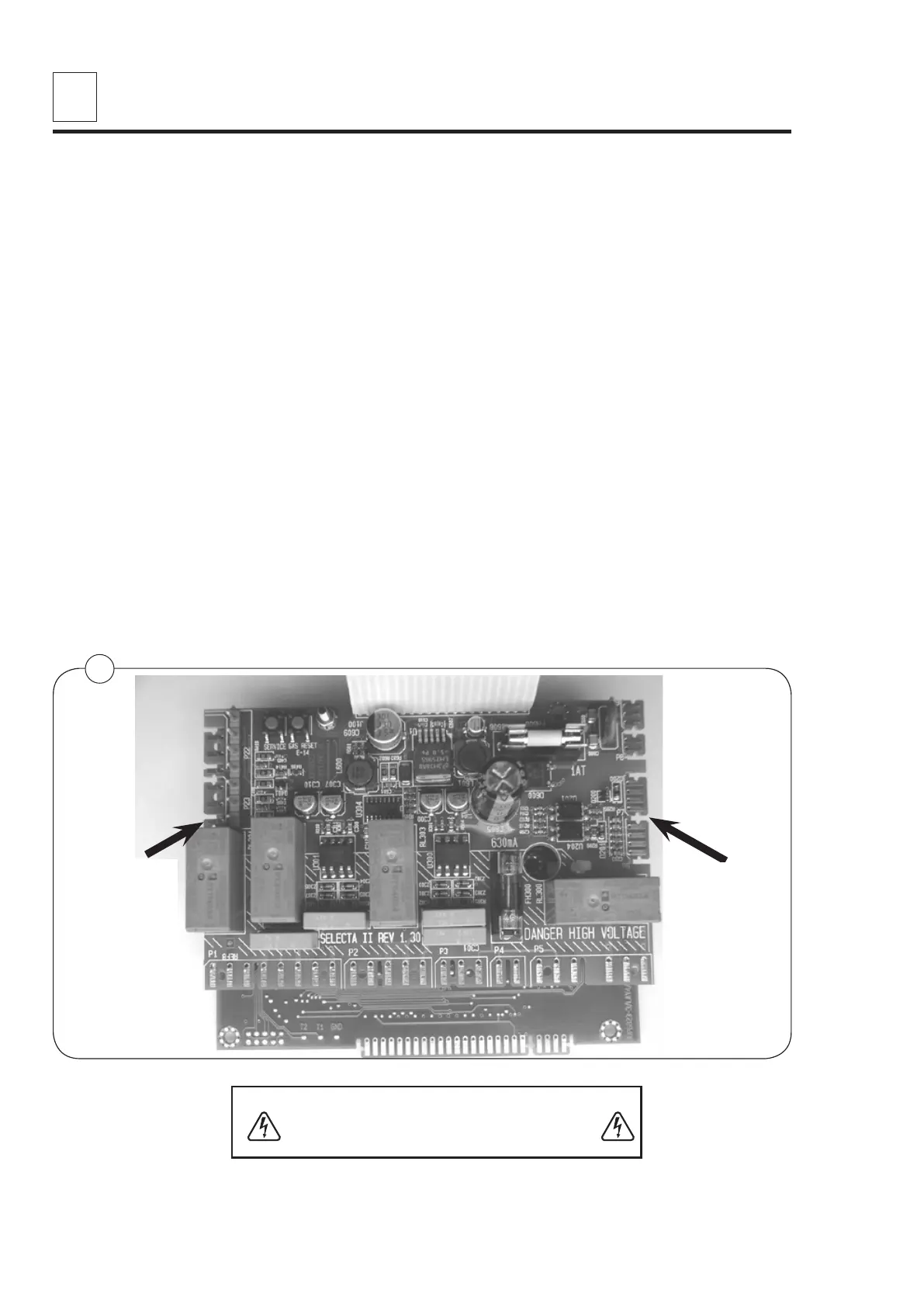

The positionings of
P1-P23 are shown next page.
High voltage on the printed circuit board
Do not touch the printed circuit board
The shaded areas indicate high voltage.
Warning!
The shaded areas indicate high voltage
See view 1
next page
See view 2
next page
