Conversion instructions - T4530 only:
1. Disconnect the power to the dryer.
2. Open the operating panel.
3. Remove nozzle (1), see Fig. 6.
4. Mount the supplied nozzle (1), see Fig. 2.
5. Loosen the measuring branch screw (2) 1/4 turn; connect a manometer to the measuring
branch (2), see Fig. 6.
6. Connect the power and select a programme with heat.
7. Start the dryer.
8. See nozzle pressure in Fig. 2 - set the nozzle pressure on setting screw (4) under cover
screw (3), see Fig. 6.
9. Check that the gas flame burns evenly and has a bluish colour.
10. Mount the cover screw (3), see Fig. 6.
11. Close the operating panel.
NOTE: After the conversion has been carried out, the enclosed sign with the new gas type
printed on it
must be affixed to the dryer data plate, see instructions later.
4 + 3

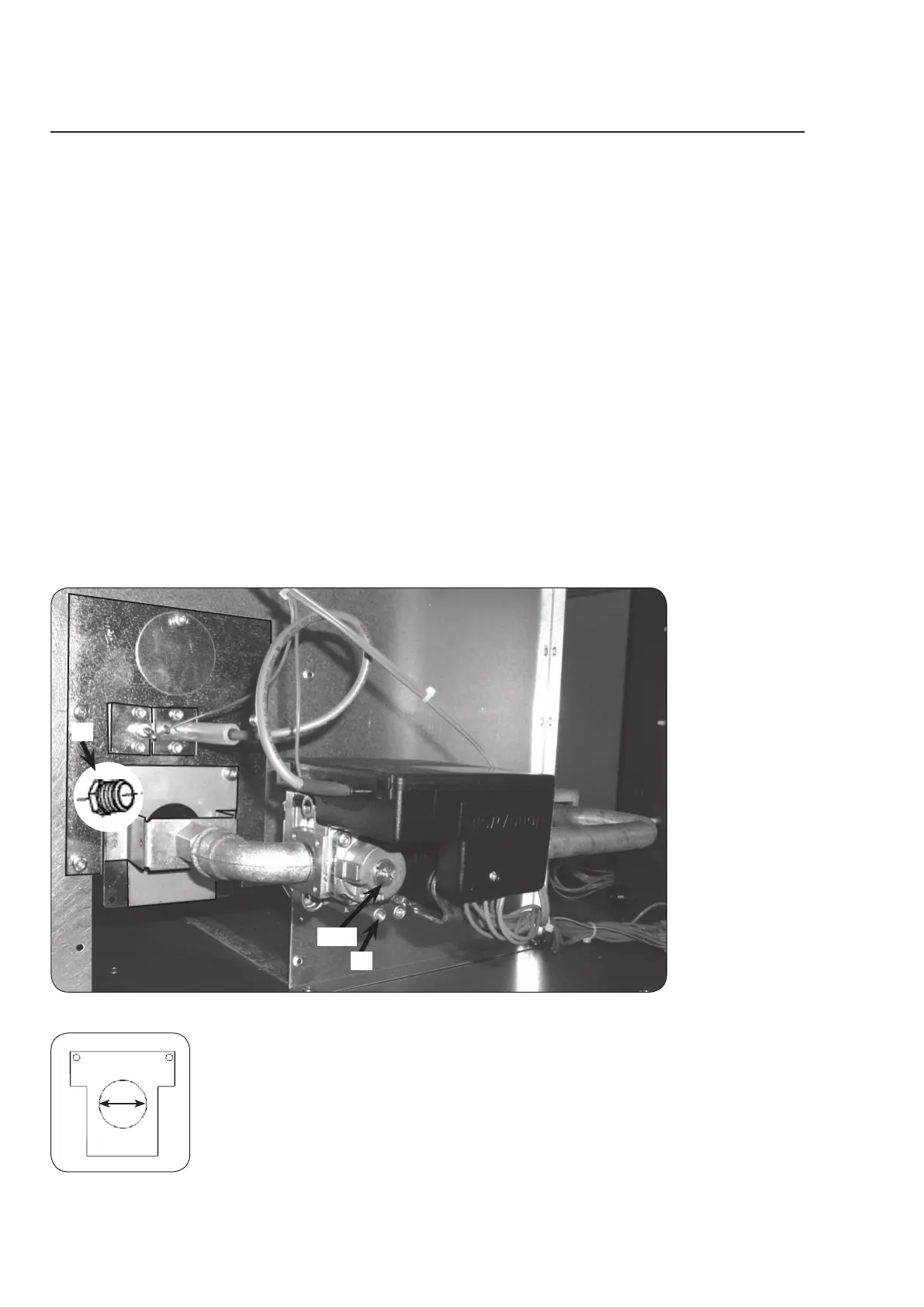

Fig. 6
