Conversion instructions - T4290 only:
1. Disconnect the power to the dryer.
2. Open the operating panel.

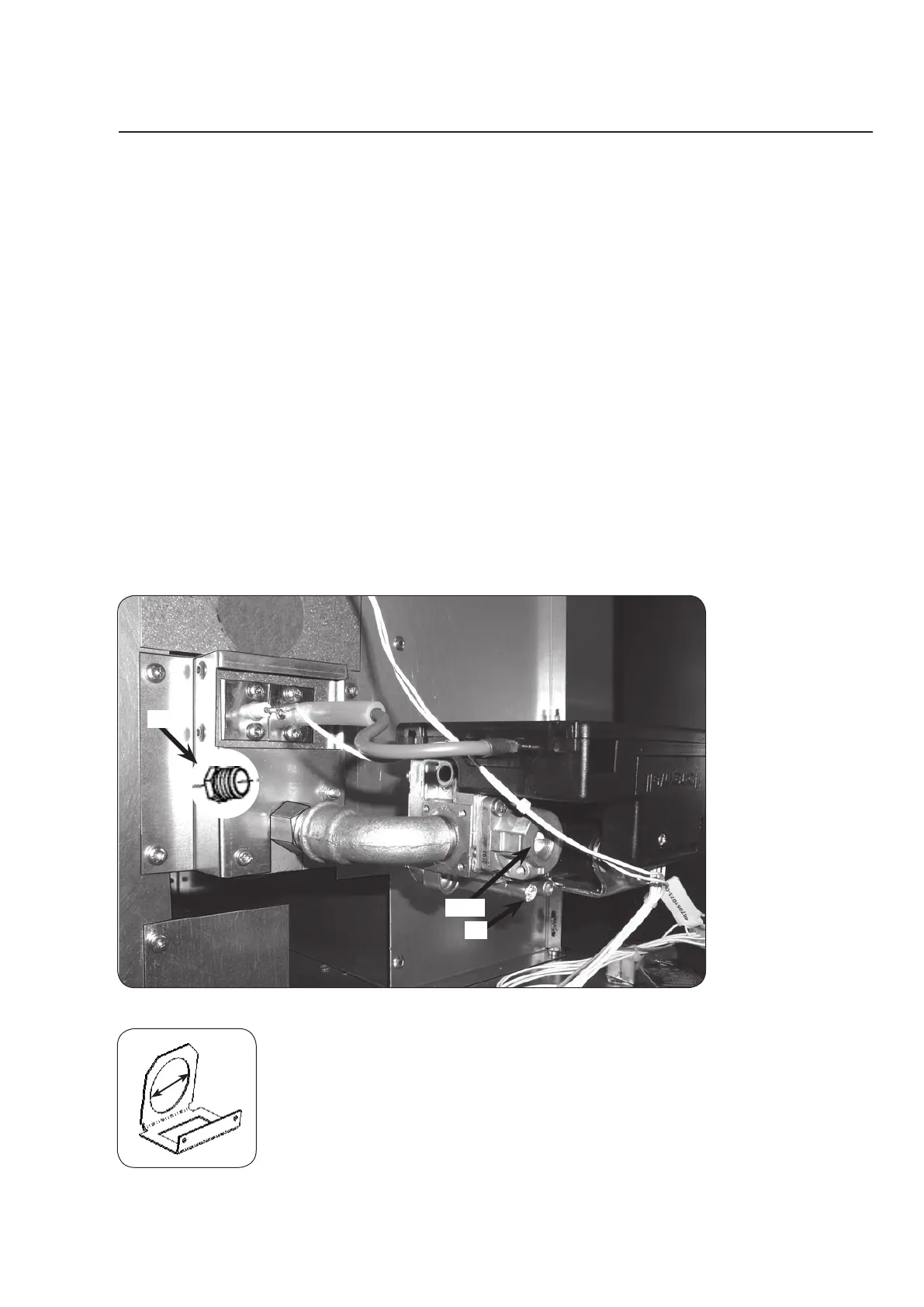

3. Remove nozzle (1), see Fig. 4.
4. If converting to LPG also remove the air reducing plate, see Fig. 5.
5. Mount the enclosed nozzle (1), see Fig. 1.
6. Loosen the measuring branch screw (2) 1/4 turn; connect a manometer to the measuring
branch (2), see Fig. 4.
7. Connect the power and select a programme with heat.
8. Start the dryer.
9. See nozzle pressure in table Fig. 1 - set the nozzle pressure on setting screw (4) under
cover screw (3), see Fig. 4.
10. Check that the gas flame burns evenly and has a bluish colour.
11. Mount the cover screw (3), see Fig. 4.
12. Close the operating panel.
NOTE: After the conversion has been carried out, the enclosed sign with the new gas type
printed on it
must be affixed to the dryer data plate, see instructions later.
