Electrolux WD4130 - Page 34

34

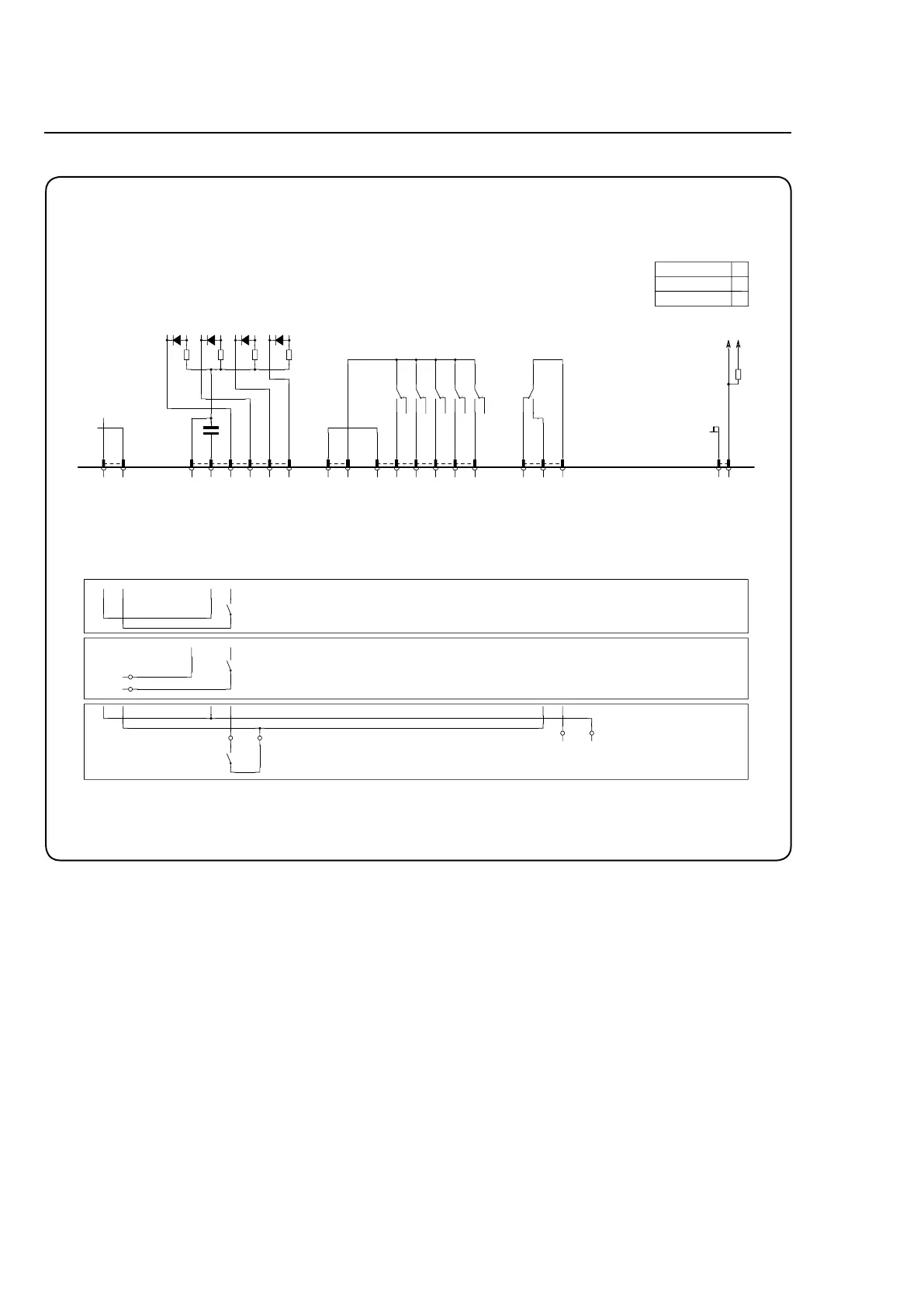

22F
Con 111
1 2
Con 110
1 2 3 4 5 6
Con 108
1 2
Con 109
1 2 3 4 5 6
RE106 RE105 RE104 RE103 RE102
Con 107
1 2 3
RE101
Address
Inp
Con 115
Function I/O:s
PTD5
Type of I/O card
+5V
Start permitted
Central booking / payment
EBS / PCB / Camping
230V
0V
+24V
24V
Start permitted
Central booking / payment
EBS / PCB / Camping
Neutral Line
Com. 24V(-)
Com. 100 -240V
Blocking of start Heating pause Liq. det. empty Temporary pause Common outputs Power for outputs
Common Liquid det. sign 1 Liquid det. sign 2 Liquid det. sign 3 Liquid det. sign 4 Liquid det. sign 5 Program run NC Program run NO
2
2
F
Com. 24V(-)
Start permitted
Central payment
Plexa Compact
Status machine
M1 M1
S1 S1
Com. Com. Input 1 Input 2 Input 3 Input 4 Output 1 Output 2 Output 3 Output 4 Output 5 Output 6 NC Output 6 NO
6944
• Thecentralpaymentorbookingsystemshalltransmitanactive(high)signalto
the washing machine once permission has been granted to start the machine.
The signal must remain active (high) until the machine starts. A feedback signal
will be present on connection 18 and remain active (high) whilst the wash
programisrunning.Thefeedbacksignalispoweredby230Vfromconnection
19orexternal24V.
Installation
