35
22H
7016

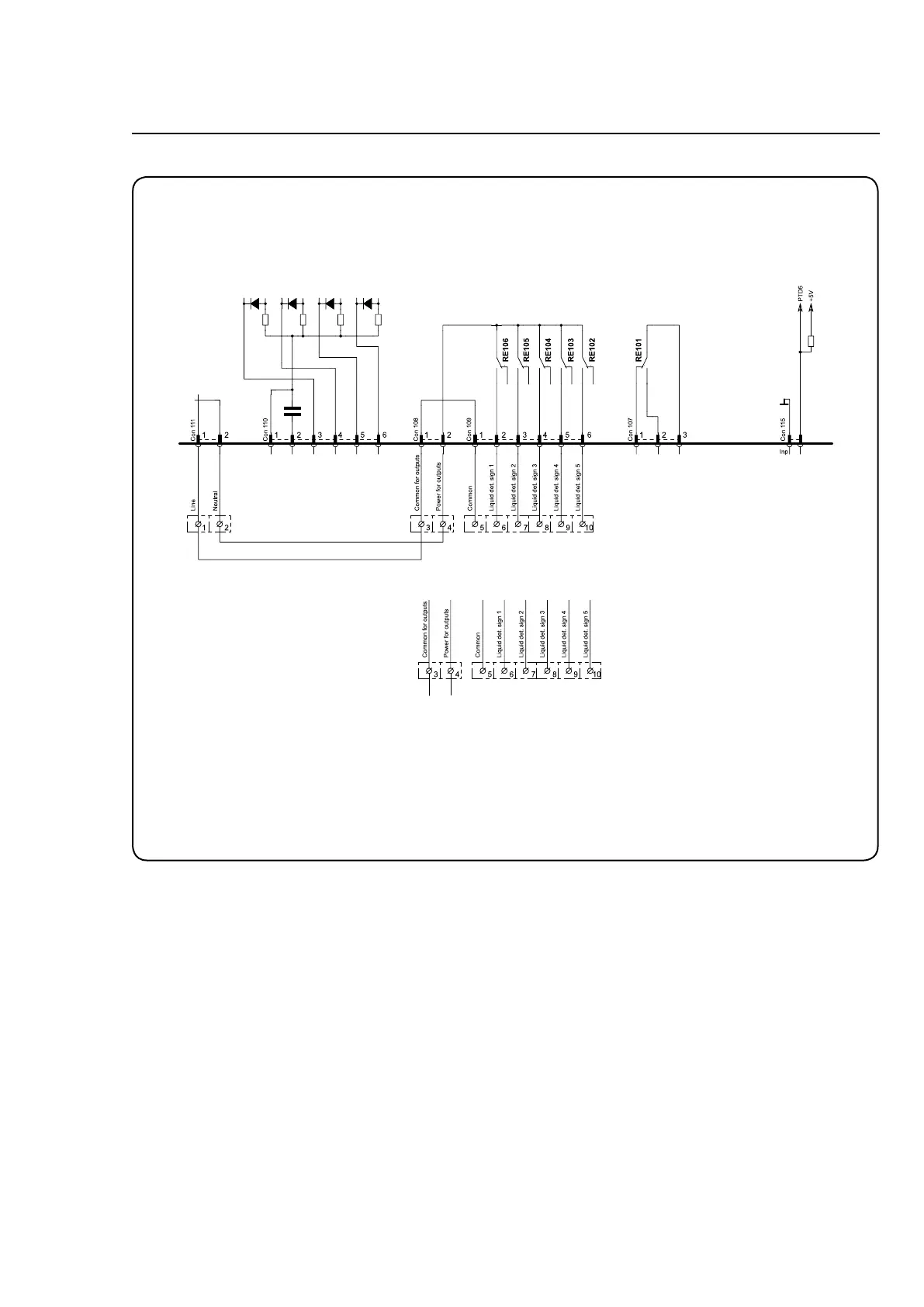

• Connectexternalpowersupply(e.g.24VDC)forpumpsto3and4.
If an internal power supply (from the washing machine) is being used, it can be
taken from 1 and connected to 3 and from 2 and connected to 4.
Installation
External power supply
