42
Installation manual
9 Supplies
Take the box placed inside of the inner drum.

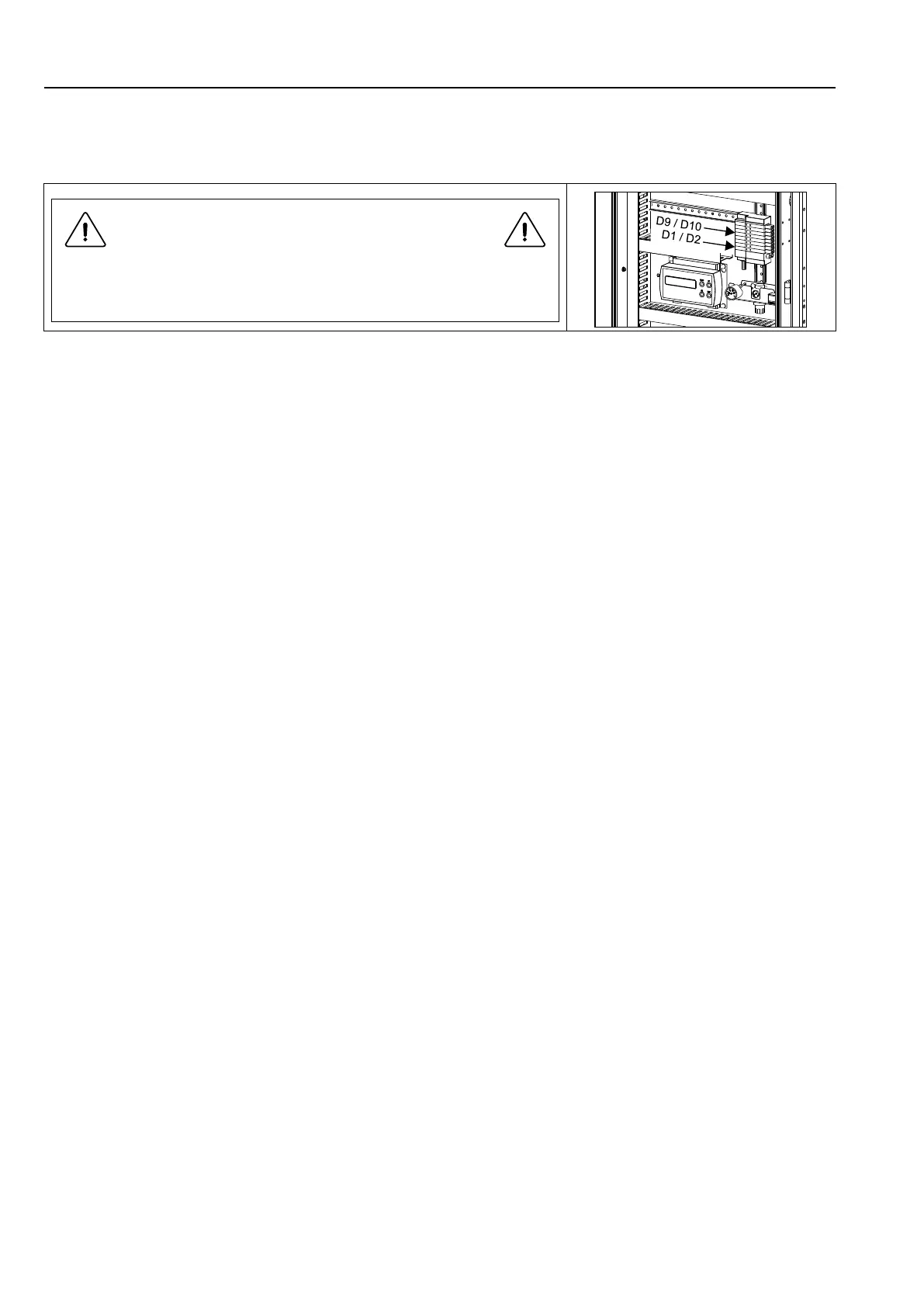

Important
you must connect the compressed air to unlock the loading door.Then
push on the orange button of the D9/D10 distribution unit in the electric
cabinet.So you can access in the drum.
1. Accessories delivered with each machine
• 1 instruction handbook + converter handbook + spare parts catalogue + 2 electrical schematics +1 mainte-
nance poster
• 3 keys for casings
• 2 or 3 stainless steel flexible pipes 3/4″ + 4 or 6 fibre seals
• 2 or 3 waters filters 1″
• 2 or 3 male nipples 1″
• 1 connection bellow ⌀ 110 + 1 collar
• 1 hose ⌀ 110 mm + 1 collar for drain
• 1 connection nozzle
• 4 fixing dowels
• 4 bolsters + 4 wedges (see explanation for the setting)
2. Accessories delivered with each steam heating machine
• 1 steam electrovalve
• 1 steam flexible
• 1 steam filter
• 1 pipe union
3. Accessories delivered with each gas heating machine
• 4 meters blue flexible pipes
• 2 pipes ⌀ 125 mm (5″), length 500 mm (20″) to be connect at the chimney
• 1 T-square pipe ⌀ 125 mm (5″) and an anti-bursting chimney regulator to be connected over the gas
exchanger
• 1 draught accelerator to extract the exhaust of burn gas, to be connected at the chimney (in 3 parts)
• 4 collars ⌀ 40–60
4. Accessories delivered with each barrier washers
• 1 rubber seal + aluminium extruded sections + 40 screws
• 4 flange safety locks (machines with weighing equipment)
• 1 opening inner drum lever (with manual openning door)
